Omron CQM1
Omron CQM1-CPU41-EV1 CPU Unit Condition: Used, Fully Tested The Omron CQM1-CPU41-EV1 is a central processing unit for the SYSMAC CQM1 series programmable logic controllers. Equipped with built-in inputs, an RS-232C communication port, and ample memory capacity, this CPU is designed to manage complex industrial automation processes efficiently. This unit has been rigorously tested to ensure full functionality and reliable operation. Technical Specifications: Manufacturer: Omron Model Number: CQM1-CPU41-EV1 Product Type: CPU Unit Max. I/O Capacity: Up to 256 points Program Capacity: 7.2 K words Data Memory: 6 K words Built-in Inputs: 16 DC input points Communication: Built-in RS-232C interface and peripheral portC289
Omron CQM1-TC001 Temperature Control Unit for J K ThermocoupleFully TestedNPNMissing plastic cover
Omron CQM1H-ABB21 2-channel Absolute Encoder Interface
Omron CQM1-OD214 Transistor Output Module Condition: Used, Fully Tested The Omron CQM1-OD214 is a 16-point PNP transistor output module designed for CQM1 series programmable logic controllers. This unit has been rigorously tested to ensure full functionality and reliable operation for your industrial automation and control needs. Technical Specifications: Manufacturer: Omron Model Number: CQM1-OD214 Output Type: Transistor (PNP) Number of Outputs: 16 points (1 common circuit) Operating Voltage: 5 to 24 VDC Max. Switching Capacity: 300 mA (0.3 A) per point at 26.4 VDC Response Time: 0.1 ms max. (ON Delay) / 0.4 ms max. (OFF Delay) Termination: Screw terminal
Omron CQM1-OD213 Transistor Output Module 32pts NPNNo. of Outputs : 32 points (32 points/common, 1 circuit)Max. Switching Capacity : 16 mA at 4.5 VDC to 100 mA at 26.4 V

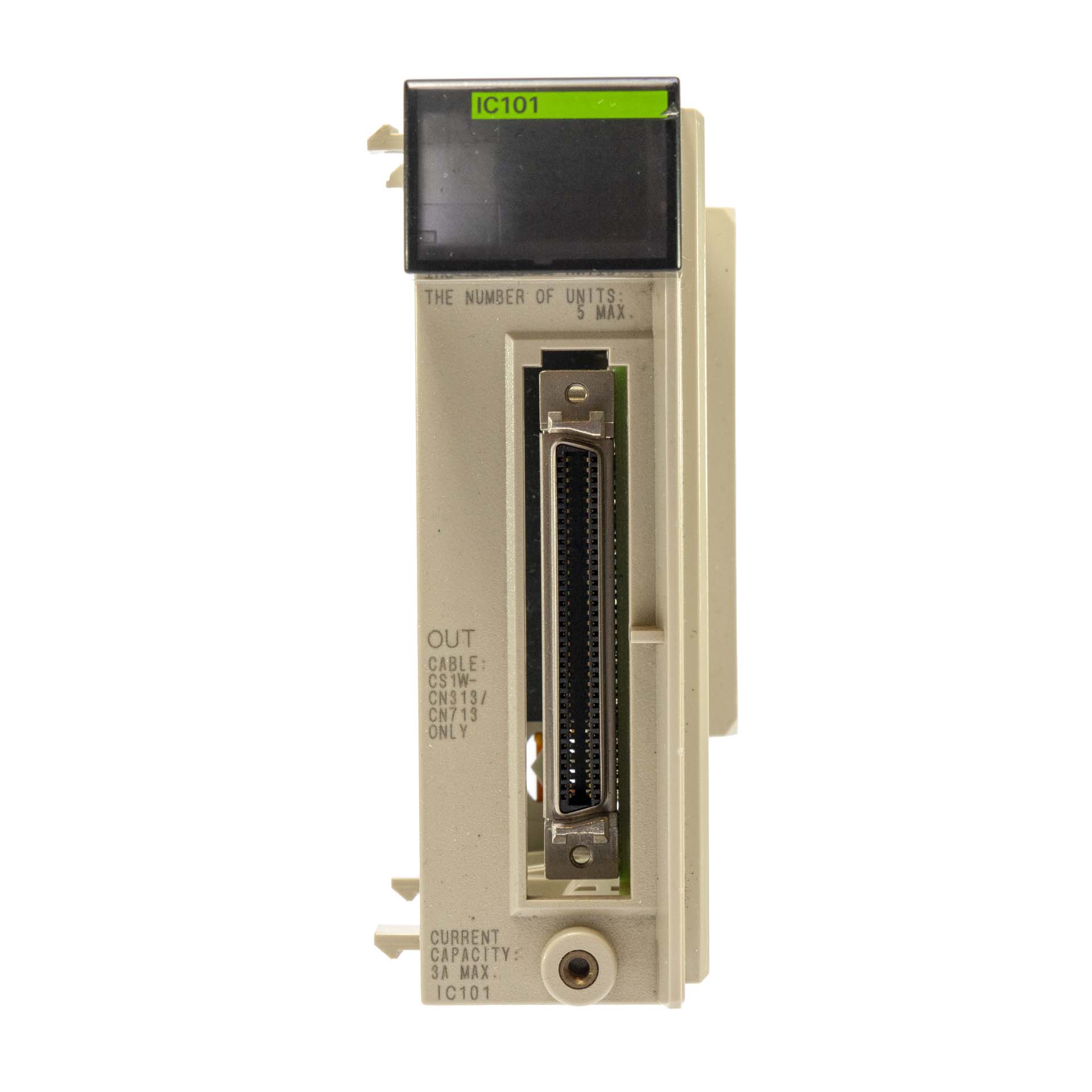

Omron CQM1H-IC101 I/O Control UnitSlight plastic discoloration

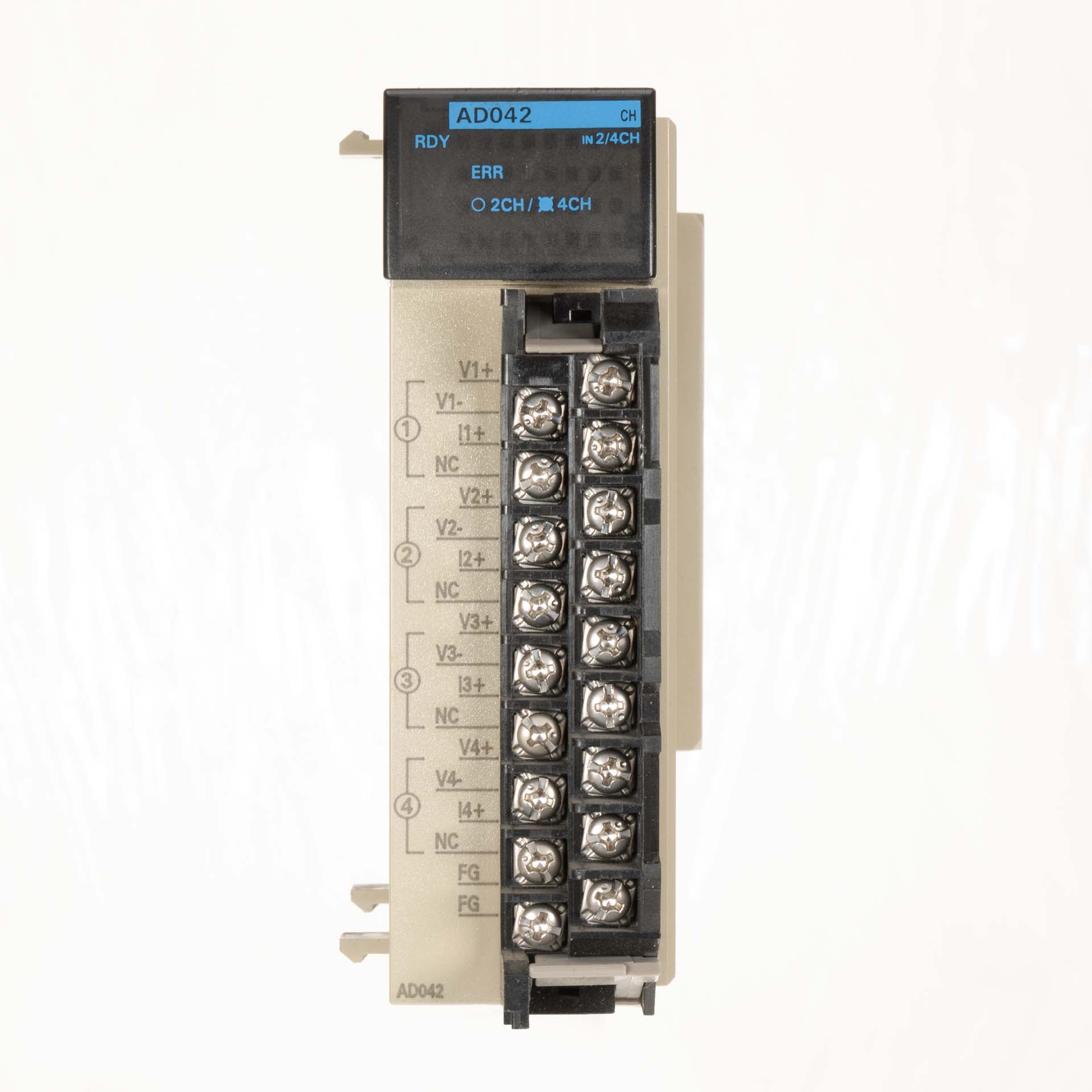

OMRON CQM1-AD042 Analog input unitTestedNo Plastic CoverSlight Discoloration, some dust SpecificationsNumber of inputs : 4Input ranges : -10 V to +10 V, 0 V to 10 V, 0 V to 5 V, 0 mA to 20 mAResolution : 12 bitsAccuracy : 25 °C 0.5%, 0 to 55 °C 1 %Conversion speed : 1.2 ms / channelInsulation : 500 V AC between output and PLC busCurrent consumption : 170 mA at 5 V DCInput type : DifferentialInput impedance : voltage 1 MW, current 250 WPower supply : internal DC/DC converter
Omron CQM1-ID212 24-VDC Input UnitInput Voltage 24 VDC +10%/--15%Input Impedance 3.9 kΩInput Current 6 mA typical (at 24 VDC)ON Voltage 14.4 VDC min.OFF Voltage 5.0 VDC max.No. of Inputs 16 points (16 points/common, 1 circuit)Missing Plastic Lid
Compobus/S Master Unit for CQM1A maximum of 128 I/O points available (Possible to set 32, 64, or 128 I/O points).Connects to a maximum of 16/32 Slaves.Communications cycle time: 0.5 ms max. (at baudrate 750 kbps).Communications distance: Extended to 500 m max. (at baud rate 93.75 kbps).Connection to Analog Terminals now supported

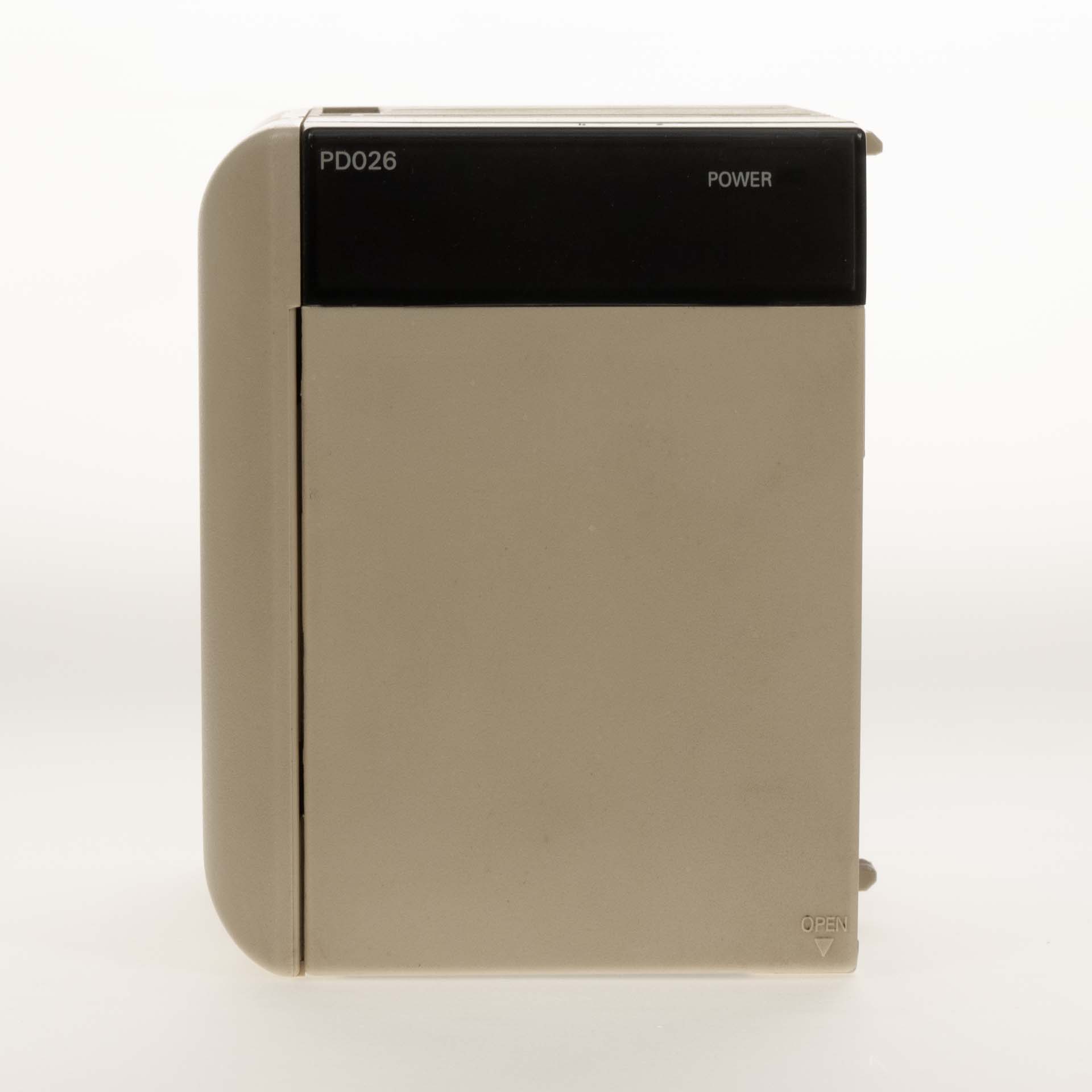

Omron CQM1-PD026 24V DC 50W Power Supply for CQM1 Series PLCCosmetically "B"Supply voltage 24VOperating voltage range 20 to 28 VDC Power consumption 50W Max Inrush current 30A Max Output capacity 5 VDC: 6 A (30 W)

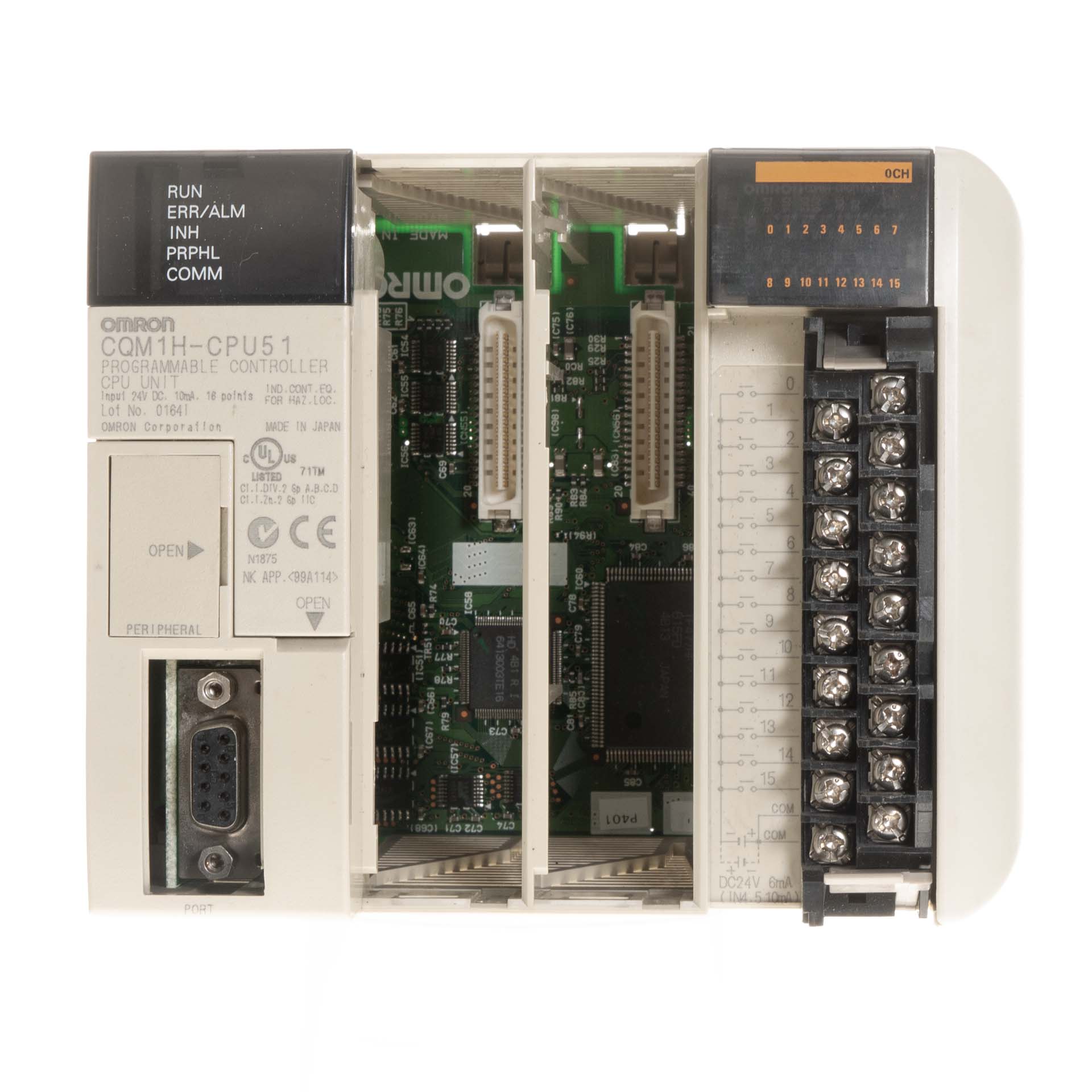

Omron CQM1H-CPU51 PLC CPU UnitTestedNo CoversThe CQM1H’s rack-less modular design lets you customize your control system by adding “inner boards” for advanced functions, as well as specialized I/O and communications modules. CQM1H offers the most flexibility of all PLC systems in its class.4 different base CPUs to choose from; 16 DC inputs built in; expands up to 512 pointsNo separate backplane requiredInner Boards allow “customized” configuration of the CPUSerial communications inner board supports protocol macro feature for communication with third-party serial devicesSupports all existing and new CQM1 I/O and specialized I/O modulesOptional memory cassettes allow backup of sensitive data, provides a real-time clockControllerLink network transmits 8 kword data packets at up to 2 Mbps; 32 nodesAdvanced instruction set includes PID, floating pointCompoBus/S, SYSMAC BUS and AS-interface masters support remote I/O7.2 kwords of program memory
Omron CQM1H-SCB41 Serial Communications Board One RS-232 portOne RS-422A/485 port The Serial Communications Board is an Inner Board for the CQM1H-series PCs. One Board can be installed in Inner Board slot 1 of a CQM1H-series CPU Unit. The Board cannot be installed in slot 2. The Board provides two serial communications ports for connecting host computers, Programmable Terminals (PTs), general-purpose external devices, and Programming Devices (excluding Programming Consoles). This makes it possible to easily increase the number of serial communications ports for a CQM1H-series PC. The Serial Communications Board is an option that can be mounted in the CPU Unit to increase the number of serial ports without using an I/O slot. It supports protocol macros (which are not supported by the ports built into the CPU Units), allowing easy connection to general-purpose devices that have a serial port. Both RS-232C and RS-422A/485 ports are provided. The RS-422A/485 port enables 1:N connections to general-purpose external devices without going through Converting Link Adapters. The 1:N connections can be used with protocol macros or 1:N-mode NT Links.

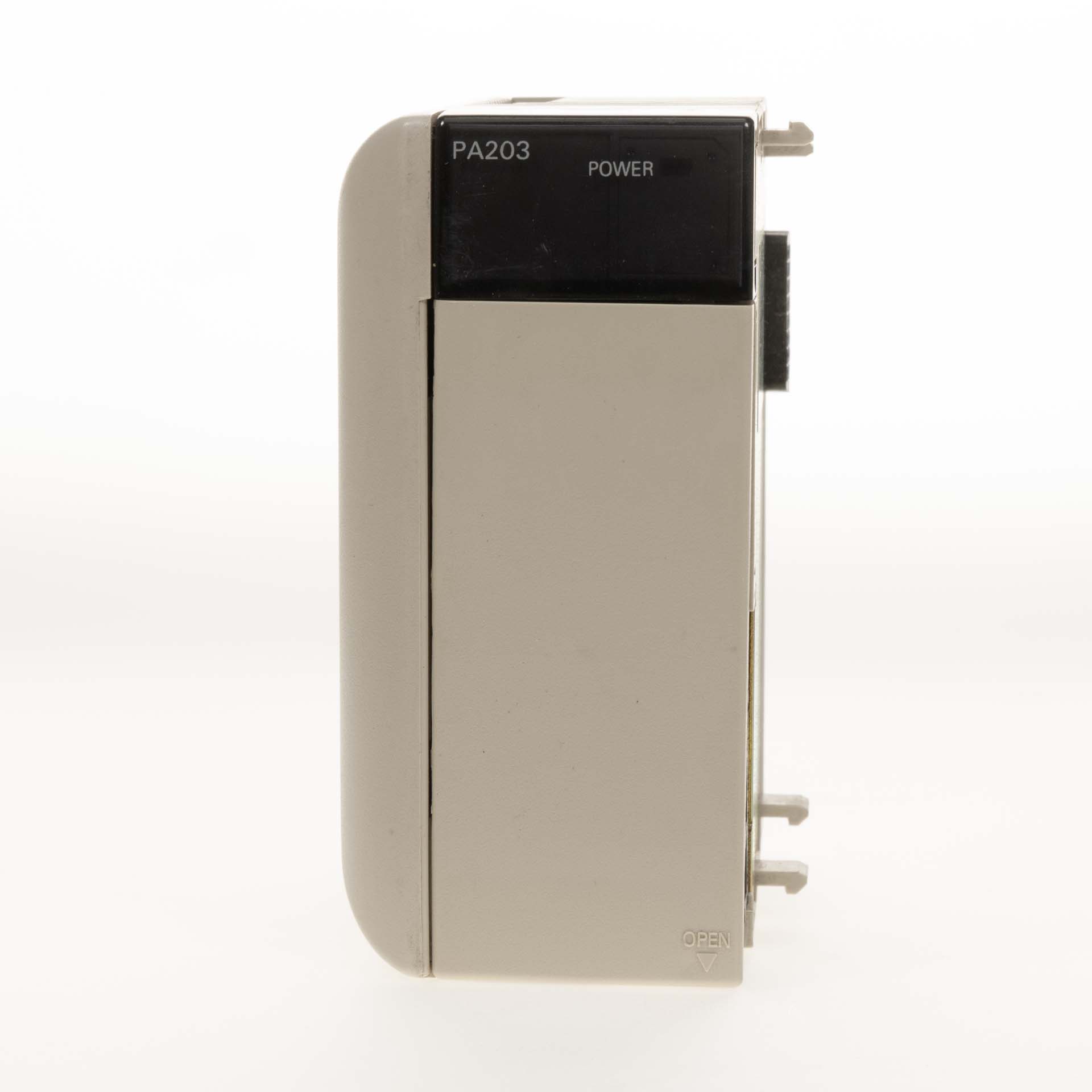

Omron CQM1-PA203 PLC Power Supply Supply voltage: 100 to 240 VAC, 50/60 Hz Operating voltage range: 85 to 264 VAC Operating frequency range: 47 to 63 Hz Output capacity 5 VDC: 3.6 A (18 W) Power consumption: 60 VA max.
