GE Fanuc IC693ALG220G
€245.00
Available, delivery time: 2-5 days
Condition: used
Stock: 1
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "GE Fanuc IC693ALG220G"

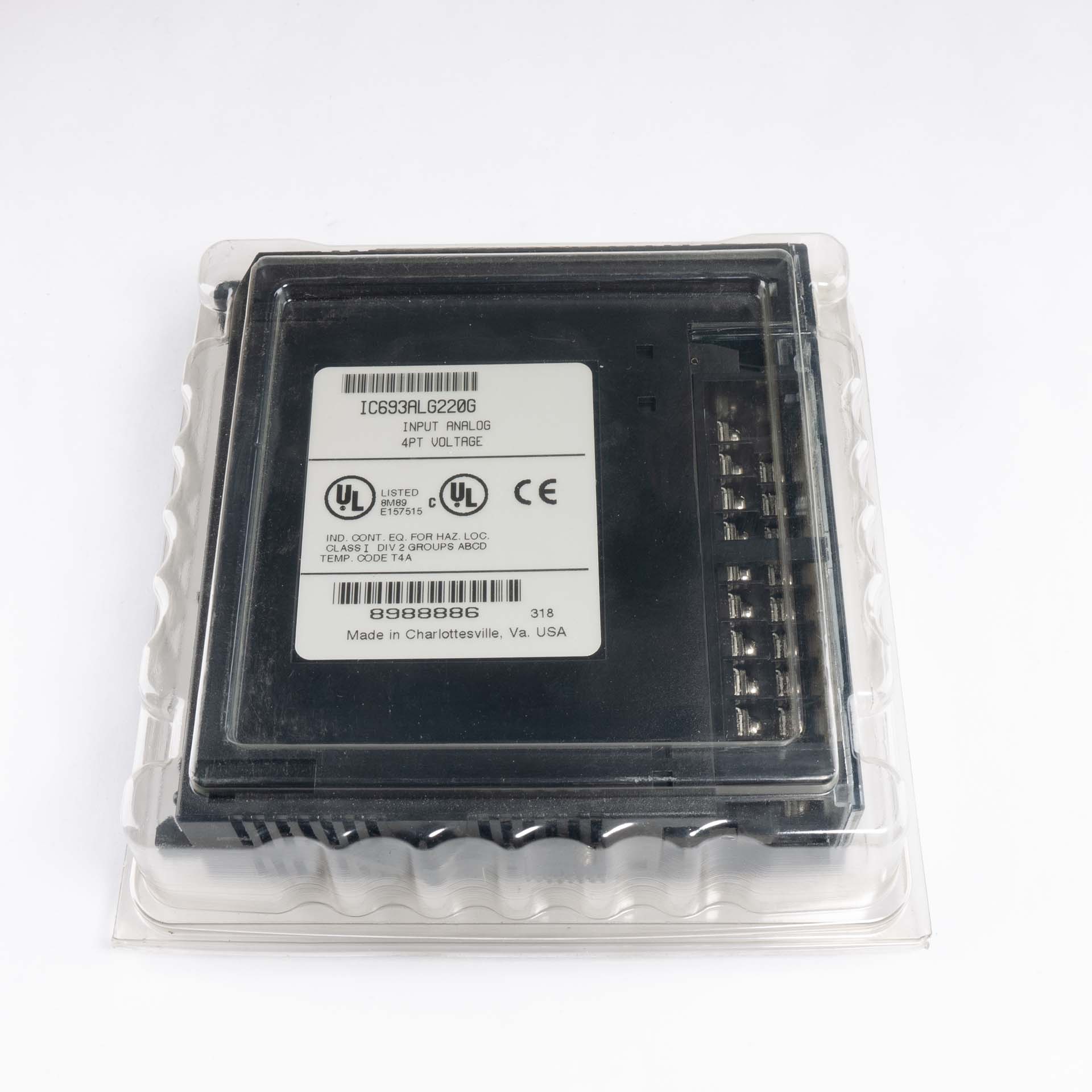

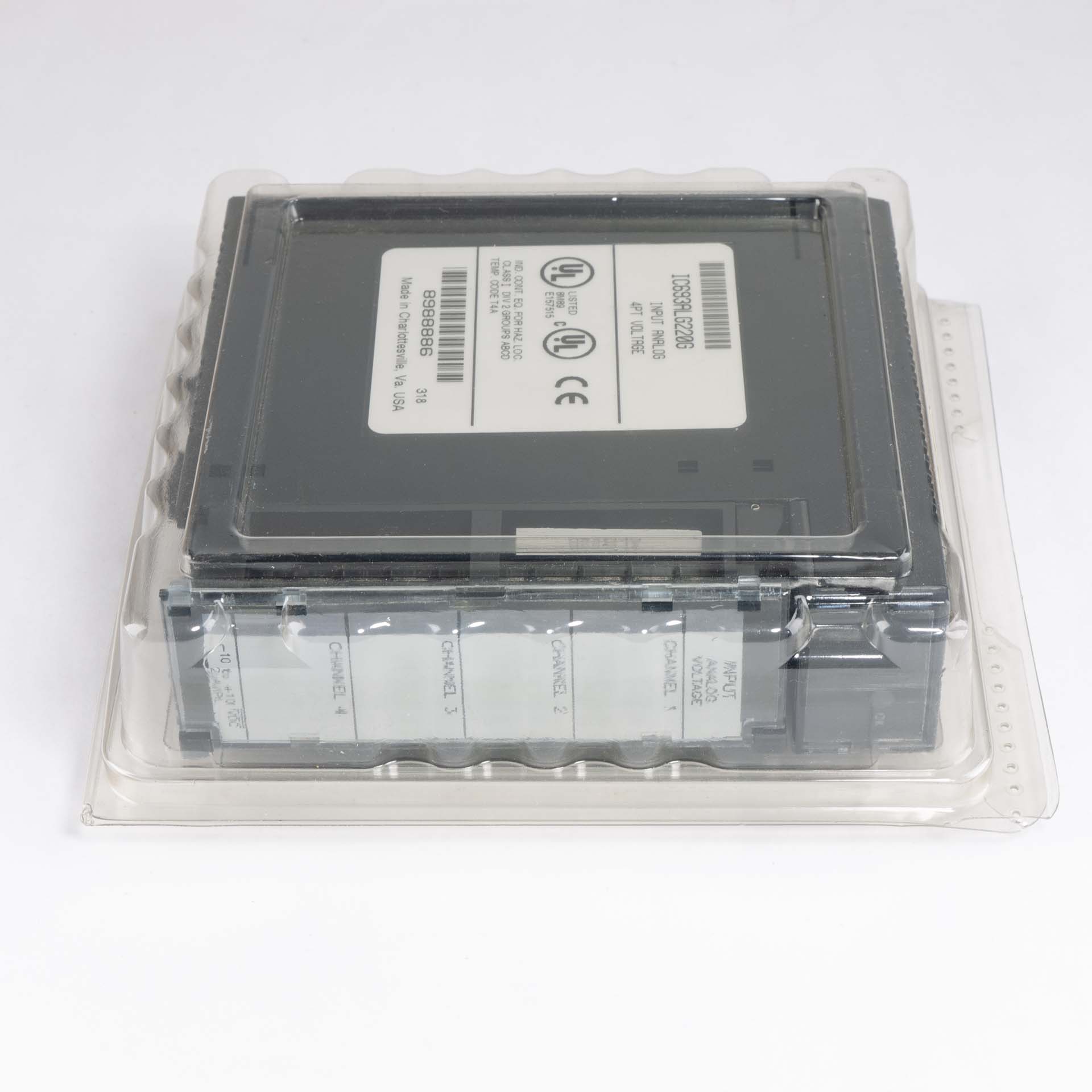

GE Fanuc IC693ALG220G 4point Analog Input Voltage +-10V
Condition: New Old Stock (NOS) - Unused module. Original packaging may show signs of shelf wear or aging, but the part itself is pristine and ready for deployment.
The GE Fanuc IC693ALG220G is a 4-Channel Analog Voltage Input Module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This module provides four independent input channels, each capable of rapidly converting an analog input signal to a digital signal for application processing. It is designed to accept voltage inputs in the range of -10 to +10 VDC, but also features a limited current input mode via a jumper connection on the user terminal connector.
Key Specifications:
- Manufacturer: GE Fanuc (Emerson Automation)
- Product Line: Series 90-30
- Part Number: IC693ALG220 (Specific Revision: IC693ALG220G)
- Module Type: Analog Voltage Input Module
- Number of Channels: 4
- Input Voltage Range: -10 to +10 VDC
- Converter Resolution: 12-bit binary (1 part in 4096)
- Update Rate: 4 milliseconds (1 ms conversion speed per channel)
- Absolute Accuracy: ±10 mV/40 μA (typical) over operating temperature
- Isolation: 1500 V between the field side and logic side
- Backplane Power Consumption: 27 mA from the +5 VDC bus; 98 mA from the isolated +24 VDC bus
Additional Features:
- Includes a convenient LED indicator near the top of the faceplate to display operational "ON" status.
- Internal 250-ohm shunt resistor circuit, accessible via jumper, allows for a -40 to +40 mA current input range (requires monitoring to avoid self-heating).
- Utilizes optical isolation to minimize the impact of external electrical noise between field wiring and the backplane.
Properties:
| Condition: | New |
|---|
