GE Fanuc IC693ALG221G
€275.00
Available, delivery time: 2-5 days
Condition: used
Stock: 1
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "GE Fanuc IC693ALG221G"
Product Description: GE Fanuc IC693ALG221G

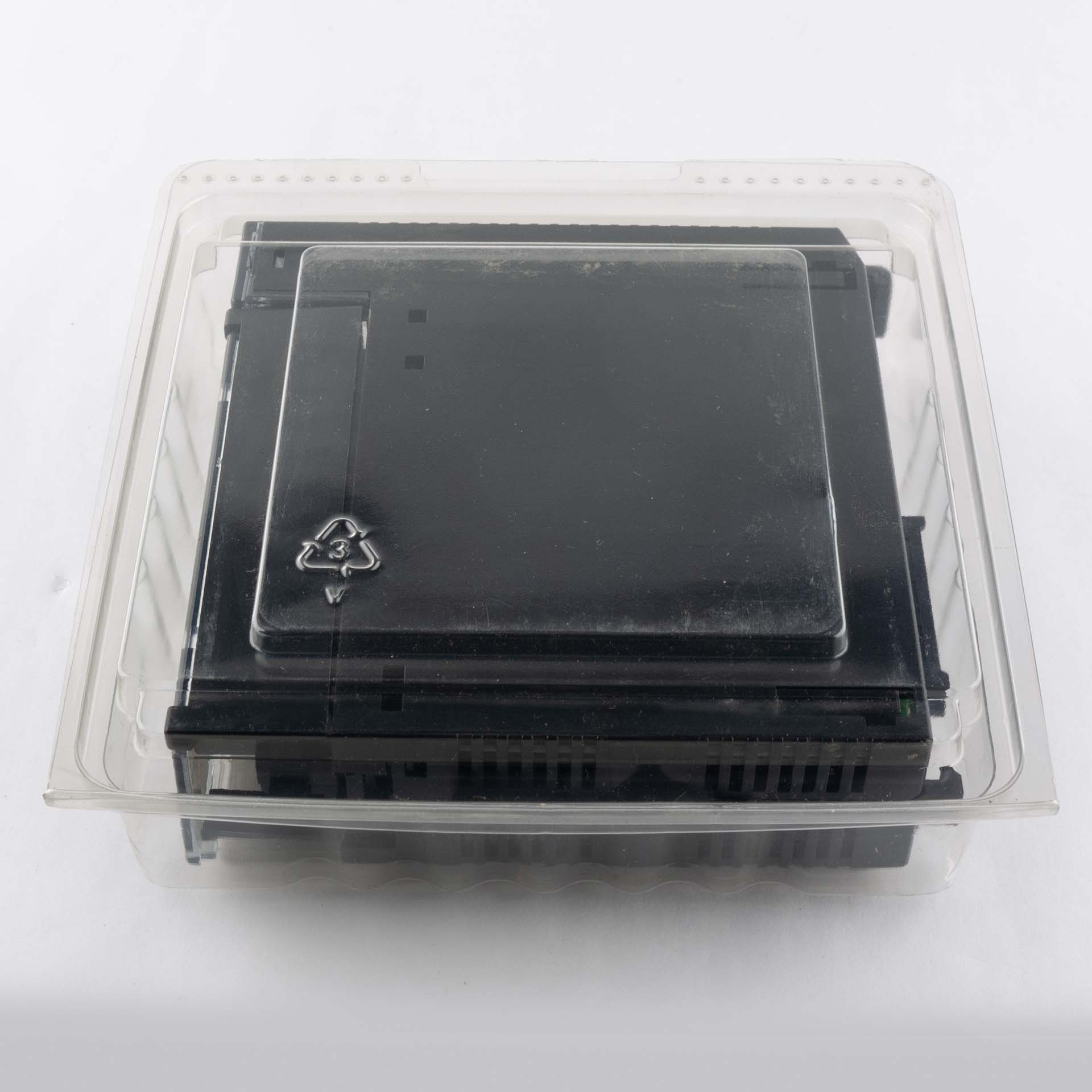

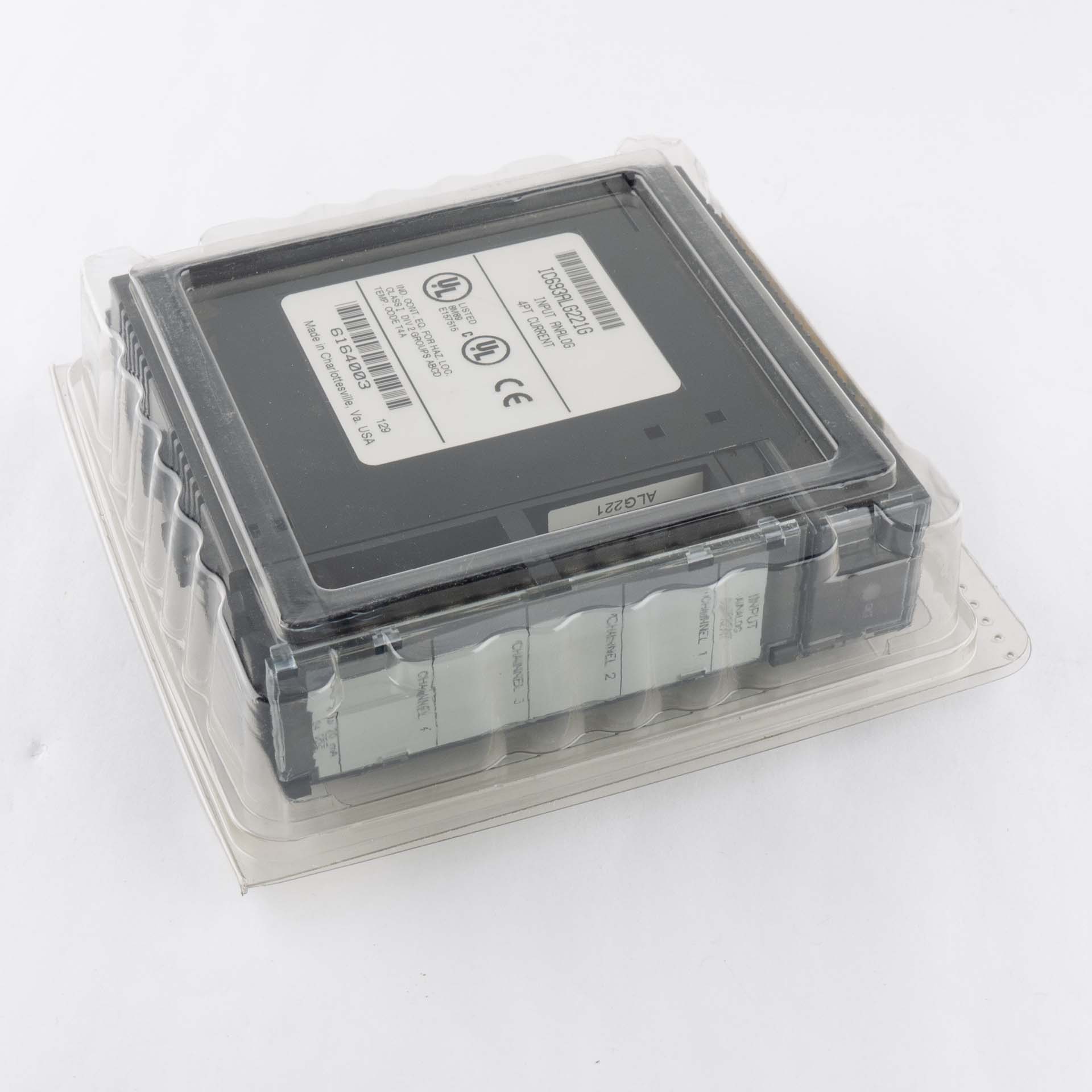

Condition: New Old Stock (NOS) - Unused module. The original packaging may show signs of shelf wear or aging, but the module itself is in pristine condition and fully functional.
The GE Fanuc IC693ALG221G is a 4-Channel Analog Current Input Module designed for the Series 90-30 Programmable Logic Controller (PLC) system. It provides four independent input channels that rapidly process analog current signals into digital values for the CPU. This module is specifically engineered for standard industrial current loops, accepting input signals in either the 4 to 20 mA or 0 to 20 mA ranges. It is an ideal solution for interfacing with flow meters, pressure transmitters, and other current-based sensors.
Key Specifications:
- Manufacturer: GE Fanuc (Emerson Automation)
- Product Line: Series 90-30
- Part Number: IC693ALG221G
- Module Type: Analog Current Input Module
- Number of Channels: 4
- Input Current Range: 4 to 20 mA or 0 to 20 mA
- Converter Resolution: 12-bit
- Update Rate: 2 milliseconds (0.5 ms conversion speed per channel)
- Input Impedance: 250 ohms
- Isolation: 1500 V between the field side and logic side
- Backplane Power Consumption: 25 mA from the +5 VDC bus; 100 mA from the isolated +24 VDC bus
Additional Features:
- Features a convenient LED indicator at the top of the faceplate to confirm the module is powered "ON" and successfully communicating with the backplane.
- Built-in optical isolation provides excellent protection against electrical noise and ground loop interference between field devices and internal PLC logic.
- Requires a standard 20-pin detachable terminal block for straightforward field wiring.
Properties:
| Condition: | New |
|---|
