GE Fanuc IC693CHS397M Series 90-30 5-Slot Modular CPU Baseplate

This is a New In Box, Old Stock (NOS) GE Fanuc (Emerson) IC693CHS397M modular CPU baseplate. Designed as the foundational backplane for the Series 90-30 Programmable Logic Controller (PLC) family, this chassis provides the essential power routing and communication pathways required to host a central processor and various I/O modules in industrial automation systems.

Key Features

• 5-Slot Modular Design: Houses one modular CPU (or specialty communication module) in Slot 1, and accommodates up to four I/O or option modules in Slots 2 through 5.
• Dedicated Power Slot: Features a uniquely sized, unnumbered leftmost slot specifically keyed to accept only a Series 90-30 power supply module.
• Scalable Architecture: Equipped with a built-in 25-pin D-shell female expansion connector on the right edge, allowing you to easily daisy-chain to expansion or remote baseplates.
• Secure Installation: Slots are uniquely sized to prevent accidental misplacement of modules, and the baseplate itself includes built-in mounting tabs for secure panel mounting inside electrical enclosures.
• Central System Hub: Functions as the primary "Rack 0" in a Series 90-30 setup, providing the vital communication bus across all installed modules.

Technical Specifications

• Brand: GE Fanuc / Emerson
• Product Line: Series 90-30
• Part Number: IC693CHS397M
• Component Type: CPU Baseplate / Chassis
• Total Slots: 6 (1 Power Supply + 5 Module Slots)
• Expansion Interface: 25-pin female D-sub connector
• Internal Power Consumption: 270 mA at 5 VDC
• Mounting Style: Panel Mount

Condition & Part Number Note

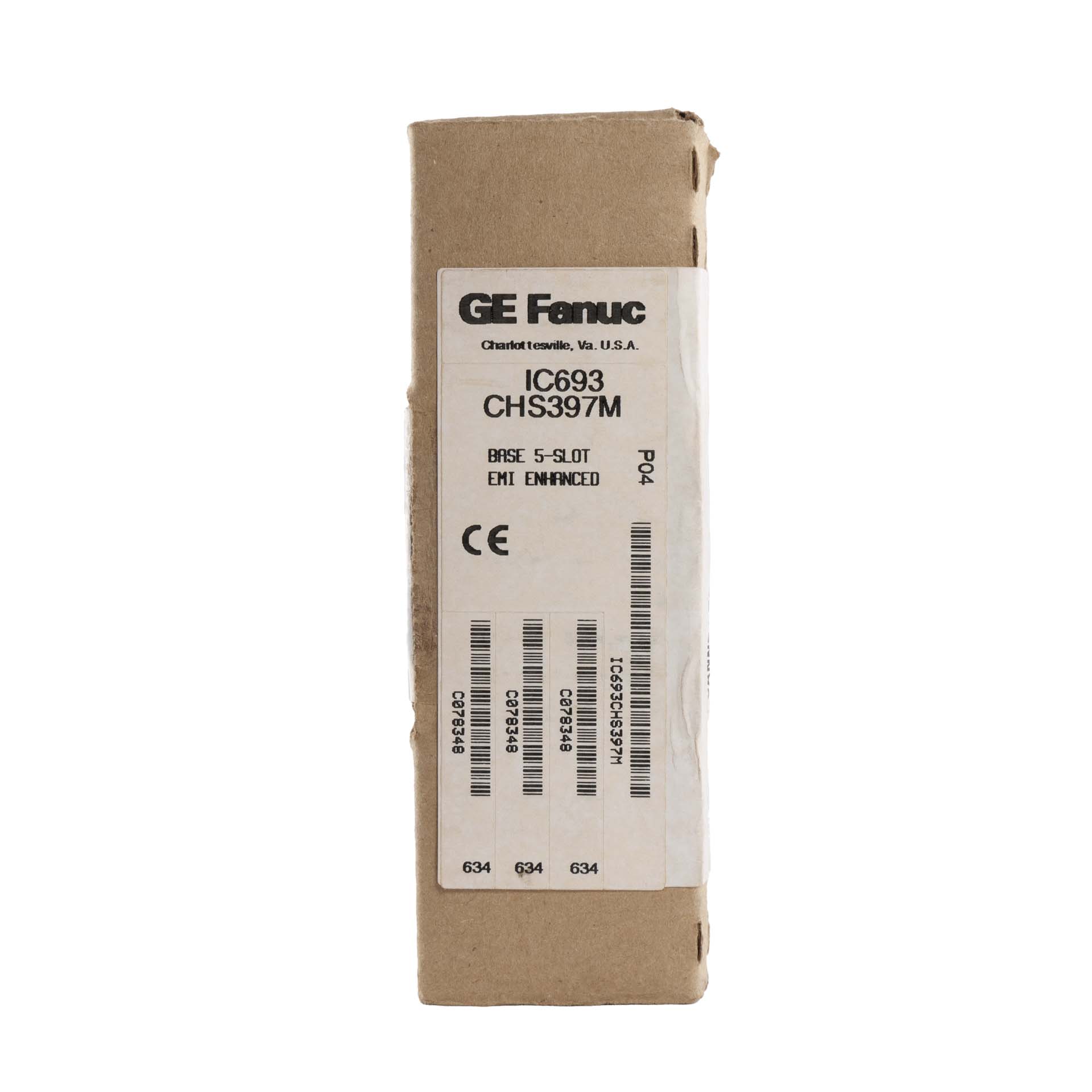

New In Box, Old Stock (NOS): This item is brand new, unused, and remains in its original factory packaging. As vintage/old stock, the outer box may show minor signs of shelf wear or aging, but the baseplate inside is in pristine, uninstalled condition.

*Note on Revision: The "M" at the end of the part number (IC693CHS397M) indicates the hardware revision letter designated by the manufacturer. It functions interchangeably with the base IC693CHS397 model but represents a later production iteration with minor factory updates.
