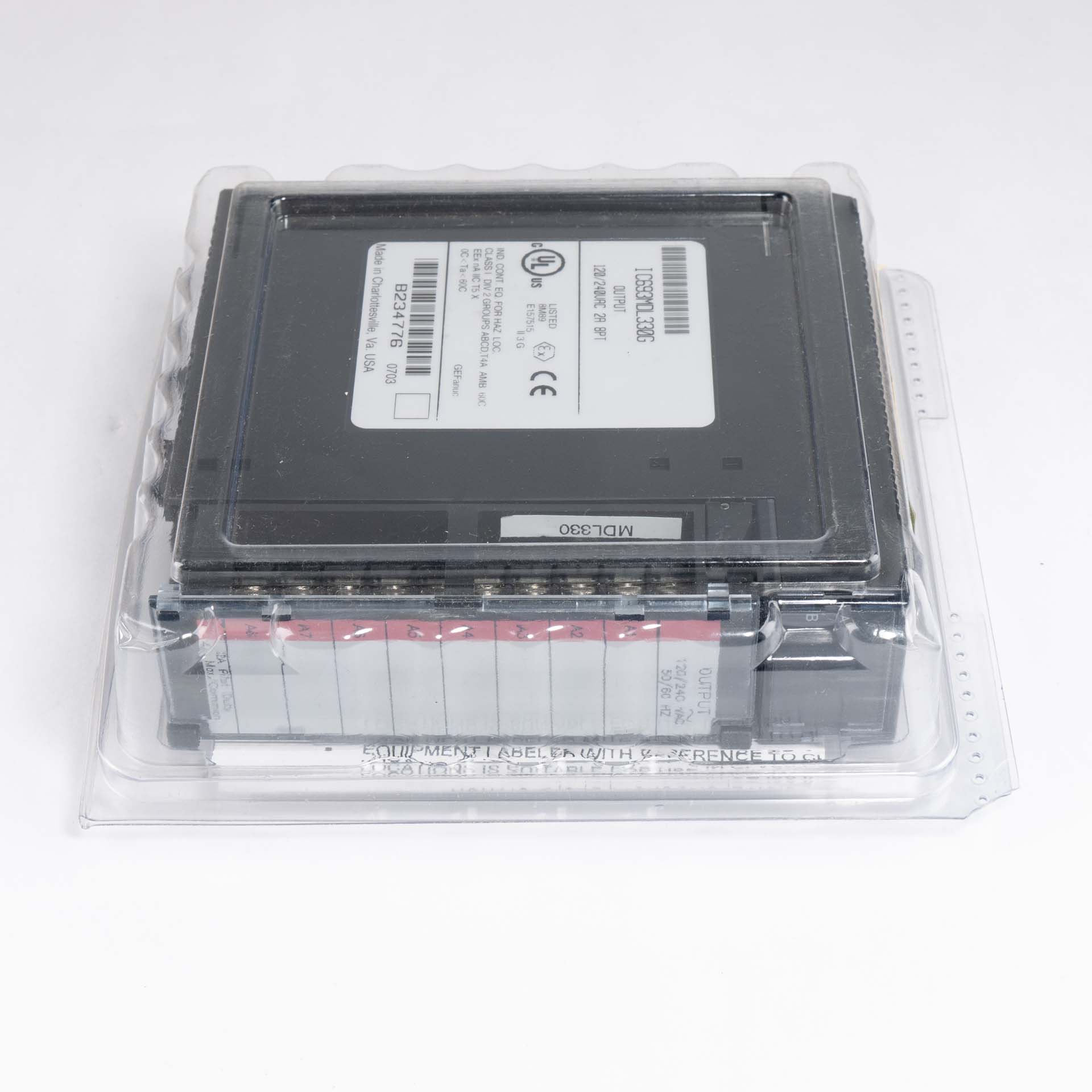

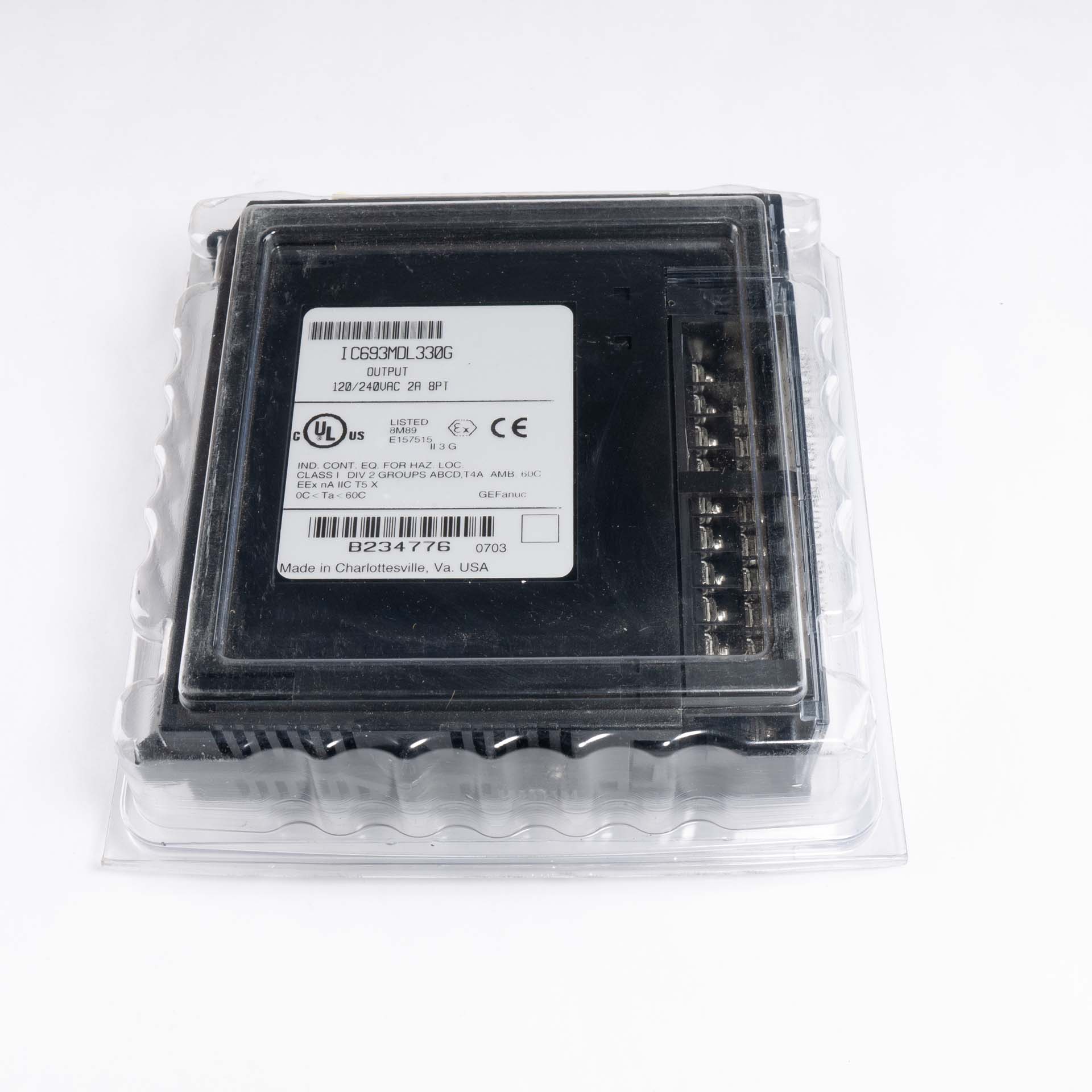

GE Fanuc IC693MDL330G
€315.00
Available, delivery time: 2-5 days
Condition: New
Stock: 1
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "GE Fanuc IC693MDL330G"
GE Fanuc IC693MDL330G 8-Point AC Voltage Output 120/240V
Condition: New Old Stock (NOS) - Unused module. Original packaging may show signs of shelf wear or aging, but the part itself is pristine and ready for deployment.
The GE Fanuc IC693MDL330G is an 8-Point AC Voltage Output Module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This discrete output module is configured with two isolated groups of four output points, allowing each group to operate on a different AC supply phase or share a single supply. Engineered to manage robust applications, it provides a high-degree inrush current capacity, making it exceptionally well-suited for controlling a wide range of inductive and incandescent loads such as motor starters, solenoids, and indicators.
Key Specifications:
- Manufacturer: GE Fanuc (Emerson Automation)
- Product Line: Series 90-30
- Part Number: IC693MDL330 (Specific Revision: IC693MDL330G)
- Module Type: AC Discrete Output Module
- Number of Points: 8 (two isolated groups of 4 outputs)
- Operating Voltage Range: 85 to 264 VAC (50/60 Hz)
- Output Current: 2 Amps maximum per point (4 Amps maximum per group at 40°C)
- Max Inrush Current: 20 Amps maximum for one cycle
- Response Time: 1 ms maximum (ON); 1/2 cycle maximum (OFF)
- Isolation: 1500 V between field side and logic side; 500 V between groups
- Power Consumption: 160 mA (with all outputs ON) from the +5 VDC backplane bus
Additional Features:
- Includes built-in protection with a 5-amp fuse dedicated to each group's common to safeguard against overcurrent conditions.
- Features an integrated RC snubber on each output to protect against transient electrical noise on the power line.
- Equipped with a comprehensive LED array at the top of the module, featuring eight green LEDs to indicate individual point status and a dedicated red "F" LED to quickly signal a blown fuse.
Properties:
| Condition: | New |
|---|
