GE Fanuc IC693MDL655G

GE Fanuc IC693MDL655G 32-Point 24 VDC Positive/Negative Logic Input

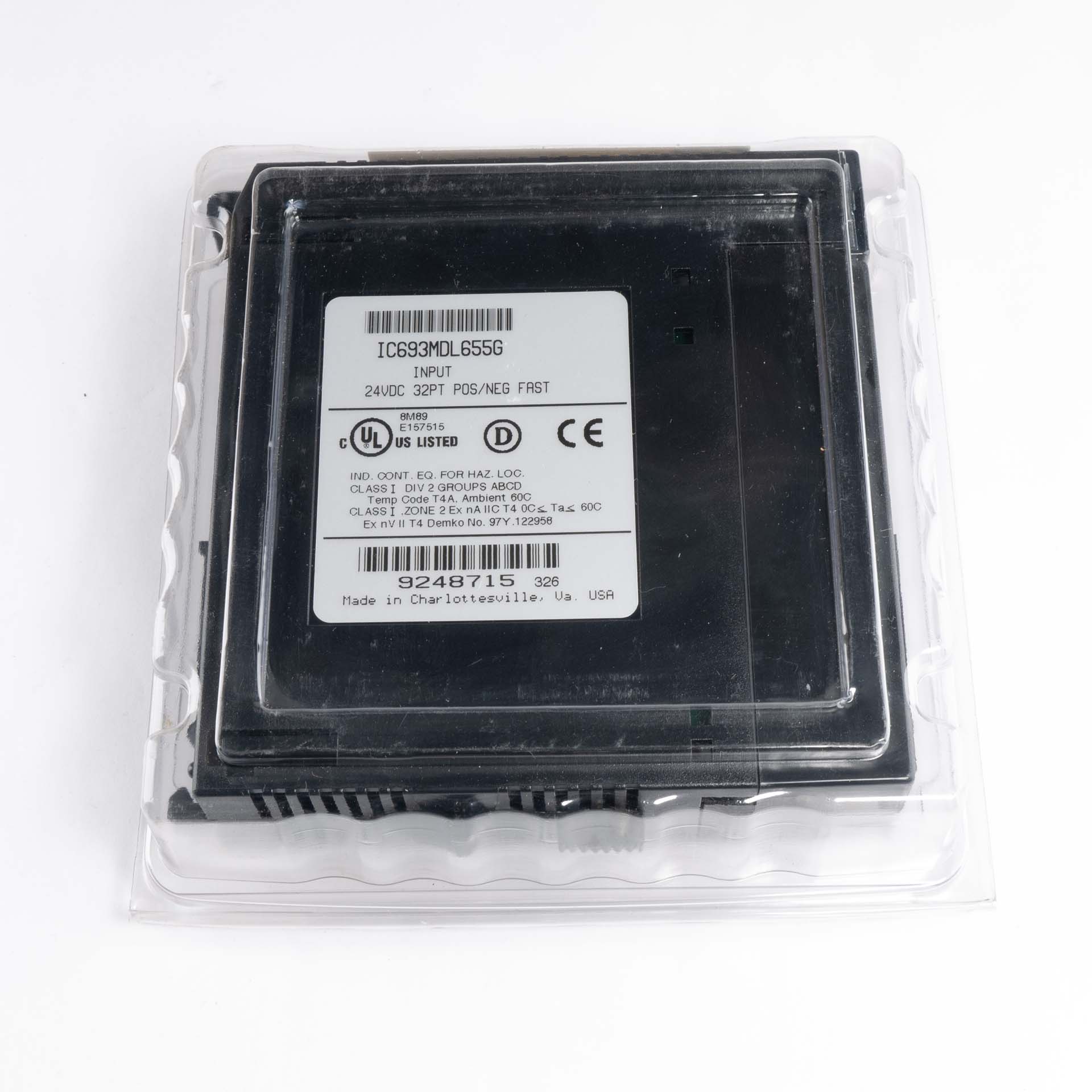

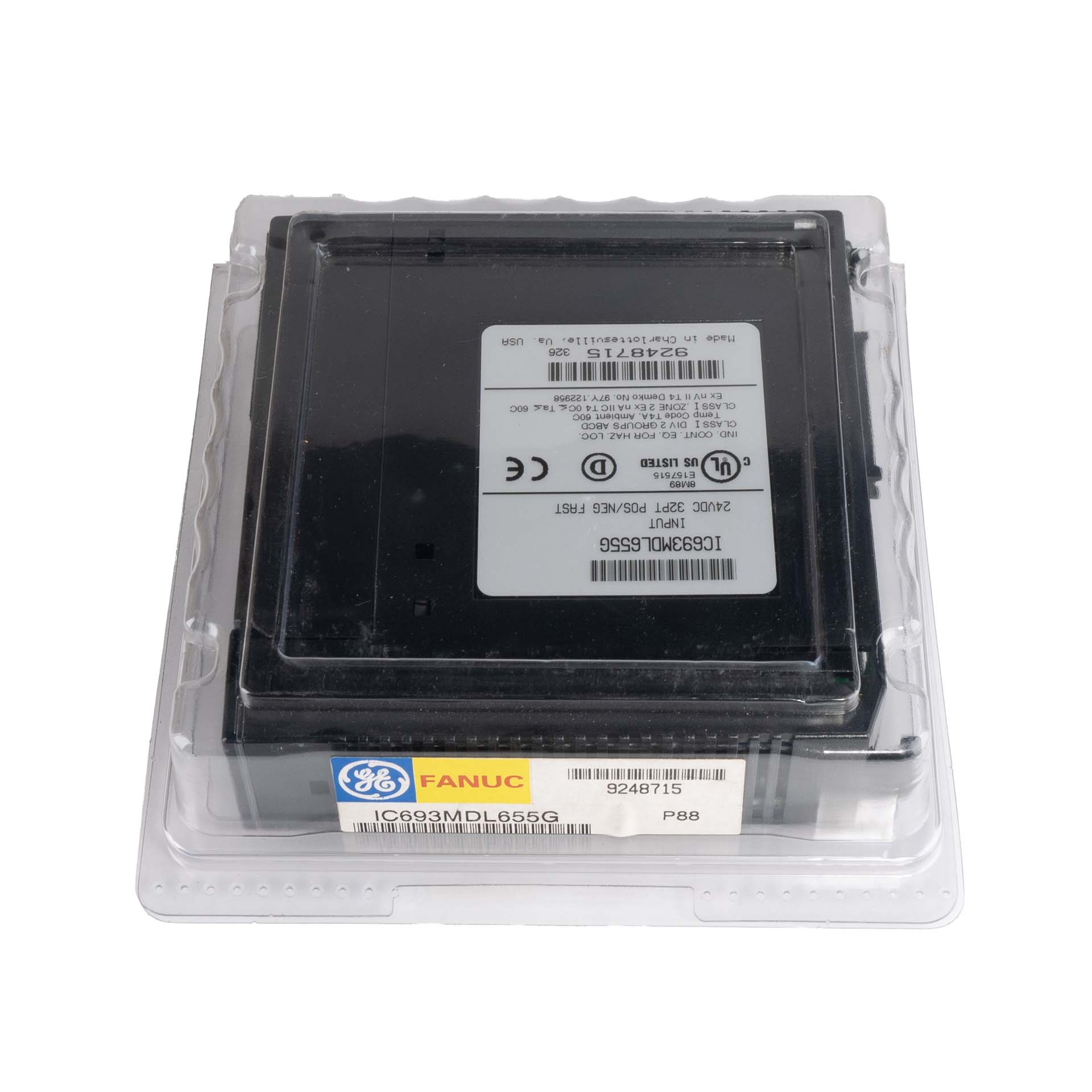

Condition: New Old Stock (NOS) - Unused module. Original packaging may show signs of shelf wear or aging, but the part itself is pristine and ready for deployment.

The GE Fanuc IC693MDL655G is a high-density, 32-Point Discrete Input Module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This module provides an expansive 32 individual input points divided into four isolated groups of eight, with each group featuring its own common terminal. Engineered to accept 24 VDC nominal input signals, it is exceptionally versatile, supporting both positive logic (sourcing) and negative logic (sinking) configurations. It provides a highly efficient solution for monitoring a large volume of binary field devices without sacrificing valuable backplane space.

Key Specifications:

• Manufacturer: GE Fanuc (Emerson Automation)
• Product Line: Series 90-30
• Part Number: IC693MDL655 (Specific Revision: IC693MDL655G)
• Module Type: Discrete DC Input Module (High-Density)
• Number of Points: 32 (arranged in 4 isolated groups of 8)
• Rated Voltage: 24 VDC (0 to +30 VDC operating range)
• Input Current: 7.0 mA (typical) per channel at 24 VDC
• Response Time: 2 ms maximum for both ON and OFF states
• Wiring Configuration: Positive or Negative Logic
• Isolation: 1500 V between the field side and logic side; 250 V between groups
• Power Consumption: 195 mA (maximum) from the +5 VDC backplane bus; 224 mA (typical) from the isolated +24 VDC bus

Additional Features:

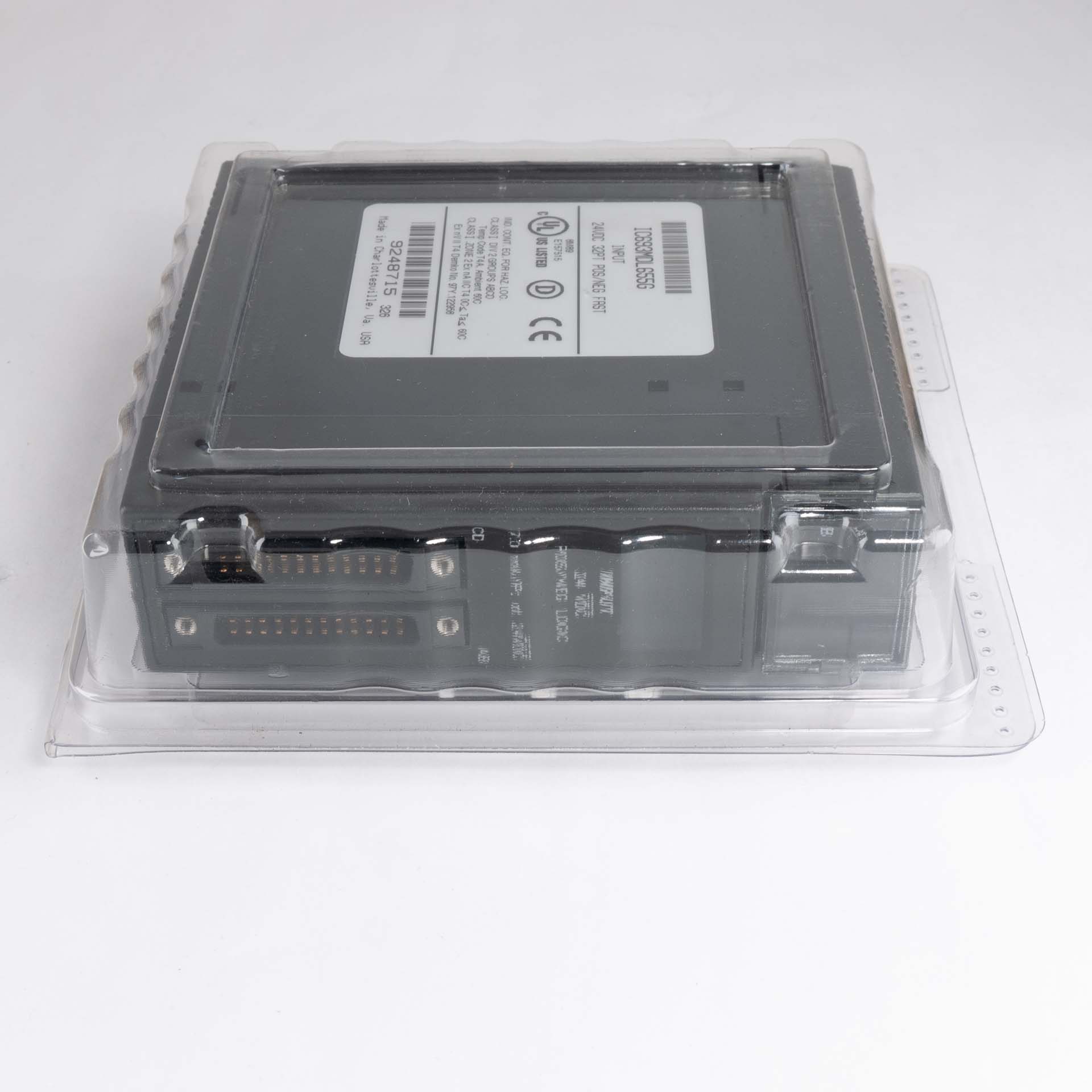

• Unlike standard modules with screw terminals, this high-density unit features two front-mounted, male 24-pin Fujitsu connectors, requiring pre-wired cables (like IC693CBL327/328) or custom-built cable assemblies.
• Features an organized LED block at the top of the module, providing a distinct ON/OFF status indicator for all 32 points (A1-A8, B1-B8, C1-C8, D1-D8) for rapid troubleshooting.
• Utilizes high-quality opto-couplers to provide robust backplane isolation, ensuring the PLC logic is protected from field-side transients.
