GE Fanuc IC693MDL741F

GE Fanuc IC693MDL741F 16-Point 12/24 VDC Negative Logic Output

Condition: New Old Stock (NOS) - Unused module. Original packaging may show signs of shelf wear or aging, but the part itself is pristine and ready for deployment.

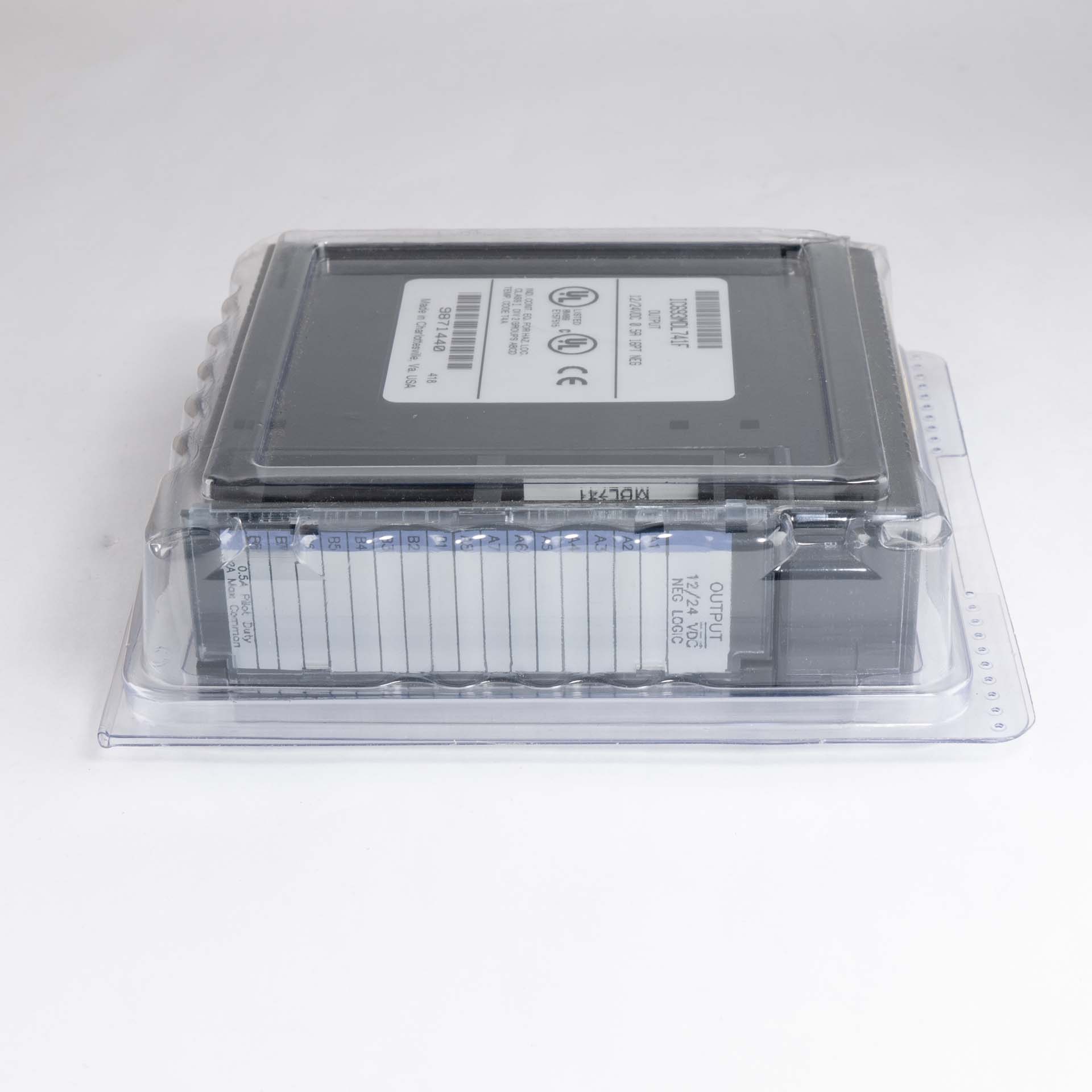

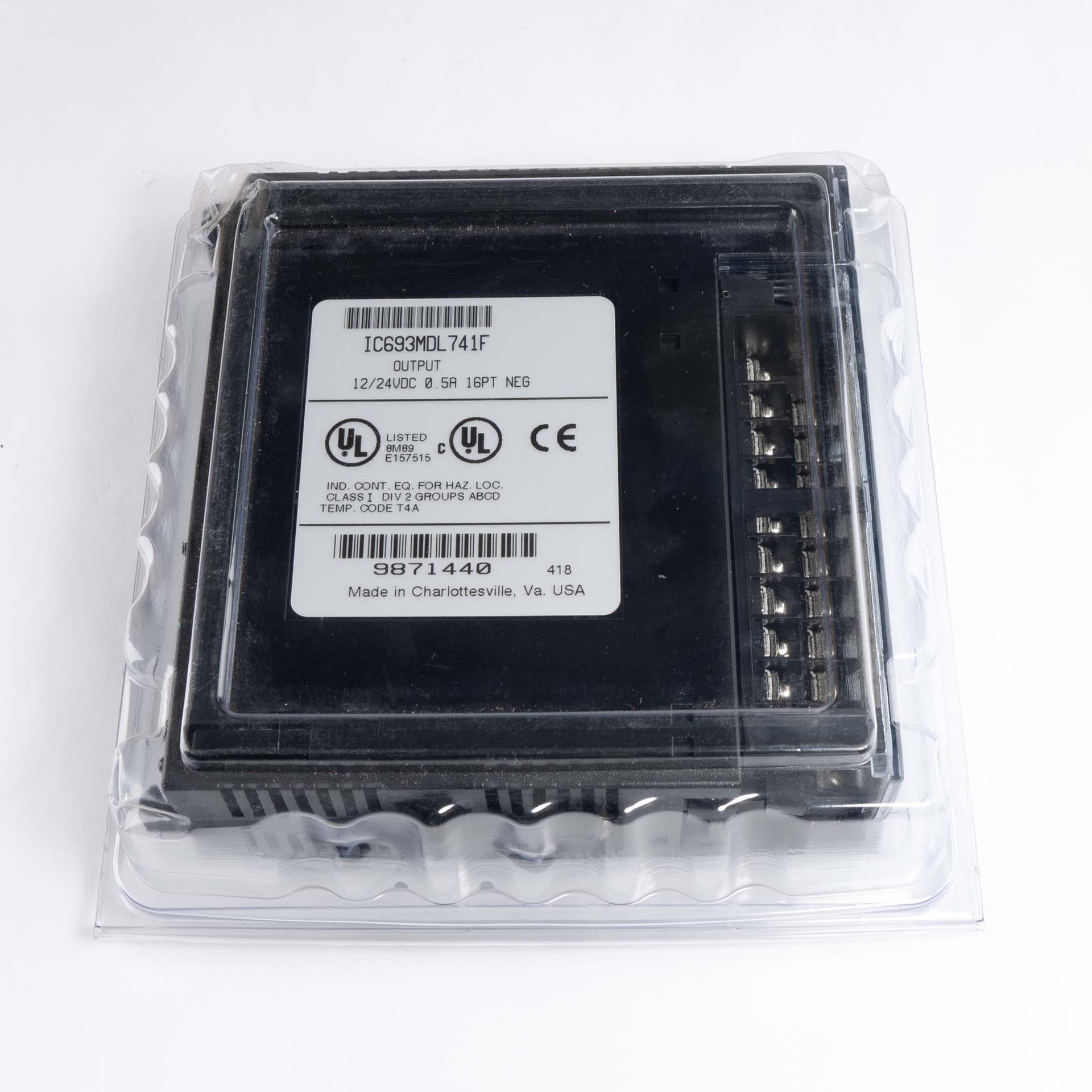

The GE Fanuc IC693MDL741F is a 16-Point Discrete Output Module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This module provides 16 individual output points arranged in two isolated groups of eight, with each group featuring a shared common power output terminal. Engineered specifically for negative logic (sinking) applications, it is designed to sink current from the loads to the user common or negative power bus. Operating reliably across a 12 to 24 VDC range, it provides an ideal interface for driving user-supplied field devices such as motor starters, solenoids, and indicators.

Key Specifications:

• Manufacturer: GE Fanuc (Emerson Automation)
• Product Line: Series 90-30
• Part Number: IC693MDL741 (Specific Revision: IC693MDL741F)
• Module Type: Discrete DC Output Module
• Number of Points: 16 (two isolated groups of 8 outputs)
• Rated Voltage: 12/24 VDC (12 to 24 VDC +20%, -15% operating range)
• Output Current: 0.5 Amps maximum per point (2 Amps maximum per common/group)
• Response Time: 2 ms maximum for both ON and OFF states
• Wiring Configuration: Negative Logic (Sinking)
• Isolation: 1500 V between the field side and logic side; 500 V between groups
• Power Consumption: 110 mA (with all outputs ON) from the +5 VDC backplane bus

Additional Features:

• Features an intuitive LED block at the top of the module with two horizontal rows of eight green LEDs (A1-A8 and B1-B8), providing instant visual confirmation of each point's ON/OFF status.
• The hinged door insert features a blue color-coded outside left edge, allowing technicians to quickly identify it as a low-voltage module during maintenance.
• Designed without internal fuses, offering flexibility for users to implement external overcurrent protection tailored to the specific load requirements of their application.
