GE Fanuc IC693MDL940H

GE Fanuc IC693MDL940H 16-Point Relay Output 2A 24VDC / 120/240VAC

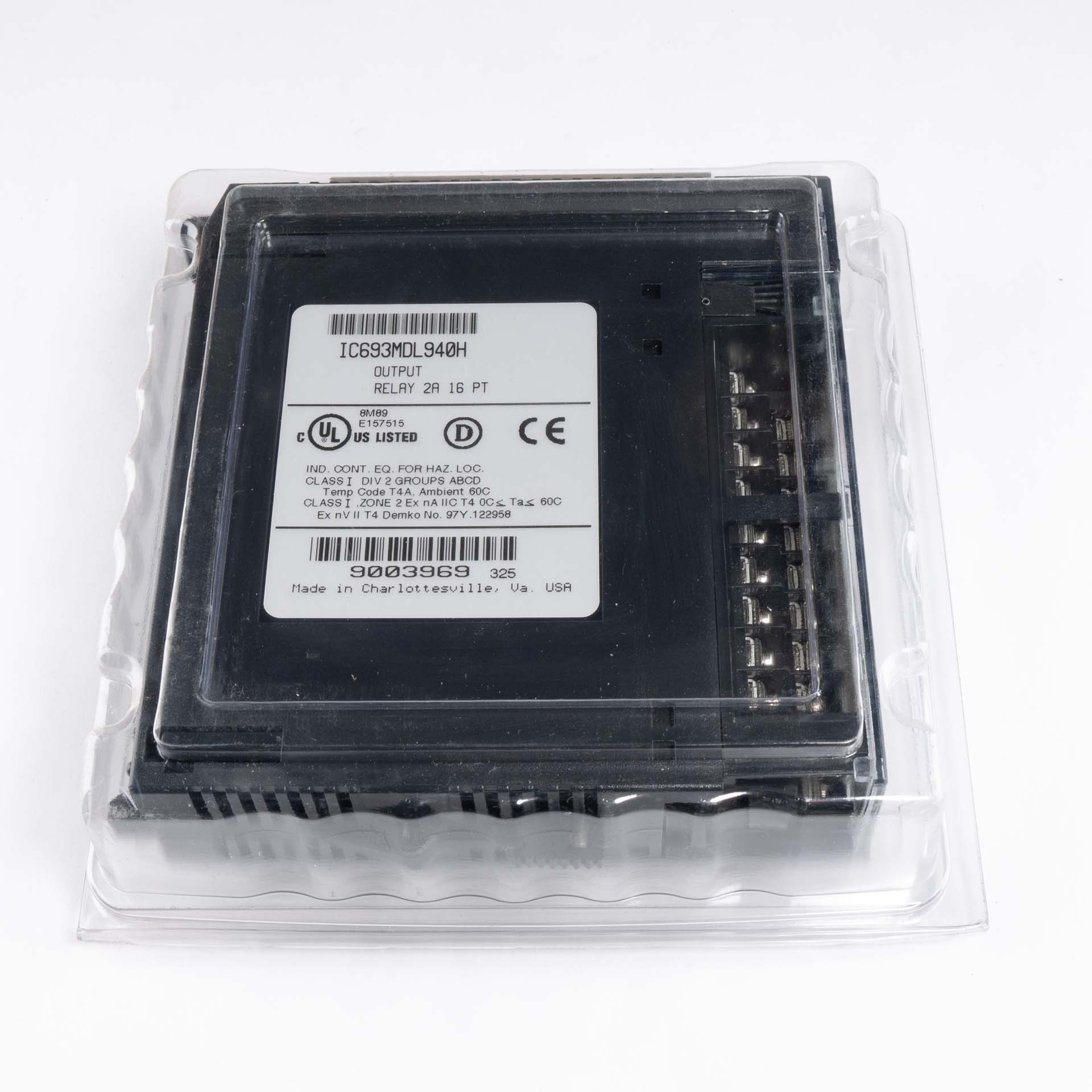

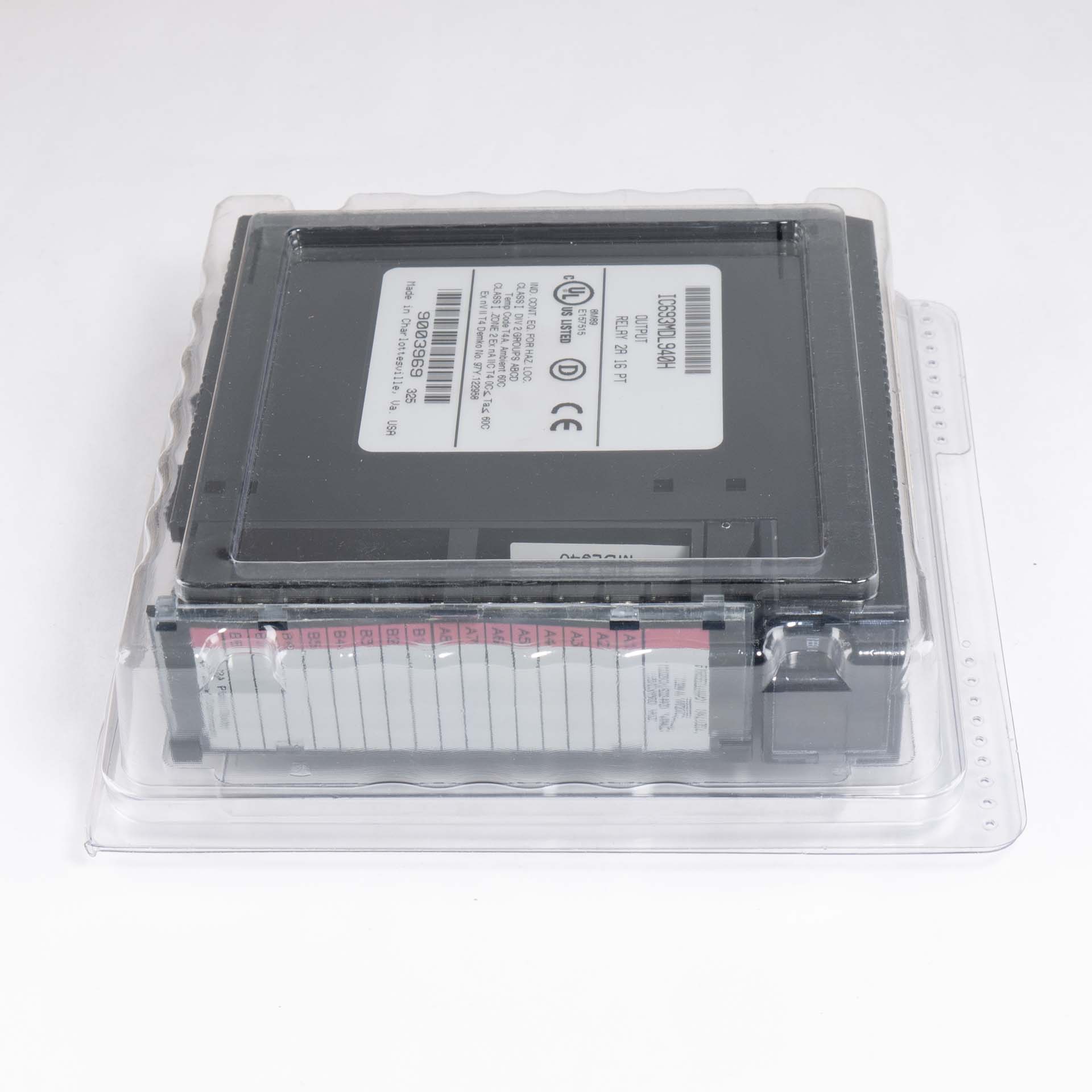

Condition: New Old Stock (NOS) - Unused module. Original packaging may show signs of shelf wear or aging, but the part itself is pristine and ready for deployment.

The GE Fanuc IC693MDL940H is a versatile 16-Point Relay Output Module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This module provides 16 normally-open (Form A) relay circuits arranged in four isolated groups of four points, with each group sharing a common power output terminal. Designed to control a wide range of user-supplied load devices, it seamlessly handles both AC and DC voltages. With a robust 2-Amp switching capacity per point, it is an excellent choice for driving industrial loads such as motor starters, solenoids, and indicators.

Key Specifications:

• Manufacturer: GE Fanuc (Emerson Automation)
• Product Line: Series 90-30
• Part Number: IC693MDL940 (Specific Revision: IC693MDL940H)
• Module Type: Relay Output Module (Normally Open)
• Number of Points: 16 (four isolated groups of 4 outputs)
• Rated Voltage: 24 VDC, 120/240 VAC (5 to 30 VDC / 5 to 250 VAC operating range)
• Output Current: 2 Amps maximum per point (4 Amps maximum per common/group)
• Maximum Inrush: 5 Amps
• Response Time: 15 ms maximum for both ON and OFF states
• Isolation: 1500 V between the field side and logic side; 500 V between groups
• Power Consumption: 7 mA from the +5 VDC backplane bus; 135 mA from the relay +24 VDC backplane bus

Additional Features:

• Features an organized LED block at the top of the faceplate, with two horizontal rows of eight green LEDs (A1-A8 and B1-B8) to provide immediate visual confirmation of the ON/OFF status for each relay point.
• Relay contacts provide excellent electrical isolation, protecting the PLC's sensitive internal logic from voltage spikes on the field side.
• Designed without internal fuses, allowing the user to size and implement external fusing based on the specific AC or DC load requirements of their application.
