GE Fanuc IC693MDR390C 8-Point 24VDC Input / 8-Point Relay Output

GE Fanuc IC693MDR390C 8-Point 24VDC Input / 8-Point Relay Output

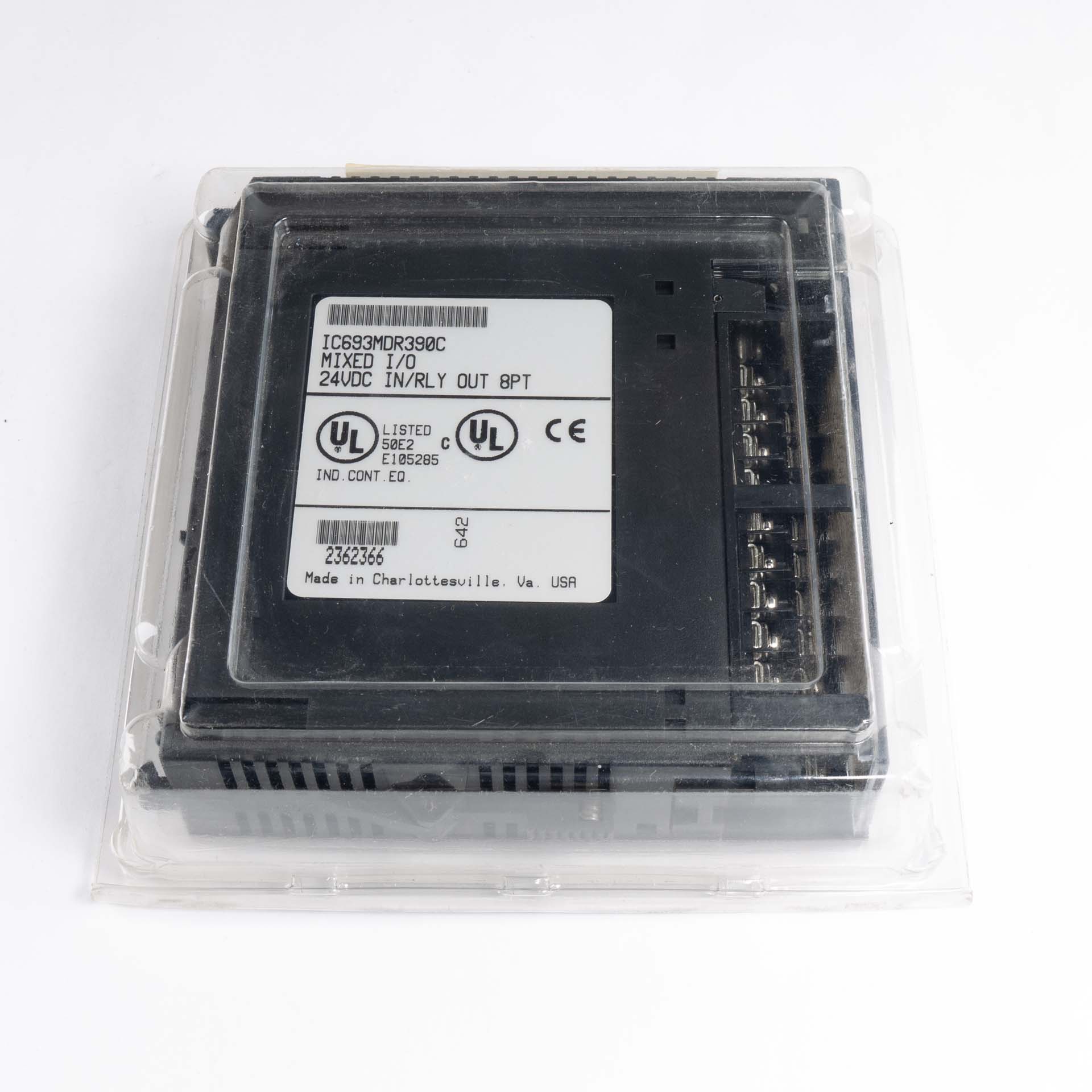

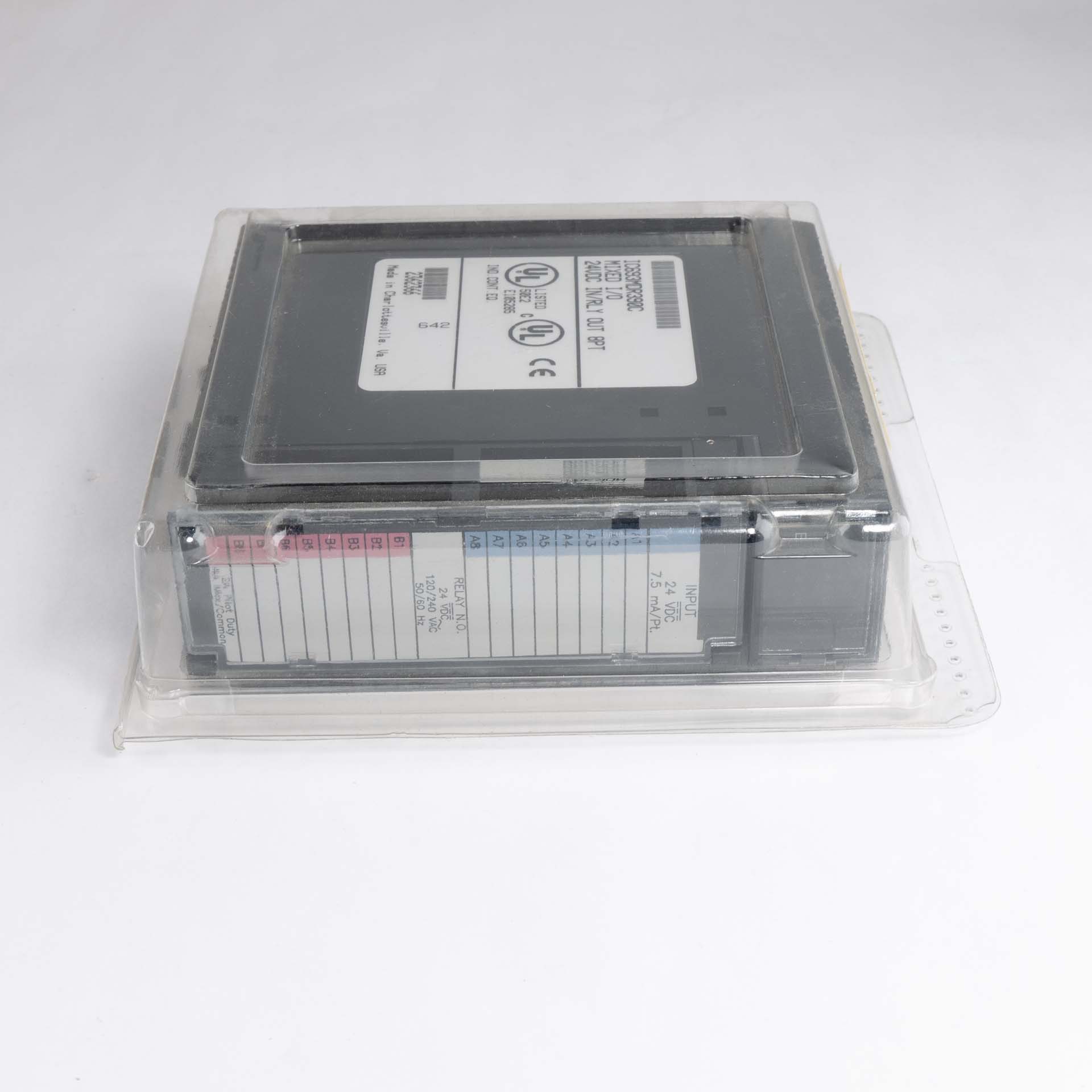

Condition: New Old Stock (NOS) - Unused module. Original packaging may show signs of shelf wear or aging, but the part itself is pristine and ready for deployment.

The GE Fanuc IC693MDR390C is a highly versatile Combination Discrete I/O Module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. Designed to maximize backplane efficiency, this dual-function module houses both 8 discrete 24 VDC inputs and 8 normally-open (Form A) relay outputs in a single slot. This makes it an ideal, space-saving solution for compact control applications requiring both sensor monitoring and actuator control, seamlessly interfacing with field devices ranging from pushbuttons and limit switches to motor starters and solenoids.

Key Specifications:

• Manufacturer: GE Fanuc (Emerson Automation)
• Product Line: Series 90-30
• Part Number: IC693MDR390 (Specific Revision: IC693MDR390C)
• Module Type: Combination Discrete Input / Relay Output Module
• Number of Points: 16 total (8 Inputs arranged in one group, 8 Outputs arranged in two isolated groups of four)
• Input Voltage Range: 24 VDC nominal (-30 to +32 VDC operating range)
• Output Voltage Range: 5 to 30 VDC / 5 to 250 VAC (50/60 Hz)
• Output Current: 2 Amps maximum per point (4 Amps maximum per output common)
• Response Time: 7 ms typical (Inputs); 15 ms maximum (Outputs)
• Isolation: 1500 V between the field side and logic side
• Power Consumption: 80 mA from the +5 VDC backplane bus; 70 mA from the relay +24 VDC bus

Additional Features:

• Input circuits are highly flexible, natively supporting both positive logic (sourcing) and negative logic (sinking) wiring configurations.
• Relay contacts provide robust electrical isolation, protecting the PLC's sensitive internal logic from voltage spikes on the output field side.
• Features a comprehensive, two-row LED block at the top of the module, providing dedicated green indicator lights (A1-A8 for inputs, B1-B8 for outputs) for instant visual status diagnostics.
