GE Fanuc IC697PWR710L Series 90-70 55W Power Supply Module

This is a New In Box, Old Stock (NOS) GE Fanuc (Emerson) IC697PWR710L power supply module. Engineered for the robust Series 90-70 Programmable Logic Controller (PLC) platform, this 55-watt AC/DC power supply delivers highly regulated +5 VDC power to the backplane, ensuring stable and reliable operation for your central processor and installed I/O modules.

Key Features

• Flexible Input Options: Designed to accept a wide range of input power, operating on 120/240 VAC (47 to 63 Hz) or 125 VDC nominal lines.
• High Output Capacity: Supplies up to 11 Amps of +5 VDC power to the backplane, capable of powering a single heavily loaded rack or up to two racks depending on total system load.
• Built-in Protection: Features electronic overvoltage protection (locking the output if the bus exceeds 6.2V) and electronic short-circuit/overcurrent protection for enhanced system safety.
• Active Power Factor Correction: Maintains a high power factor (>0.95) on AC inputs, maximizing electrical efficiency and reducing the need for oversized wiring or breakers.
• Simple Installation: Slide-in rack mount construction designed to plug directly into the dedicated 48-pin connector located in the specifically keyed leftmost slot of the Series 90-70 rack.

Technical Specifications

• Brand: GE Fanuc / Emerson
• Product Line: Series 90-70
• Part Number: IC697PWR710L
• Module Type: Power Supply
• Nominal Input Voltage: 120 / 240 VAC or 125 VDC
• Total Output Power: 55 Watts (56 Watts maximum)
• DC Output: +5 VDC at up to 11 Amps
• Input Power (Full Load): 90 Watts maximum
• Ride-Through Time: 21 milliseconds minimum (from loss of AC input)

Condition & Part Number Note

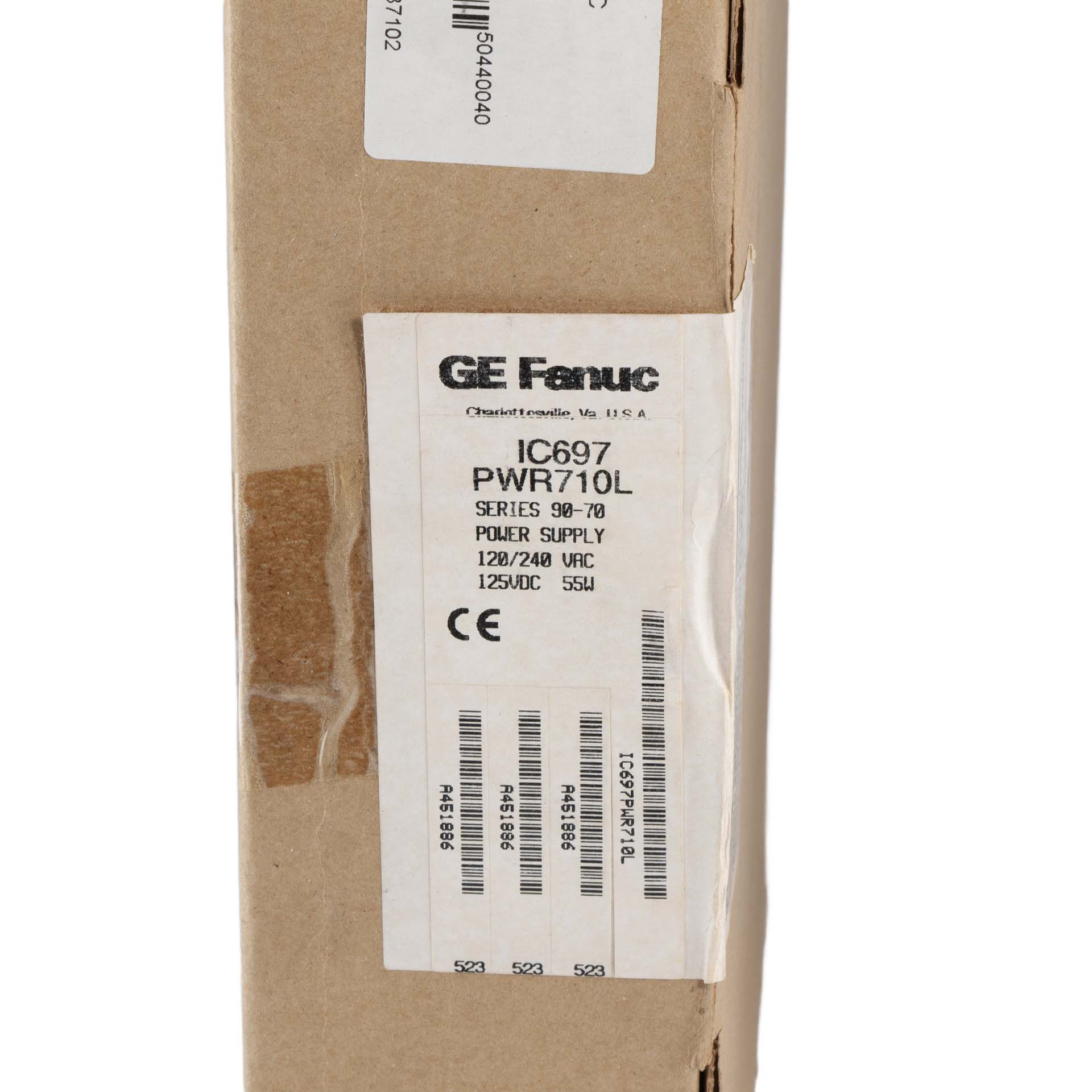

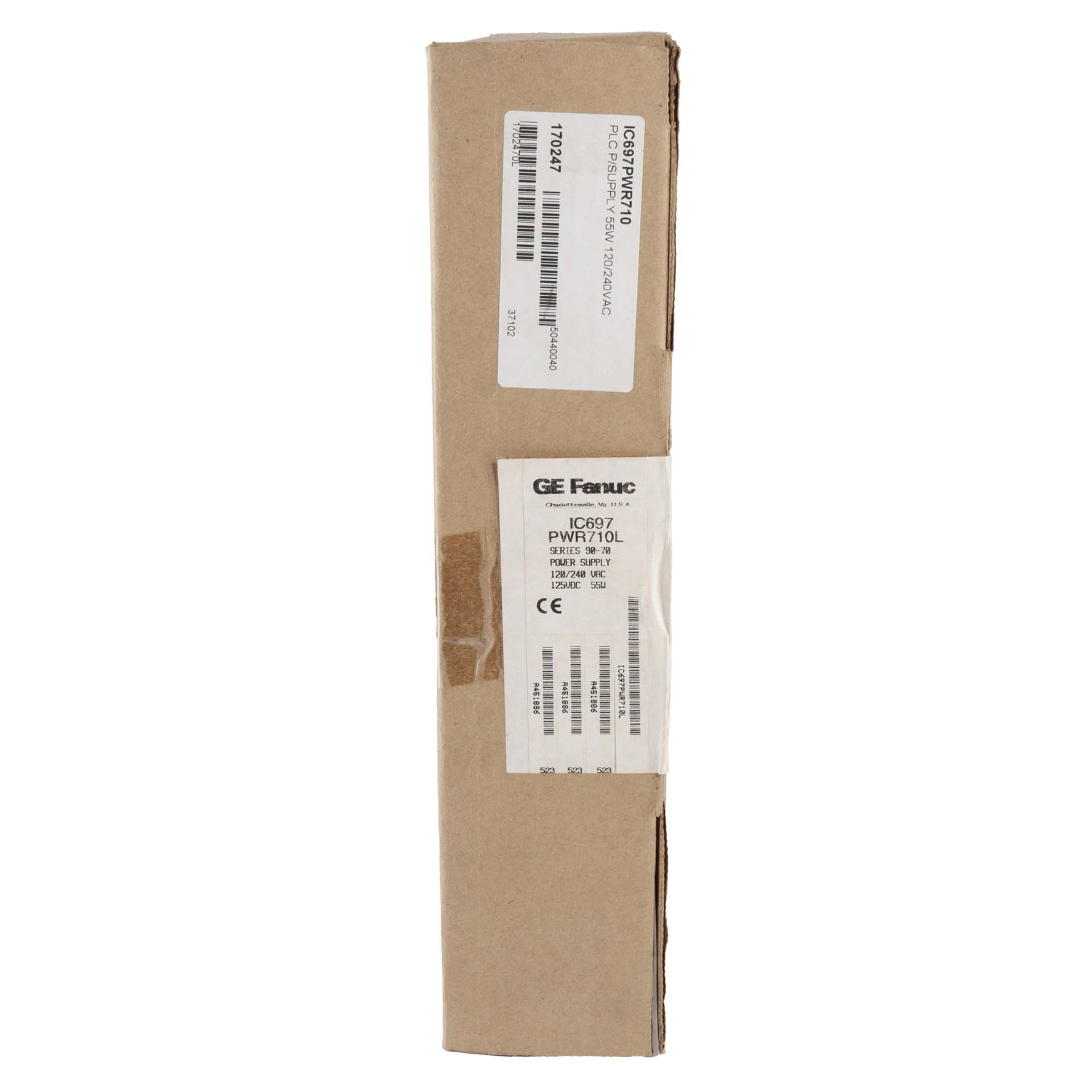

New In Box, Old Stock (NOS): This item is brand new, unused, and remains in its original factory packaging. As vintage/old stock, the outer box may show minor signs of shelf wear or aging, but the module inside is in pristine, uninstalled condition.

*Note on Revision: The "L" at the end of the part number (IC697PWR710L) indicates the hardware revision letter designated by the manufacturer. It functions interchangeably with the base IC697PWR710 model but represents a later production iteration with minor factory updates.
