Mini-Circuits MSP2T-18-12+
€49.00
Available, delivery time: 2-5 days
Condition: used
Stock: 10
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "Mini-Circuits MSP2T-18-12+"

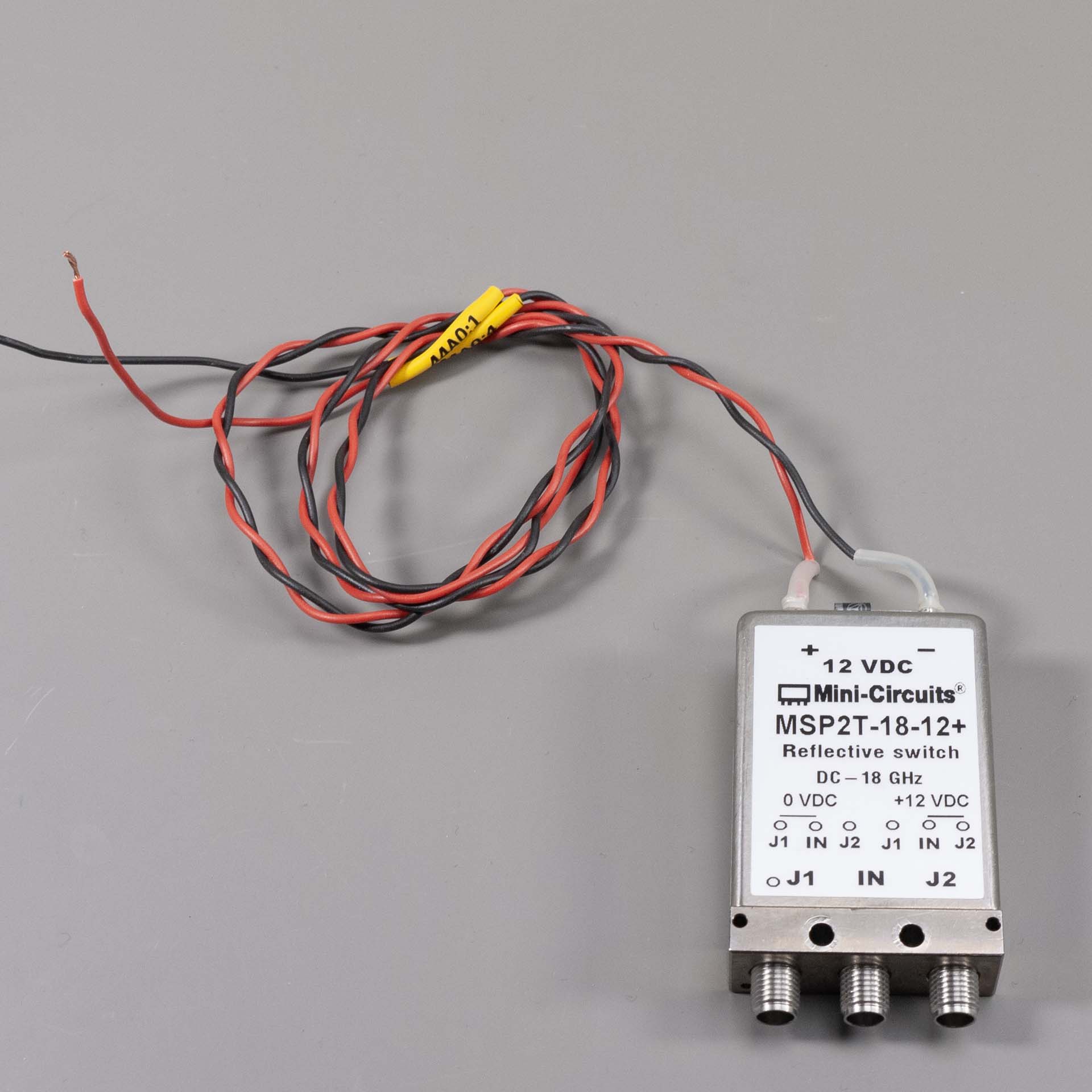

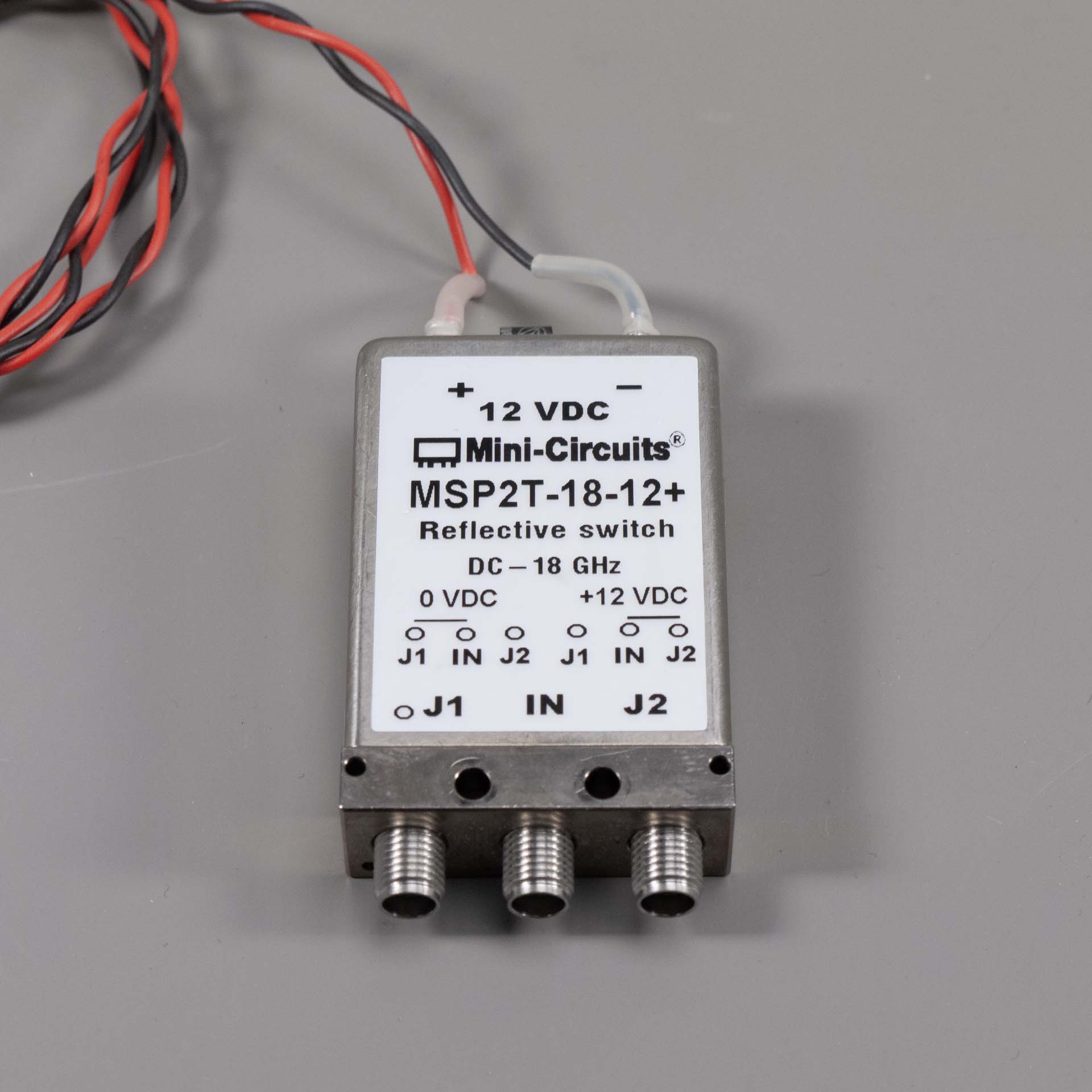

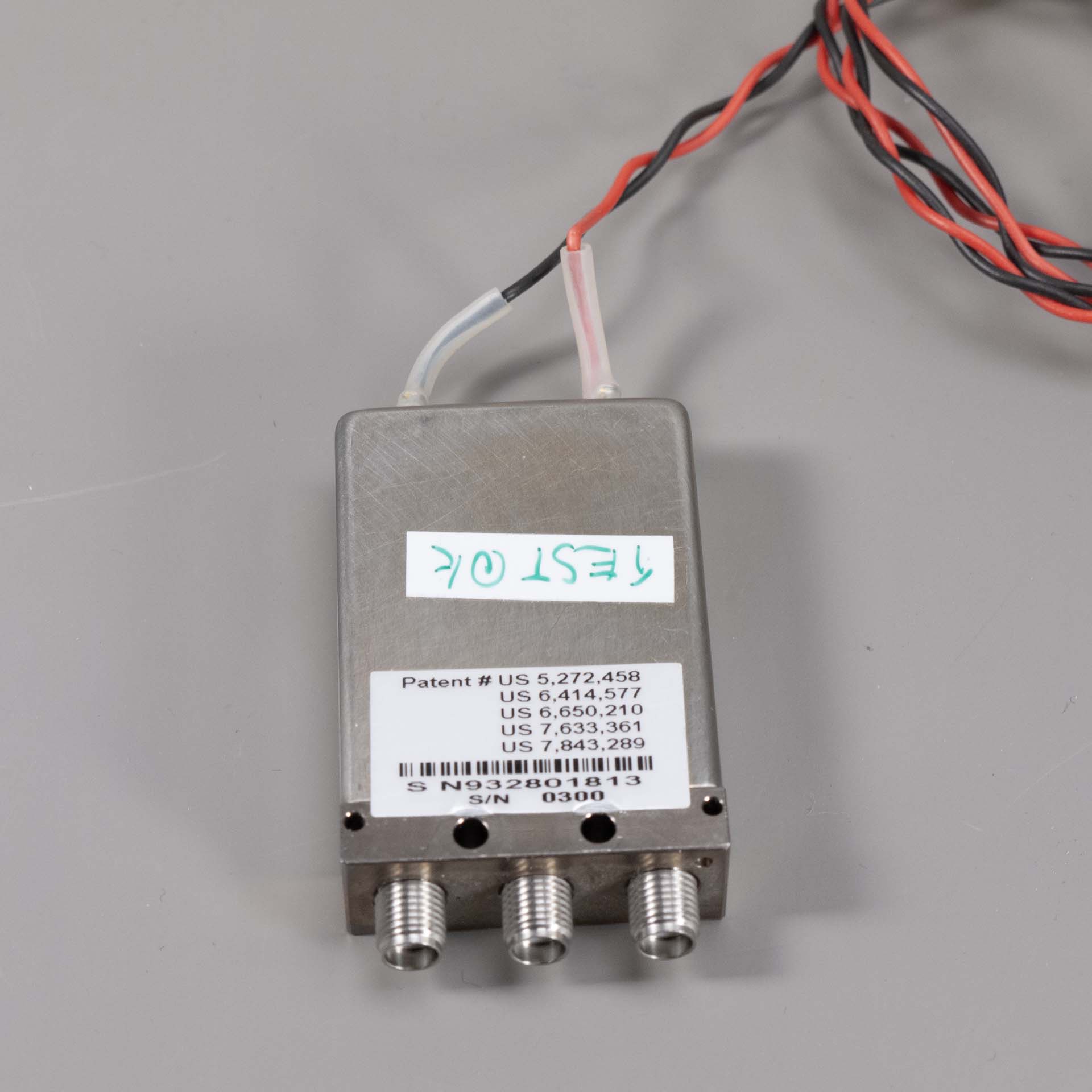

Mini-Circuits MSP2T-18-12+ DC to 18 Ghz SPDT RF Coaxial Relay Switch 12V
The video provided shows a functional test of one sample unit. All items are tested to the same standards.
Product Overview
The Mini-Circuits MSP2T-18-12+ is a high-performance, general-purpose mechanical RF switch. Featuring a reflective Single Pole Double Throw (SPDT) configuration, it is engineered for demanding microwave and RF applications up to 18 GHz. Known for its robust build, it delivers exceptionally low insertion loss and high isolation, making it ideal for precision lab environments, automated test equipment (ATE), and signal routing.
Key Technical Specifications
- Manufacturer: Mini-Circuits Part Number: MSP2T-18-12+
- Switch Type: Mechanical RF Switch
- Configuration: SPDT (Single Pole, Double Throw)
- Topology: Reflective Frequency Range: DC to 18 GHz Characteristic
- Impedance: 50 Ohms
- Control Voltage (Supply): 12V DC Insertion
- Loss: 0.3 dB (typical)
- Isolation (Off-State): 66 dB (typical)
- Operating Temperature Range: -15°C to +45°C
- Mounting Style: Chassis Mount / Screw Mount
Common Applications
- Automated Test Equipment (ATE)
- Lab and test bench setups
- RF signal chain routing and switching
- Microwave communication systems
-
Antenna matrix switching
Properties:
| Condition: | Used |
|---|
