Mitsubishi Electric FX3U-128MT/ESS
€349.00
Available, delivery time: 2-5 days
Condition: used
Stock: 1
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "Mitsubishi Electric FX3U-128MT/ESS"

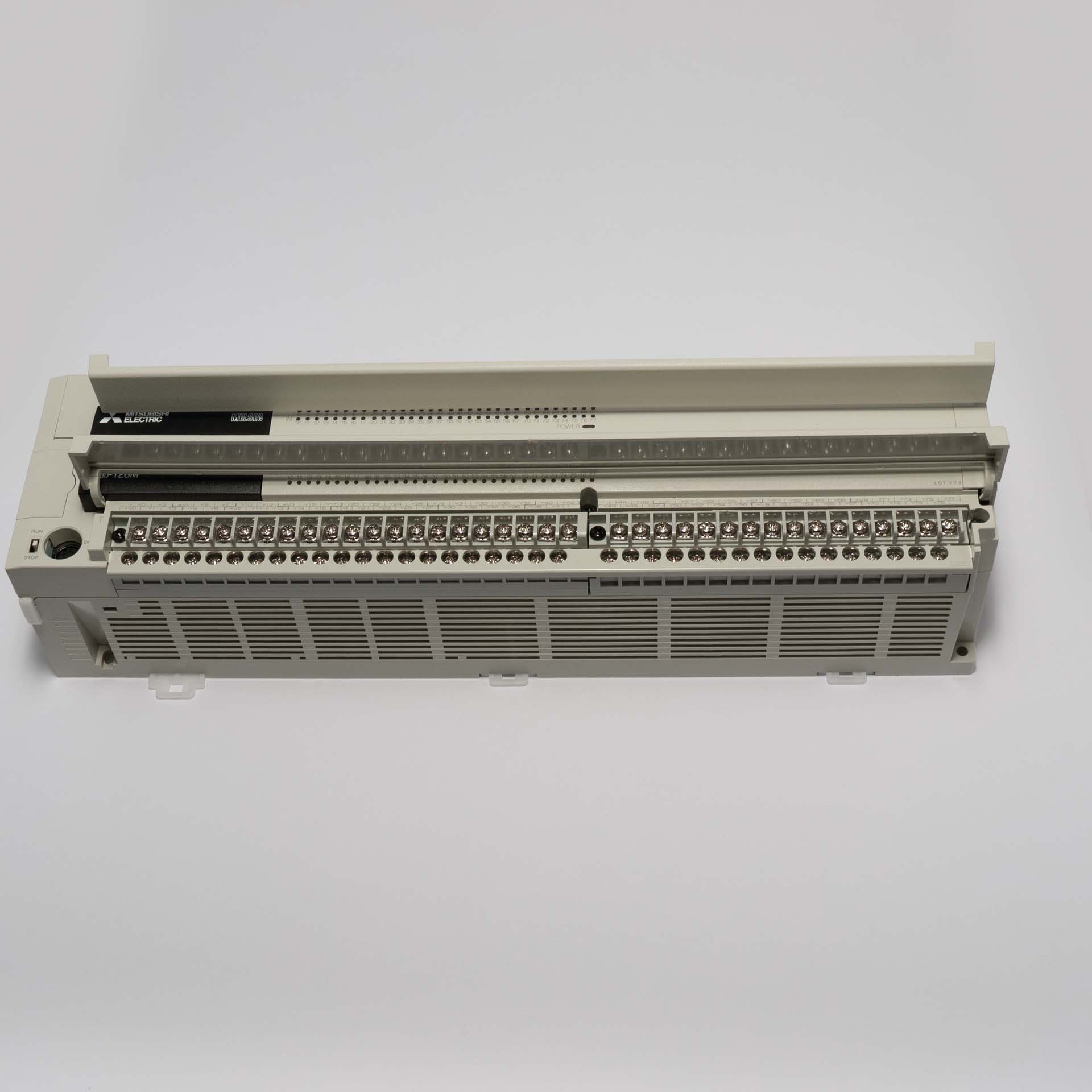

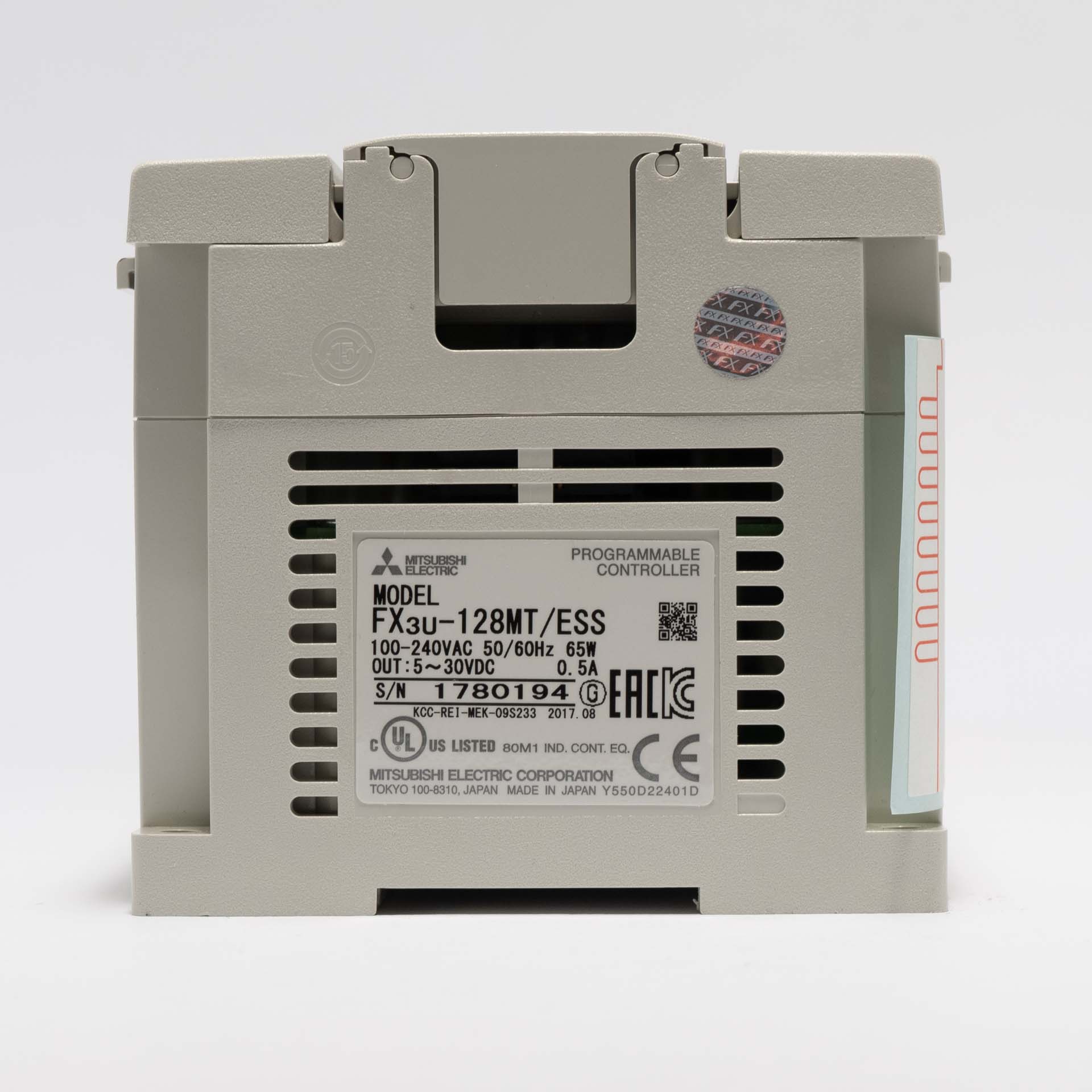

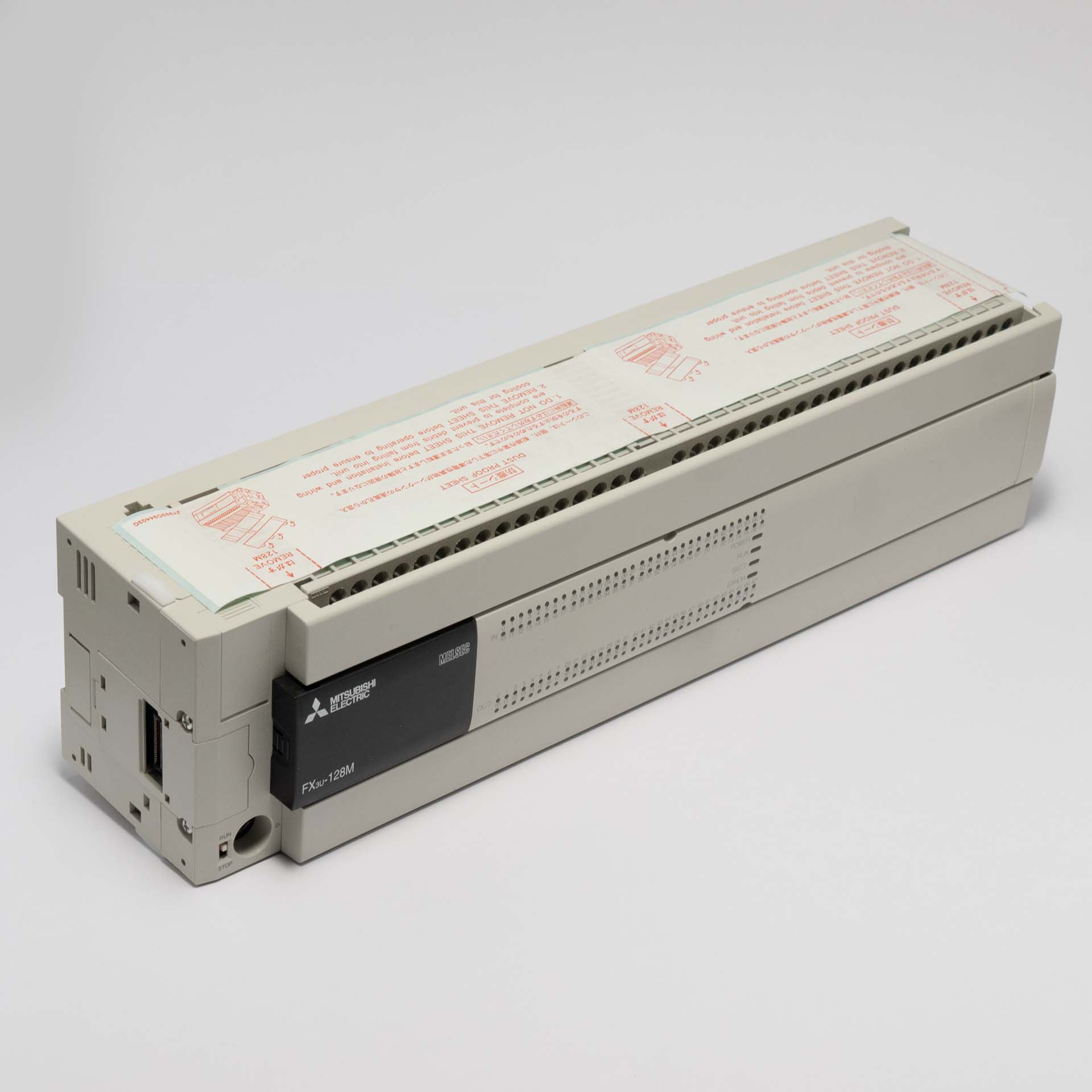

Mitsubishi Electric FX3U-128MT/ESS Programmable Logic Controller w/ FX3U-CNV-BD
The FX3U-128MT/ESS is a high-performance, third-generation compact PLC from the MELSEC-F series. Engineered for complex automation and motion control applications, this main unit delivers industry-leading processing speeds and robust expandability. This specific model features an AC power supply and source-type transistor outputs, optimized for high-speed switching, stepper/servo motor control, and seamless integration into European-style safety circuits.
Technical Specifications
- Total I/O Points: 128 local points (64 Inputs / 64 Outputs). Expandable up to 384 points via CC-Link or remote I/O.
- Power Supply: 100–240V AC (50/60 Hz).
- Input Configuration: 24V DC, Sink/Source selectable, allowing flexibility with various sensor types.
- Output Configuration: Transistor (Source type), ideal for high-frequency switching.
- Instruction Execution Speed: 0.065 µs per basic instruction for ultra-fast logic evaluation.
- Program Memory: 64,000 steps of internal RAM (battery backed); supports optional flash memory cassettes.
- High-Speed Counters: Up to 8 channels (max. 100 kHz) for precise encoder feedback.
- Positioning Control: Built-in 3-axis independent positioning with pulse output up to 100 kHz.
- Connectivity: Integrated RS-422 port for programming and HMI communication. Fully compatible with FX3U expansion boards and special function blocks (Ethernet, Profibus, CC-Link, analog I/O).
Ideal Applications
Packaging machinery, high-speed assembly lines, multi-axis positioning systems, and applications requiring precise synchronization and rapid cycle times.
Properties:
| Condition: | Used |
|---|
