Mitsubishi Electric FX3U-16CCL-M
€105.00
Available, delivery time: 2-5 days
Condition: used
Stock: 1
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "Mitsubishi Electric FX3U-16CCL-M"

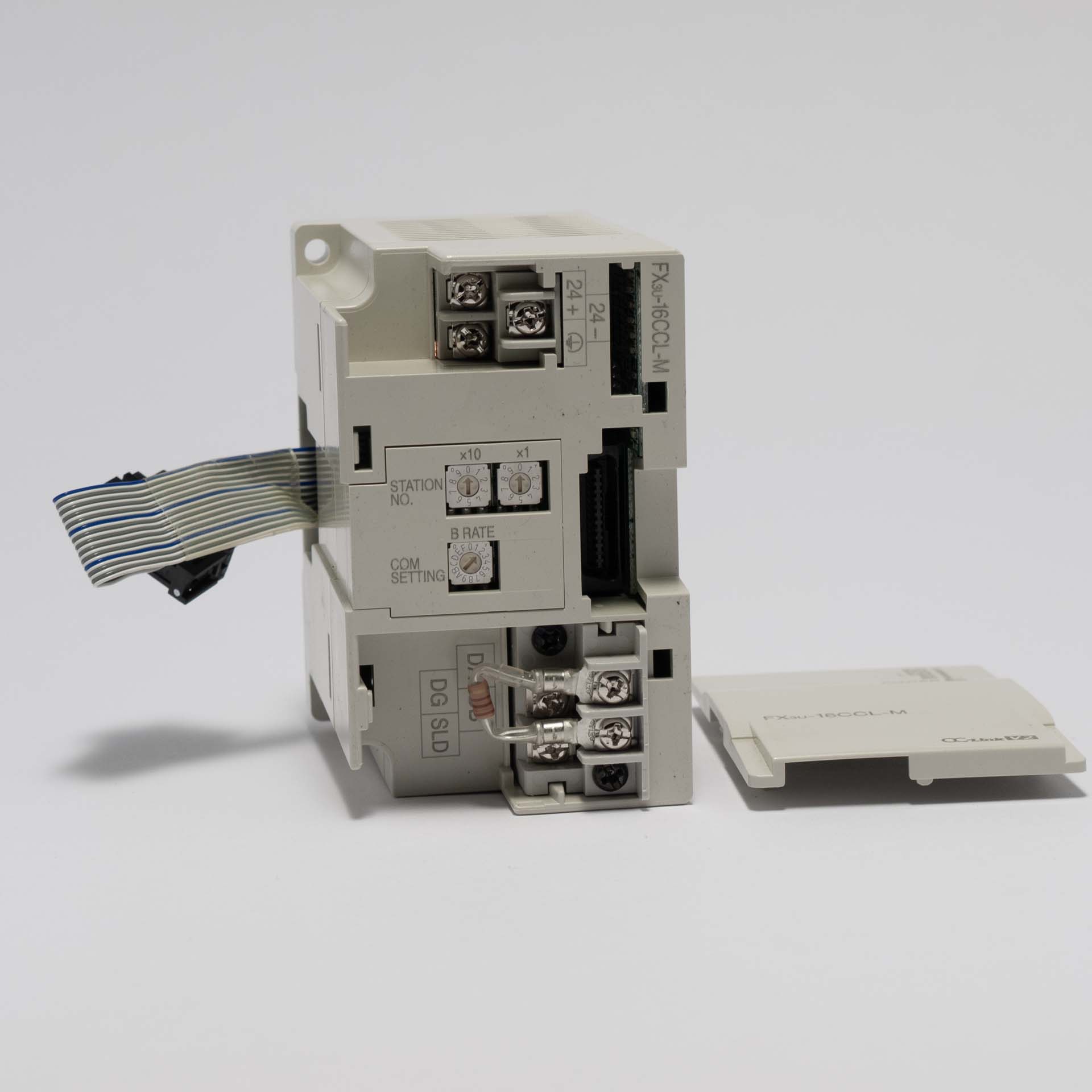

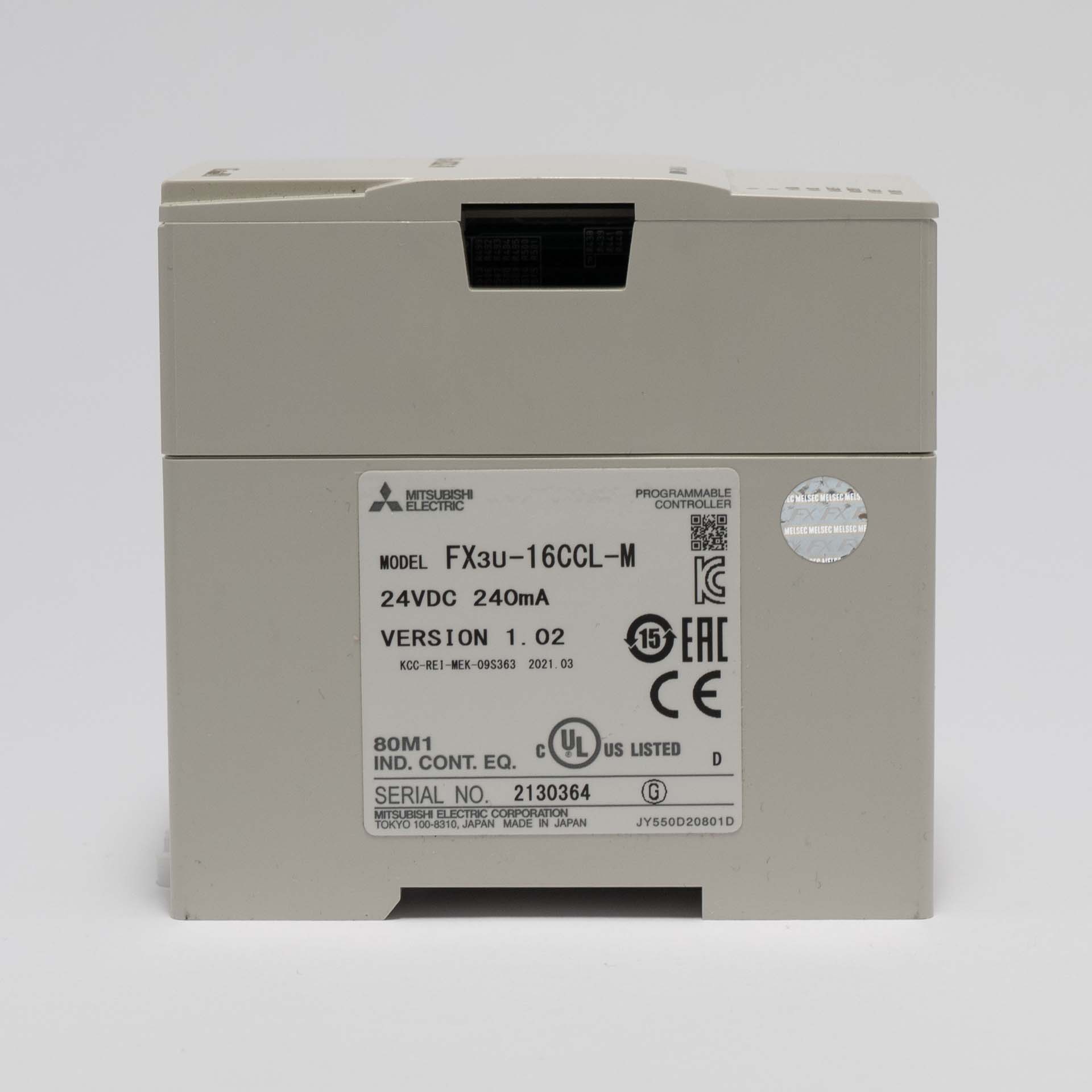

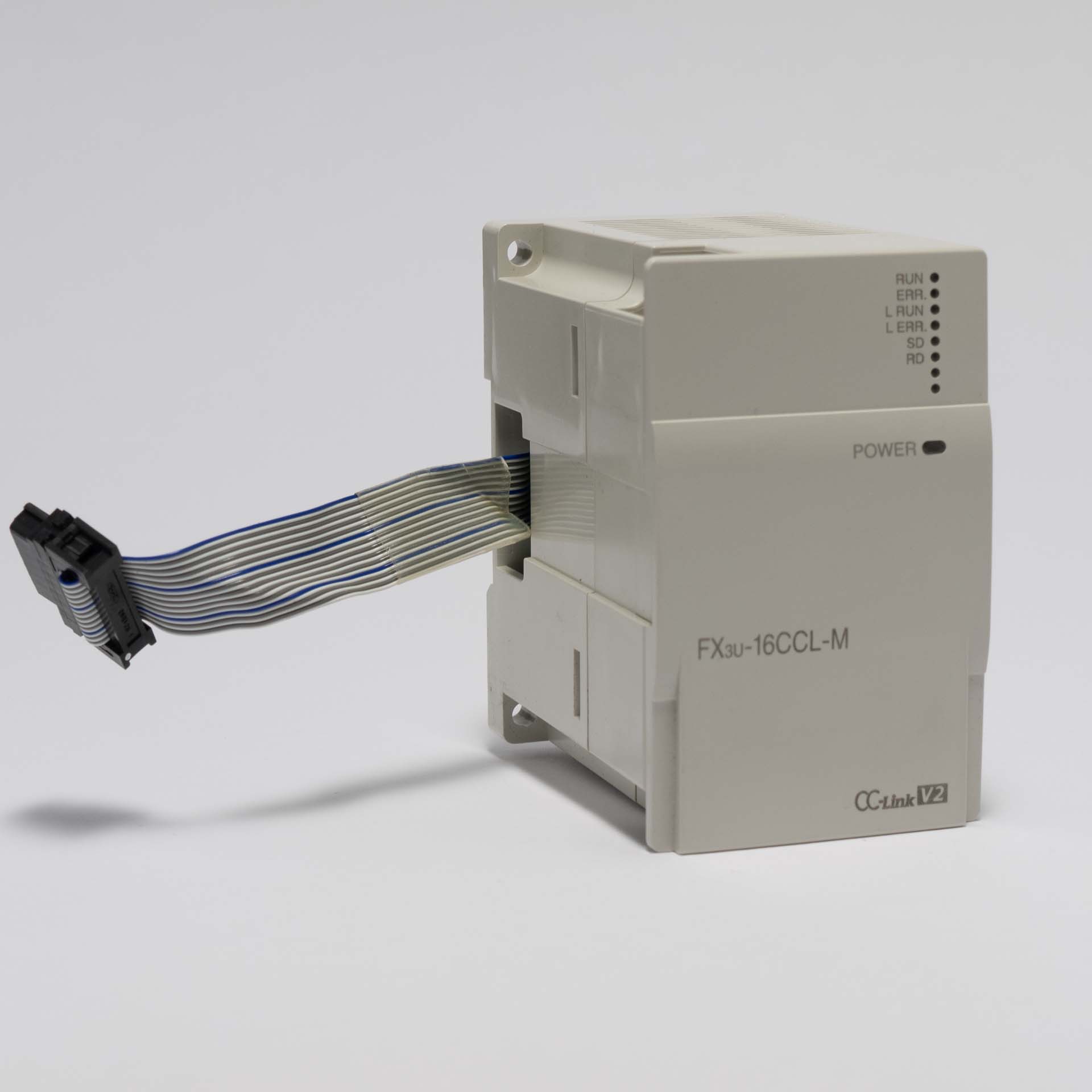

Mitsubishi Electric FX3U-16CCL-M CC-Link Master Block (Ver. 1.02)
Condition: Used. Inspected and pulled from a working industrial control system.The FX3U-16CCL-M (Version 1.02) is a dedicated CC-Link master module designed for the Mitsubishi MELSEC FX3 series. This expansion block allows the host PLC to function as a master station on a high-speed CC-Link fieldbus network. It is ideal for distributed control architectures, enabling seamless communication and control of remote I/O modules, variable frequency drives, HMIs, and intelligent device stations.
Key Technical Specifications
- Module Type: CC-Link Master Station
- CC-Link Compatibility: Version 2.00 and Version 1.10
- Transmission Speed: Selectable up to 10 Mbps
- Maximum Connected Stations: Up to 8 remote stations (depends on system configuration and station types)
- Communication Cable: Dedicated CC-Link shielded twisted pair cable
- Firmware Version: V1.02
Hardware Compatibility
- Supported PLCs: FX3U, FX3UC, FX3G, and FX3GC series base units.
- Installation: Connects to the right-side extension bus of the PLC or other right-side extension blocks.
- Power Supply: Receives power internally from the base unit; requires external 24V DC for the communication circuit.
Please consult the FX3U-16CCL-M User's Manual to verify power consumption limits on your PLC's internal 5V bus before adding this module to your system.
Properties:
| Condition: | Used |
|---|
