NI PXIe-1073 Rev. 1.3
€425.00
Available, delivery time: 2-5 days
Condition: used
Stock: 1
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "NI PXIe-1073 Rev. 1.3"

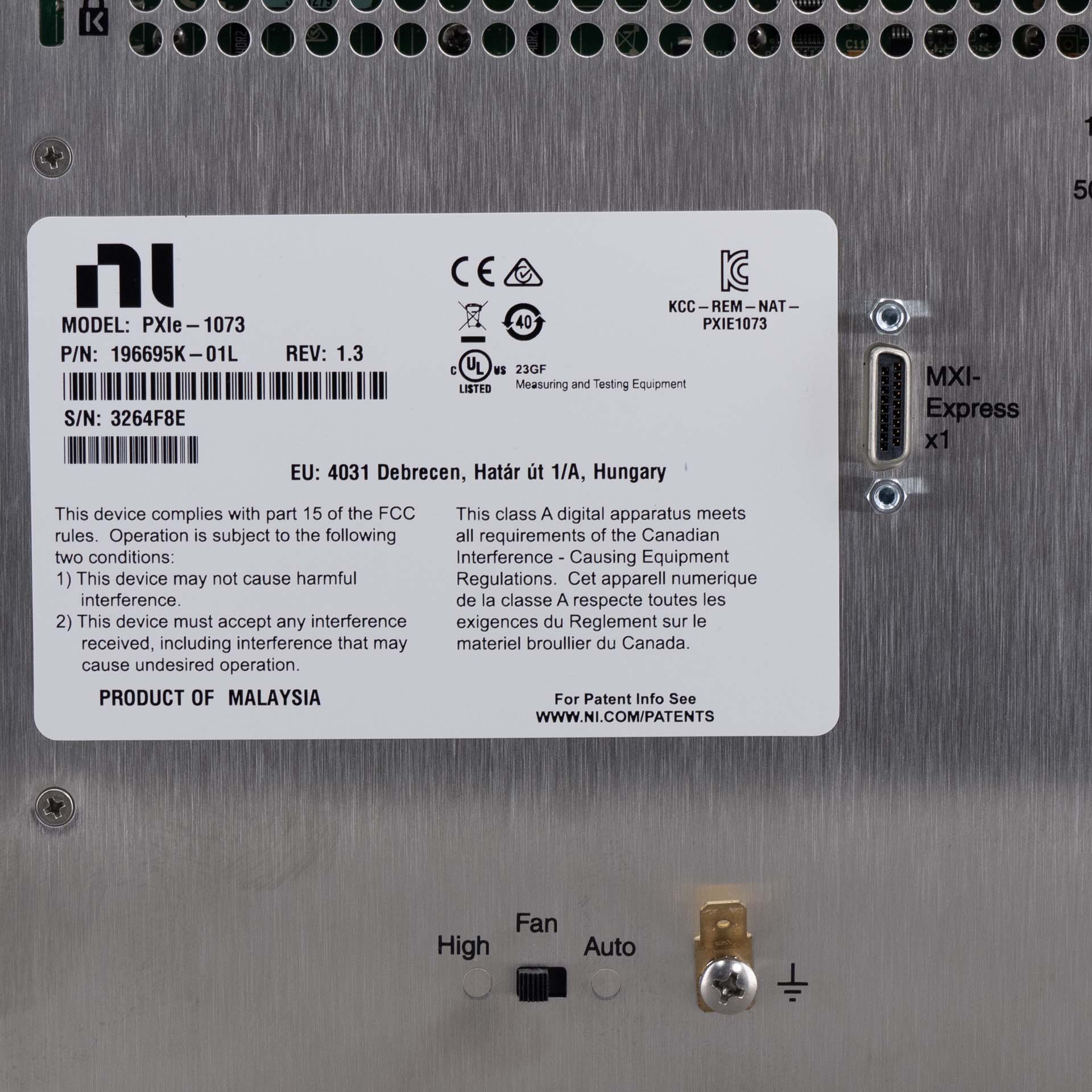

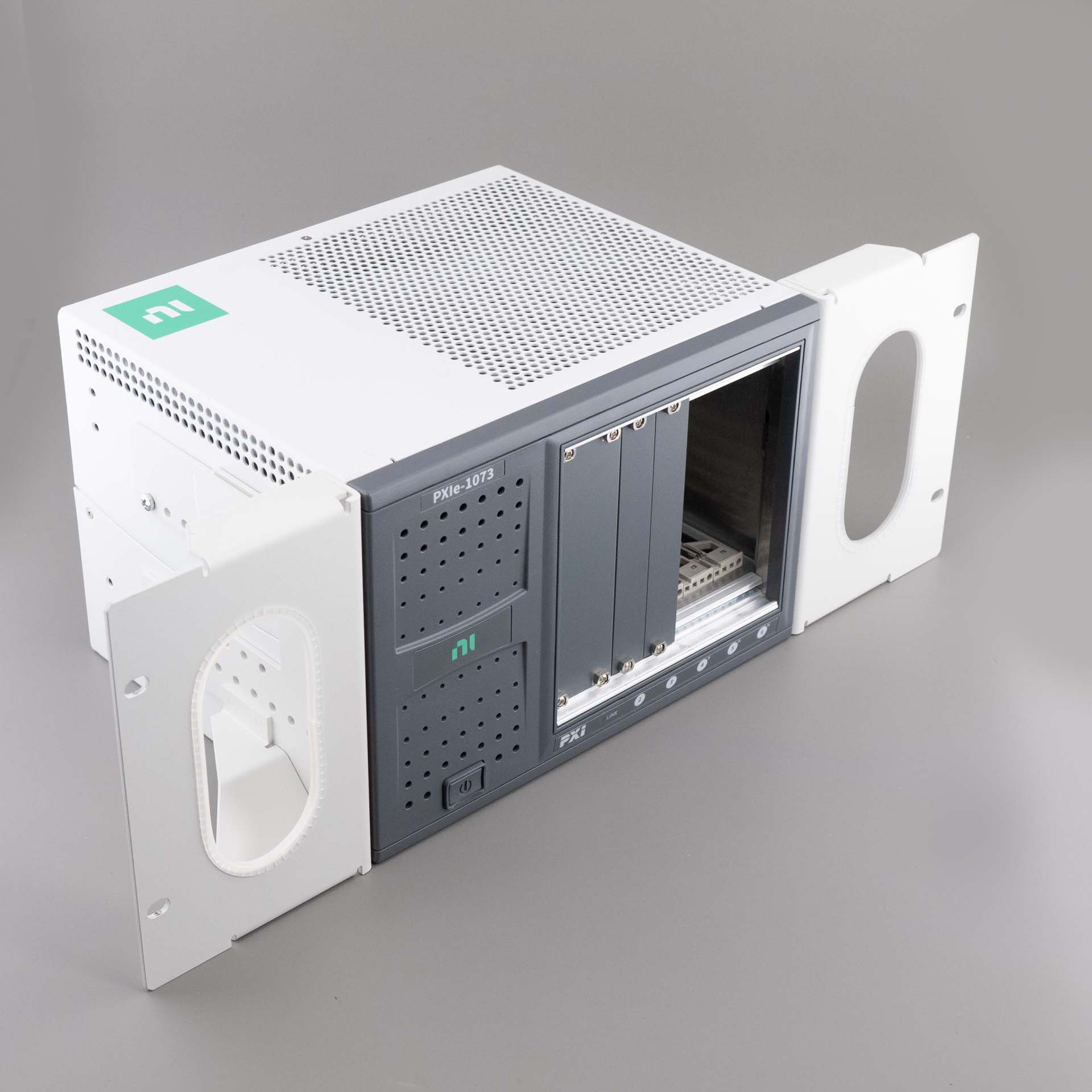

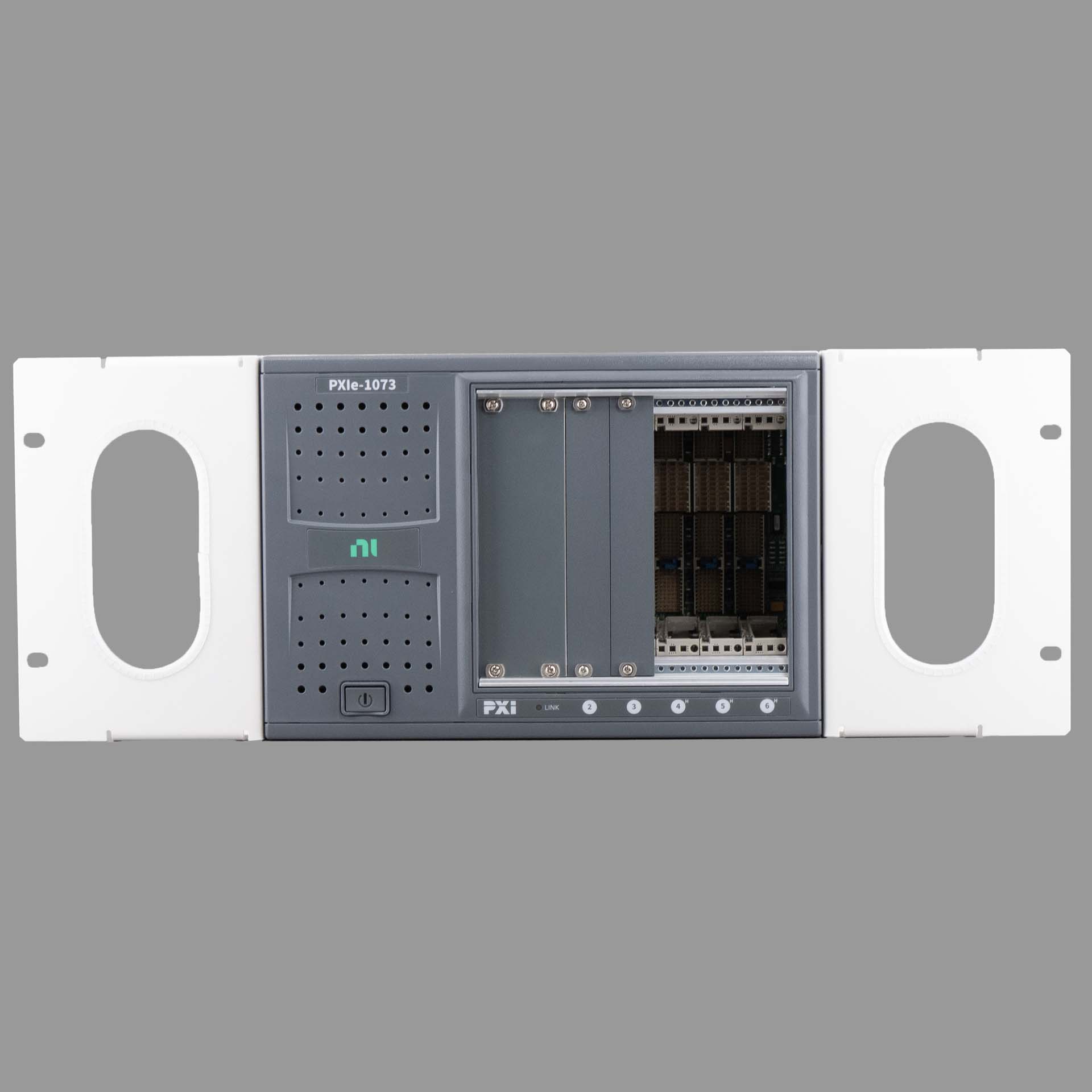

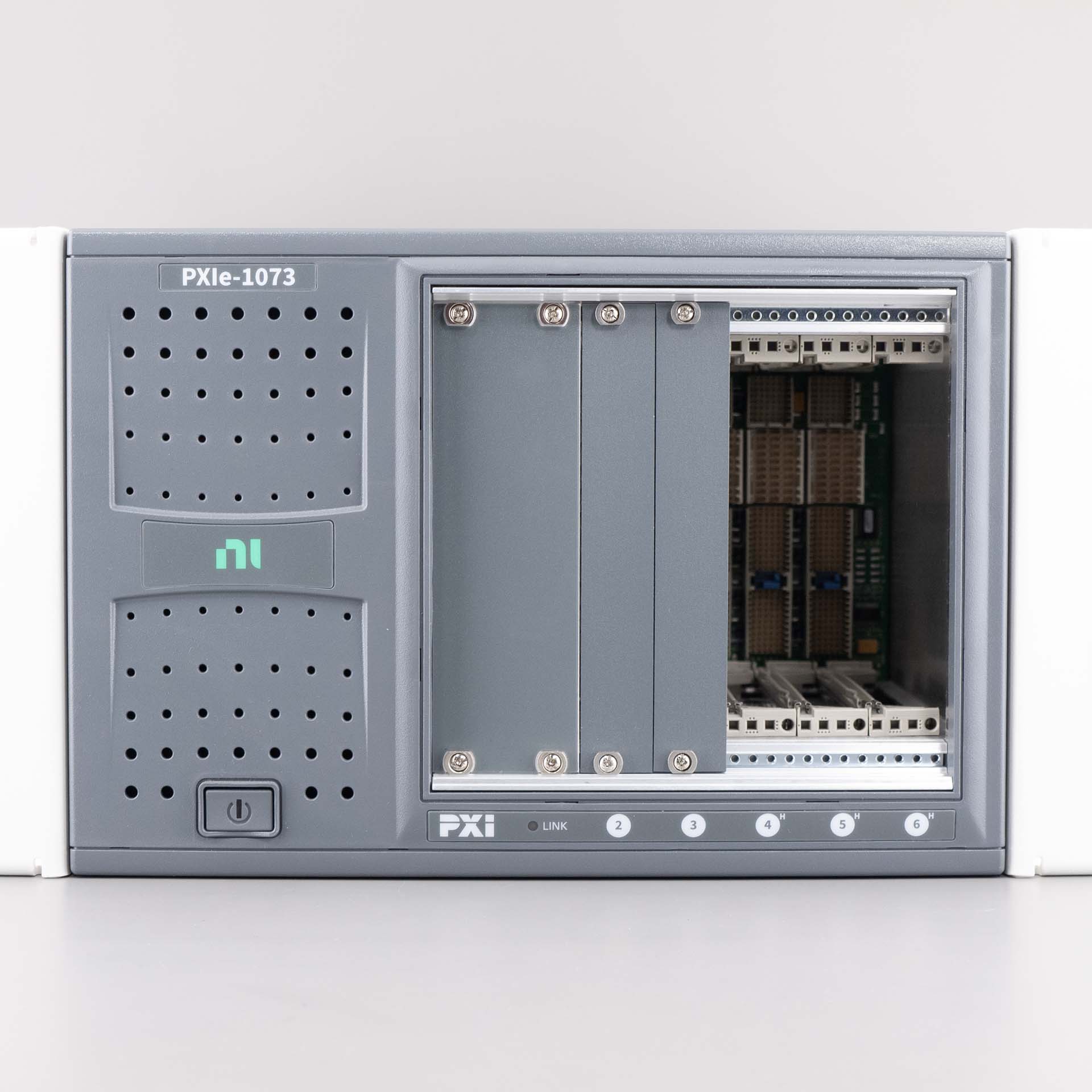

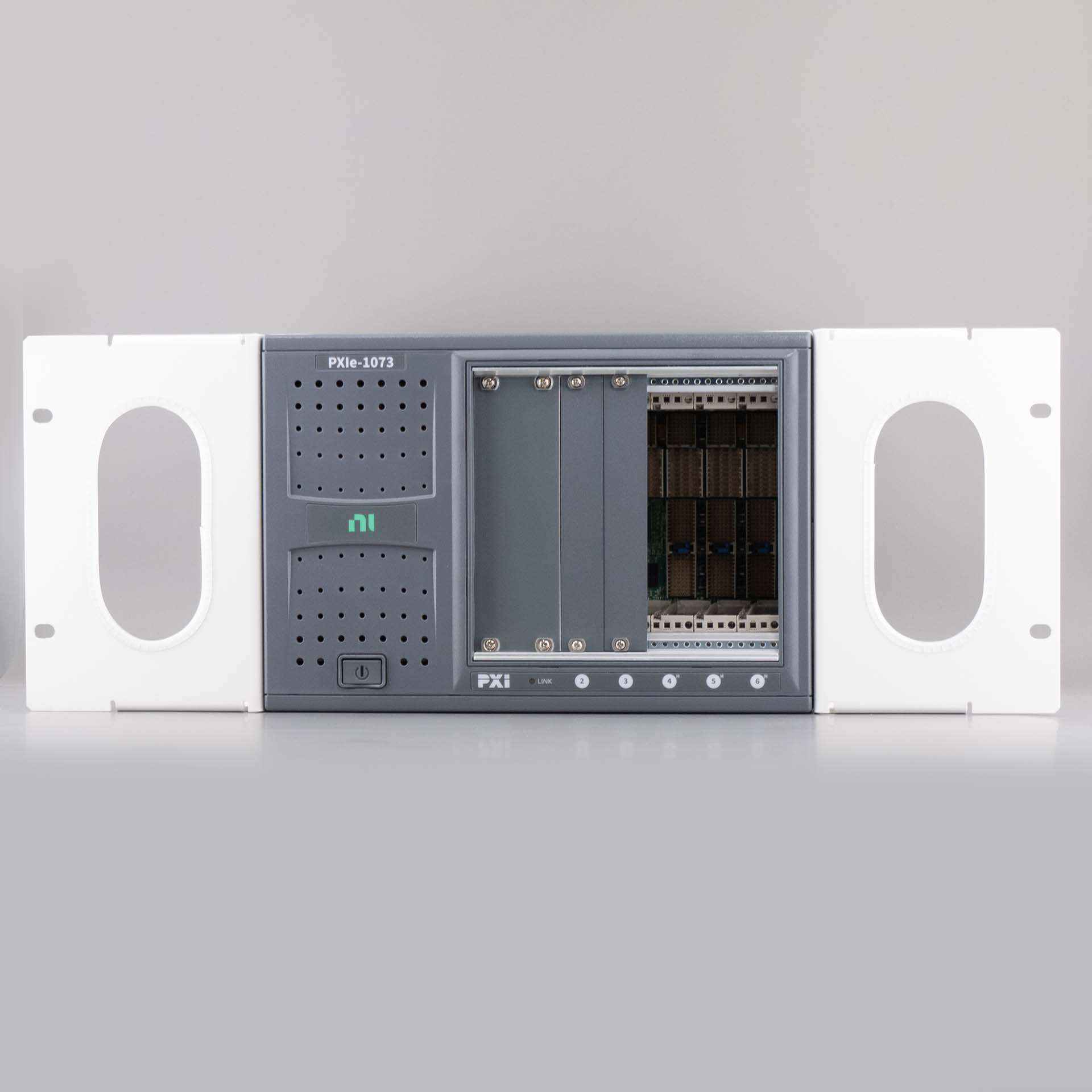

National Instruments NI PXIe-1073 Rev. 1.3 781163-01
5-Slot PXI Express Chassis with Integrated MXI-Express Controller (Used & Fully Tested)
Condition: Used, Bench-Tested, & Verified Working
This chassis has been pulled from a working laboratory environment and fully bench-tested by our technicians. Testing included: Power supply verification, backplane voltage checks across all slots, and successful chassis identification via NI MAX using an external host PC. Cosmetics: Exhibits minor scuffs and scratches typical of normal rack/bench use, but structural integrity and backplane connectors are in excellent condition with no bent pins.
Product Overview
The NI PXIe-1073 is designed for high-performance, low-cost PXI Express systems. It uniquely features an integrated MXI-Express controller built directly into the chassis, leaving all 5 peripheral slots available for measurement modules. It is an ideal foundation for automated test equipment (ATE), data acquisition, and control systems requiring up to 250 MB/s of dedicated bandwidth per slot.
Technical Specifications
| Slot Configuration | 5 slots (2x PXIe + 3x PXI Hybrid) |
| Backplane Bandwidth | Up to 250 MB/s per-slot dedicated bandwidth |
| System Controller | Integrated MXI-Express (PCIe x1) interface (No slot 1 controller required) |
| Cooling Capacity | 30 W per slot cooling capacity with auto/high fan speed switch |
| Clocking & Triggers | Integrated 10 MHz and 100 MHz reference clocks; PXI trigger bus |
| Acoustic Noise | As low as 43.6 dBA (Auto fan mode) |
📦 What's Included:
- (1) NI PXIe-1073 5-Slot Chassis
⚠️ Please Note:
- PCIe Host Card & MXI Cable are NOT included. You will need a compatible host card (e.g., PCIe-8361) and a standard MXI-Express copper cable to connect this to a PC.
- Slot blockers/filler panels are only included if pictured.
Properties:
| Condition: | Used |
|---|
