National Instruments
National Instruments NI PXIe-1073 Rev. 1.3 781163-01 5-Slot PXI Express Chassis with Integrated MXI-Express Controller (Used & Fully Tested) Condition: Used, Bench-Tested, & Verified Working This chassis has been pulled from a working laboratory environment and fully bench-tested by our technicians. Testing included: Power supply verification, backplane voltage checks across all slots, and successful chassis identification via NI MAX using an external host PC. Cosmetics: Exhibits minor scuffs and scratches typical of normal rack/bench use, but structural integrity and backplane connectors are in excellent condition with no bent pins. Product Overview The NI PXIe-1073 is designed for high-performance, low-cost PXI Express systems. It uniquely features an integrated MXI-Express controller built directly into the chassis, leaving all 5 peripheral slots available for measurement modules. It is an ideal foundation for automated test equipment (ATE), data acquisition, and control systems requiring up to 250 MB/s of dedicated bandwidth per slot. Technical Specifications Slot Configuration 5 slots (2x PXIe + 3x PXI Hybrid) Backplane Bandwidth Up to 250 MB/s per-slot dedicated bandwidth System Controller Integrated MXI-Express (PCIe x1) interface (No slot 1 controller required) Cooling Capacity 30 W per slot cooling capacity with auto/high fan speed switch Clocking & Triggers Integrated 10 MHz and 100 MHz reference clocks; PXI trigger bus Acoustic Noise As low as 43.6 dBA (Auto fan mode) 📦 What's Included: (1) NI PXIe-1073 5-Slot Chassis ⚠️ Please Note: PCIe Host Card & MXI Cable are NOT included. You will need a compatible host card (e.g., PCIe-8361) and a standard MXI-Express copper cable to connect this to a PC. Slot blockers/filler panels are only included if pictured.

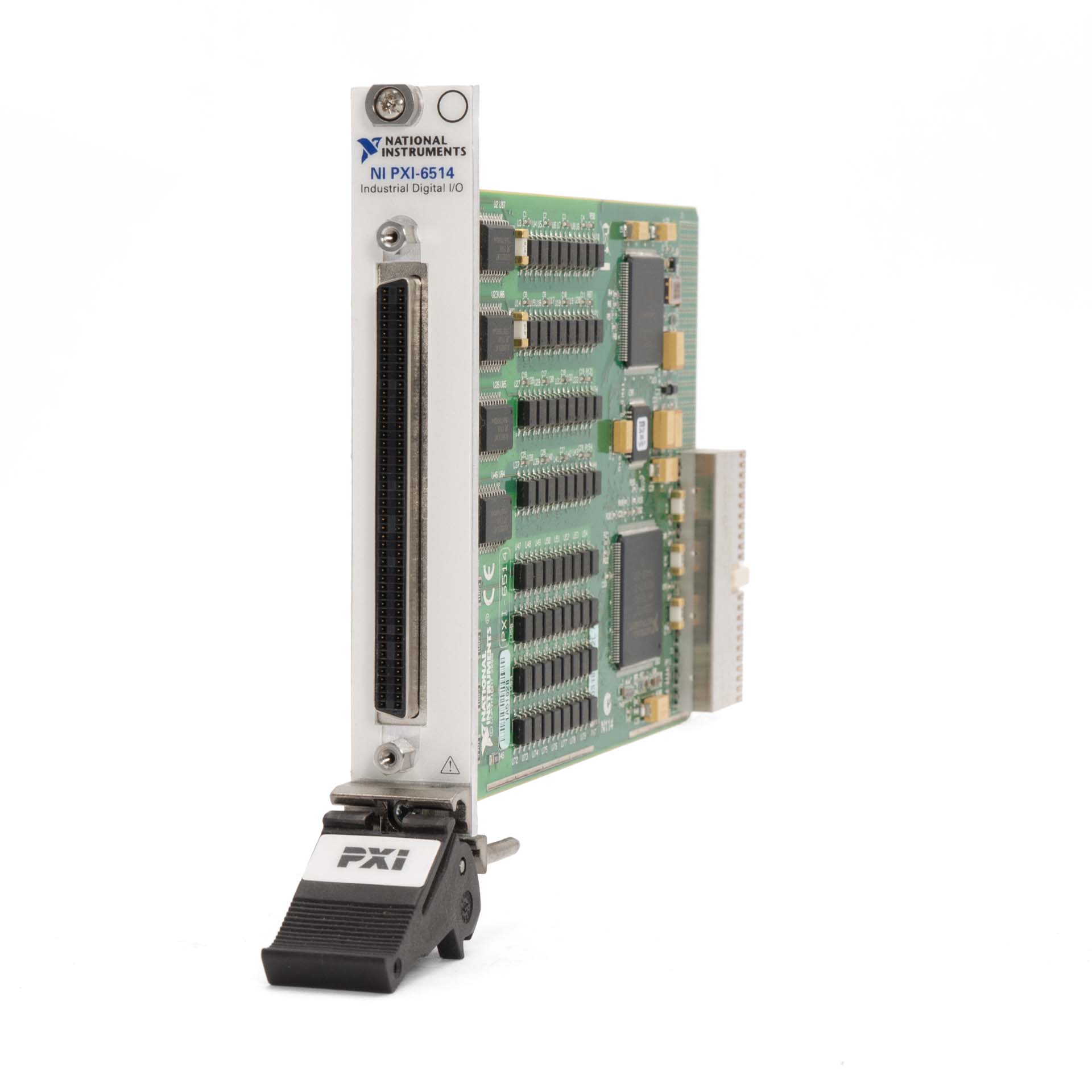

National Instruments NI PXI-6514 | 778965-01 | 64-Channel, ±30 VDC, Bank-Isolated Industrial Digital I/O Module Product Overview The National Instruments PXI-6514 is a high-density, industrial digital I/O module designed for PXI/CompactPCI systems. Featuring 64 bank-isolated channels (32 input, 32 output), this module is built for automated test equipment (ATE), industrial control, and manufacturing environments where high reliability and electrical isolation are required. With programmable power-up states, digital filtering, and watchdog timers, the PXI-6514 ensures safe and predictable operation even in harsh electrical conditions. Key Features & Specifications Total Channels: 64 Digital Channels (32 Sinking/Sourcing Inputs, 32 Sourcing Outputs) Voltage Range: ±30 VDC Output Drive: Up to 350 mA per channel (single-channel), allowing direct control of relays, actuators, and solenoids. Isolation: Bank-isolated (ideal for breaking ground loops and protecting systems from voltage spikes in noisy industrial environments). Advanced Features: Programmable Power-Up States: Ensures valves, relays, and other outputs default to a known, safe state when the system boots. Digital Filtering: Eliminates glitches and noise on input channels (software-selectable). Watchdog Timers: Hardware-level protection that forces outputs to a safe state if the computer or software crashes. Change Detection: Hardware-timed interrupts for monitoring state changes without constant software polling. Connector Type: 100-pin high-density SCSI connector. Compatibility: Fully compatible with NI-DAQmx, LabVIEW, LabWindows/CVI, and C/C++. Typical Applications Automated Test Equipment (ATE) manufacturing test systems. Interfacing with heavy-duty industrial machinery, pumps, and motors. Controlling solid-state relays (SSRs) and reading industrial sensors. Automotive and aerospace validation testing. Condition & What’s Included Condition: Used, pulled from a working environment Included: NI PXI-6514 Module only. (Note: Cables and terminal blocks like the 182762D-02 TYPE R1005050 are not included).
NI PXI-6229 Versatile Multifunction DAQ ModulCore Features: Analog I/O, correlated digital I/O, and digital triggering. Timing & Counting: Equipped with two integrated 32-bit counter/timers.Expandability: Easily add sensor and high-voltage capabilities using SCC or SCXI signal conditioning modules. Software: Streamline your setup and measurements with the industry-standard NI-DAQmx driver and configuration utility. Ideal Applications: A low-cost, reliable choice for lab automation, R&D, design verification, and manufacturing testingData Acquisition: 16-Bit, 250 kS/s, 32 AI, 48 DIO 32 AI (16-Bit, 250 kS/s) 4 AO48 DIO
National Instruments 192061C-02 SHC68-68-EPM 2 Meter Cable68-Pin VHDCI Male to 68-Pin SCSI FemaleTwisted Pair Shielded Multifunction Cablewith handy breakout board
National Instruments NI PXIe-4081 783130-01 7½-Digit PXI Digital Multimeter (DMM) | TESTED w/ Video Condition Summary Used, and tested for basic functions. This module was recently pulled from a working automated test equipment (ATE) environment. It has been installed in our test chassis, successfully passed all NI-MAX self-tests, and verified for basic measurement accuracy across multiple ranges. Product Overview The NI PXIe-4081 is the industry’s most accurate 7½-digit PXI digital multimeter. Designed for high-performance test systems, it combines the measurement capabilities of a high-resolution DMM with an isolated, high-voltage digitizer. Whether you are performing precision DC voltage measurements, capturing transient signals, or building a high-channel-count data acquisition system, this module delivers benchtop accuracy in a single-slot PXI Express form factor. Key Technical Specifications Bus Type: PXI Express (PXIe) Resolution: 7½ Digits (DC/AC Voltage, DC/AC Current, 2- or 4-Wire Resistance) Digitizer Sampling Rate: Up to 1.8 MS/s (Isolated) Max Input Voltage: ±1000 VDC (700 VAC rms) Resistance Measurement Range: 10 Ω to 10 GΩ Additional Functions: Frequency/Period measurements, Diode test, and Temperature measurements (RTD, Thermistor, Thermocouple) Part Number: 783130-01HW Revision: CTesting & Quality Assurance As technical professionals, we know you can't afford dead-on-arrival lab equipment. Self-Test: Passed standard NI Measurement & Automation Explorer (MAX) self-test routines. Functional Test: Basic validation performed using voltage and resistor. Cosmetic Condition: Excellent. Clean connector pins, no bent ejector handles, and no signs of thermal damage or burnt components. With video of basic test in the 7 1/2 resolution range.
National Instruments 182762D-02 R1005050 Ribbon Cable 2M100-Pin D-SUB Male to 50-Pin IDC Female/50-Pin IDC Female1 Ribbon Connection Ribbon Cable

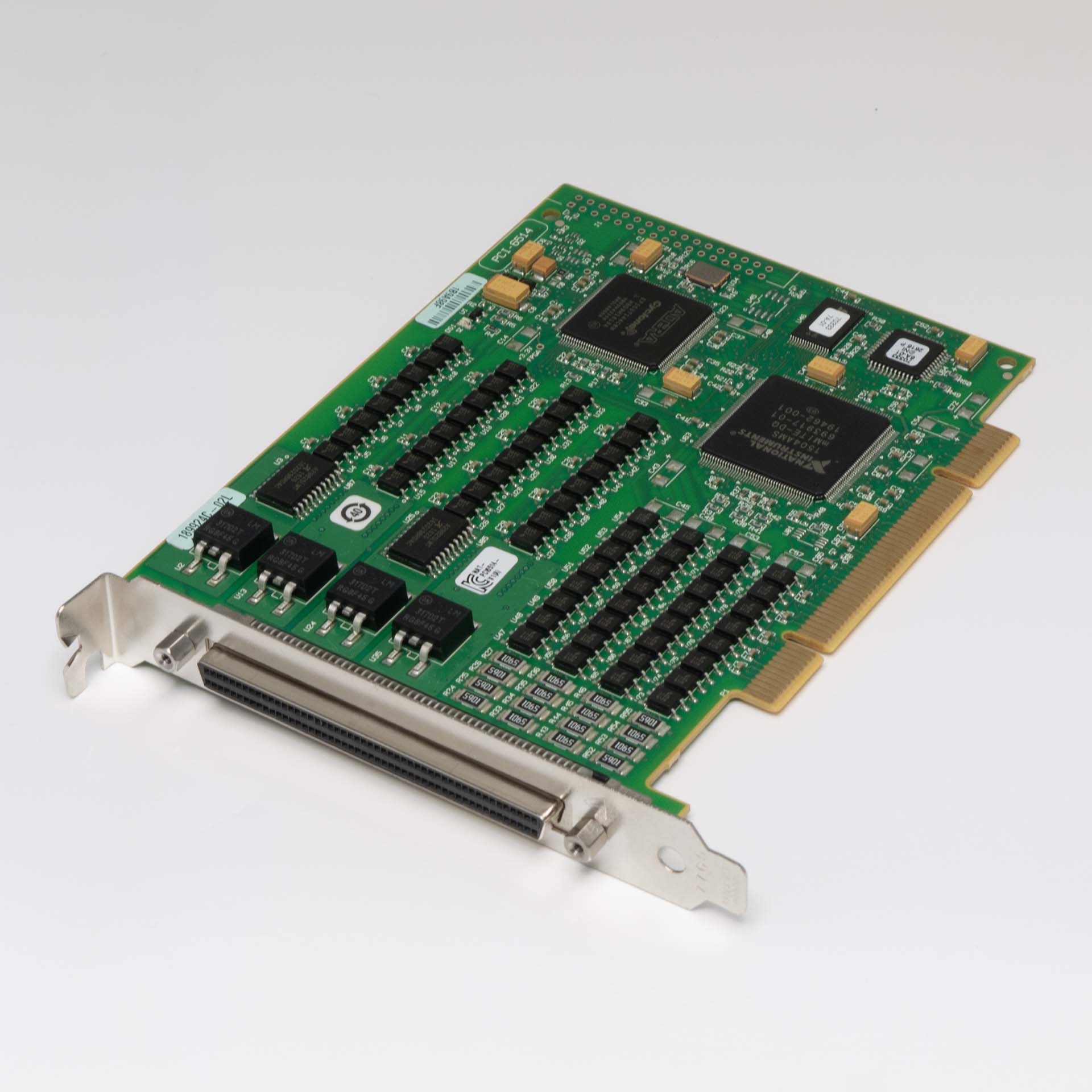

National Instruments NI PCI-6514 PCI6514 Industrial 32 DI, 32 Source DO Isolated DIO & NI-DAQ

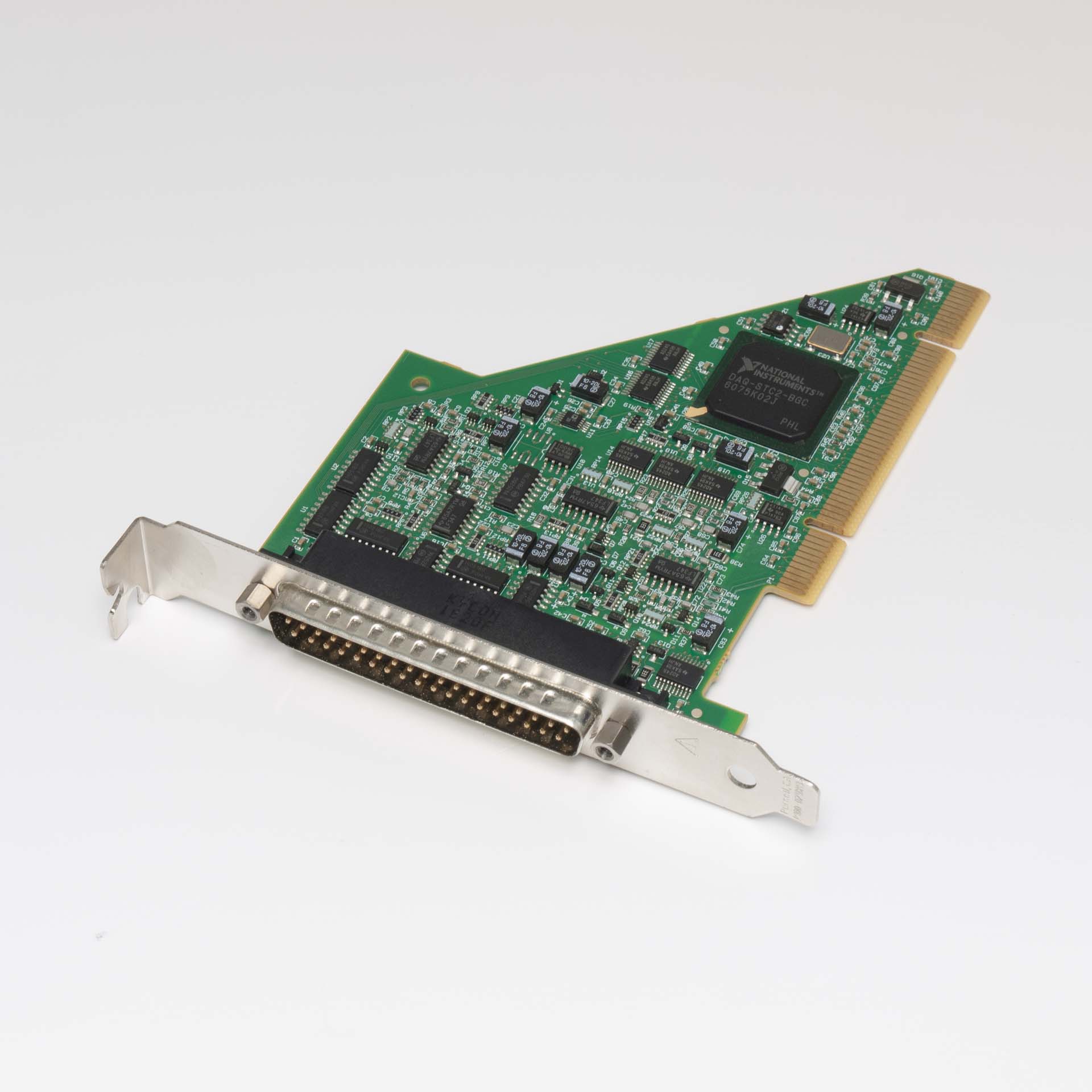

National Instruments NI PCI-6010 16 AI (16-Bit, 200 kS/s), 2 AO, 6 DI, 4 DO, PCI Multifunction I/O Device

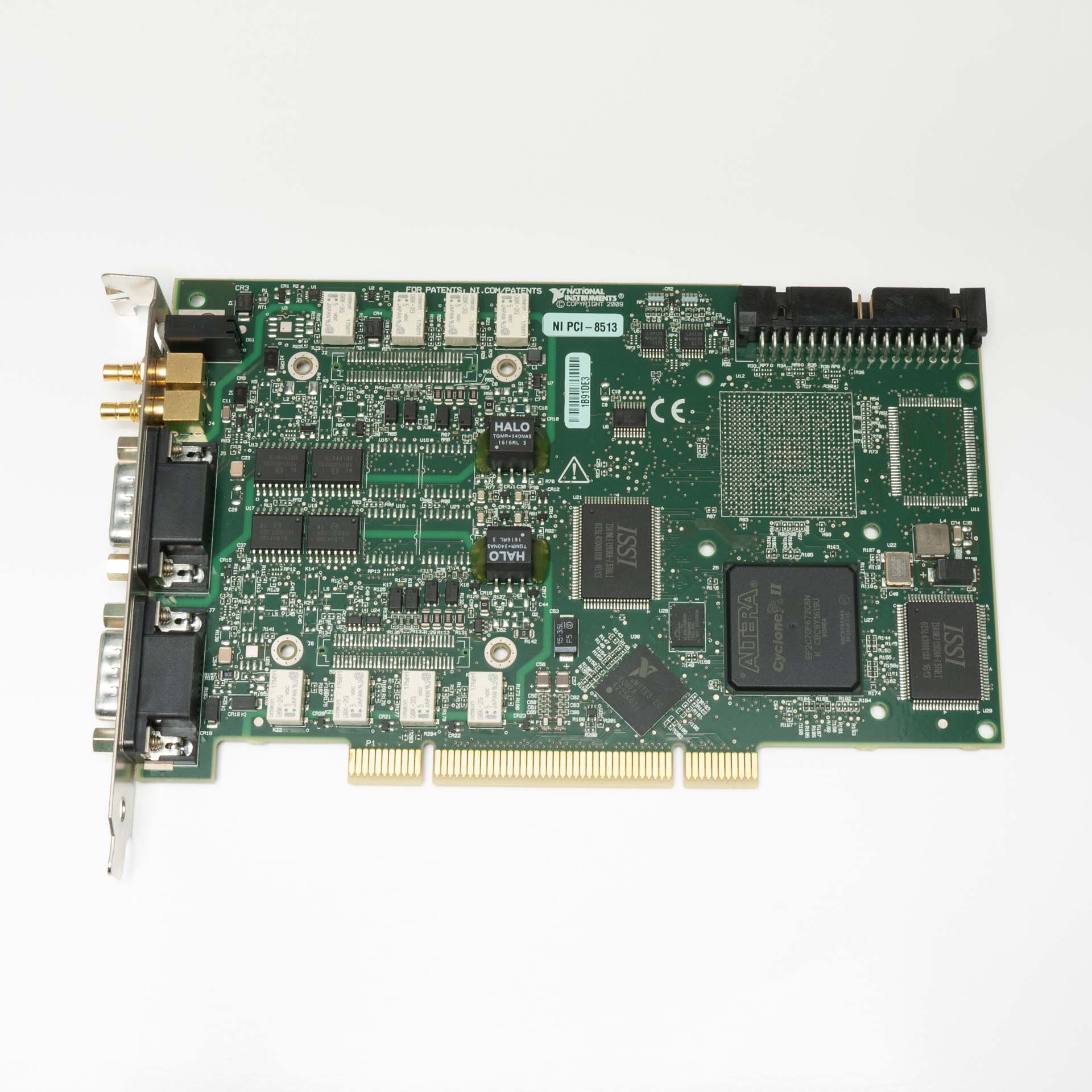

National Instruments NI PCI-85132-Port Software-Selectable/FD Can Interface DevicePCI8513-2(A) 198980E-42L

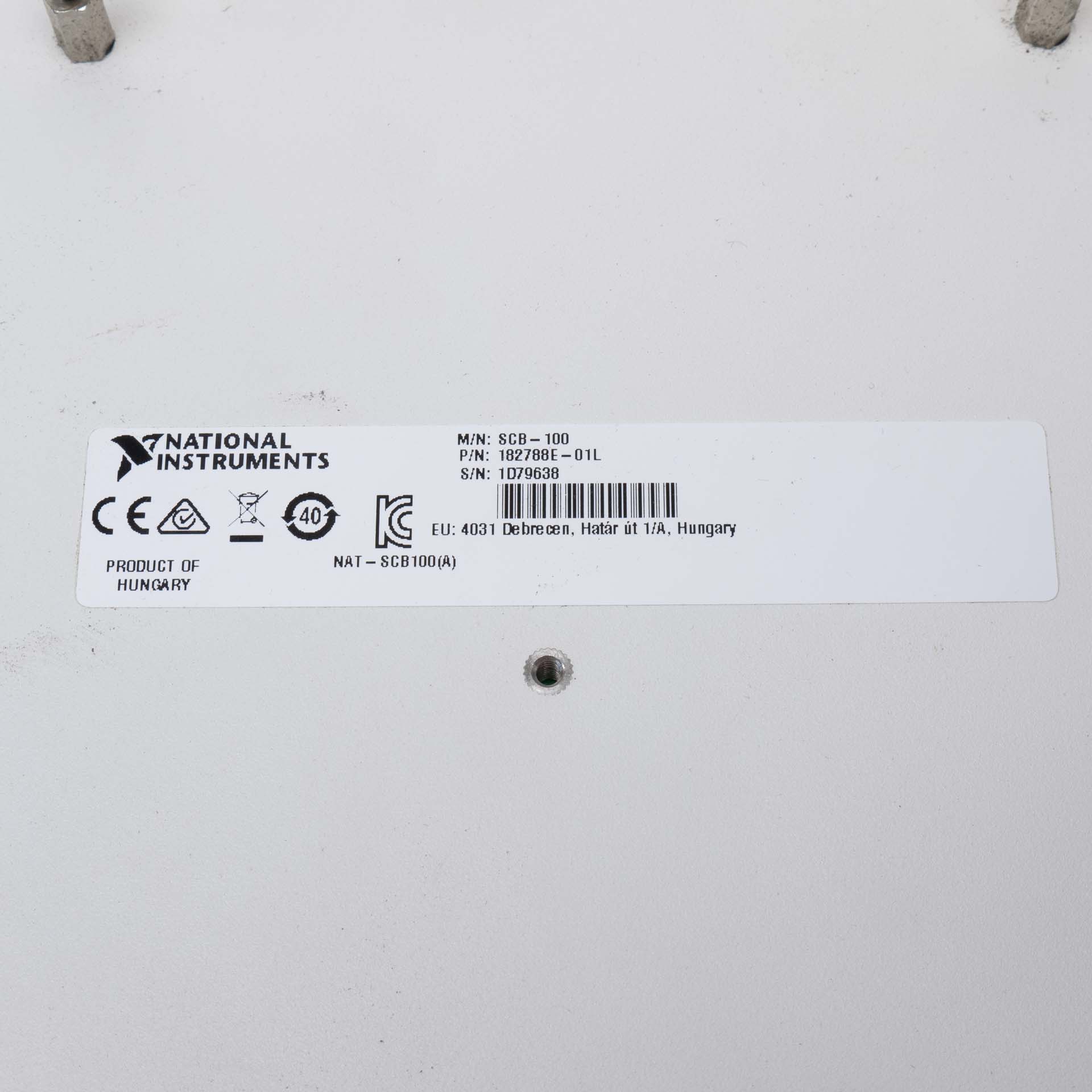

National Instruments SCB-100 shielded I/O connector block for interfacing I/O signals
National Instruments PXI-651464-Channel, ±30 VDC, 32 Sink/Source Inputs, 32 Source Outputs, Bank-Isolated PXI Digital I/O Module

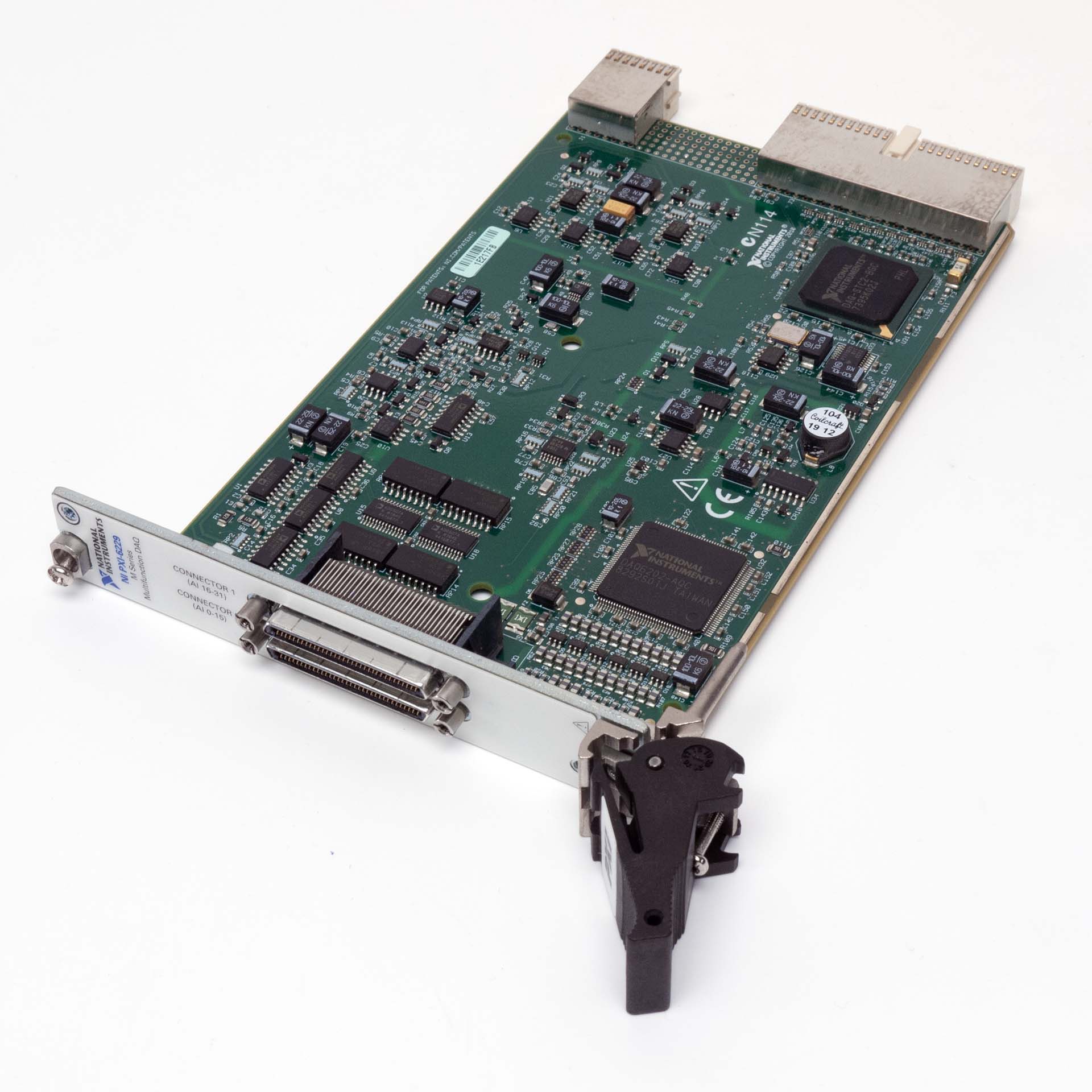

National Instruments PXI-6229 191332F-01L Versatile Multifunction DAQ ModulCore Features: Analog I/O, correlated digital I/O, and digital triggering. Timing & Counting: Equipped with two integrated 32-bit counter/timers.Expandability: Easily add sensor and high-voltage capabilities using SCC or SCXI signal conditioning modules. Software: Streamline your setup and measurements with the industry-standard NI-DAQmx driver and configuration utility. Ideal Applications: A low-cost, reliable choice for lab automation, R&D, design verification, and manufacturing testingData Acquisition: 16-Bit, 250 kS/s, 32 AI, 48 DIO 32 AI (16-Bit, 250 kS/s) 4 AO48 DIO

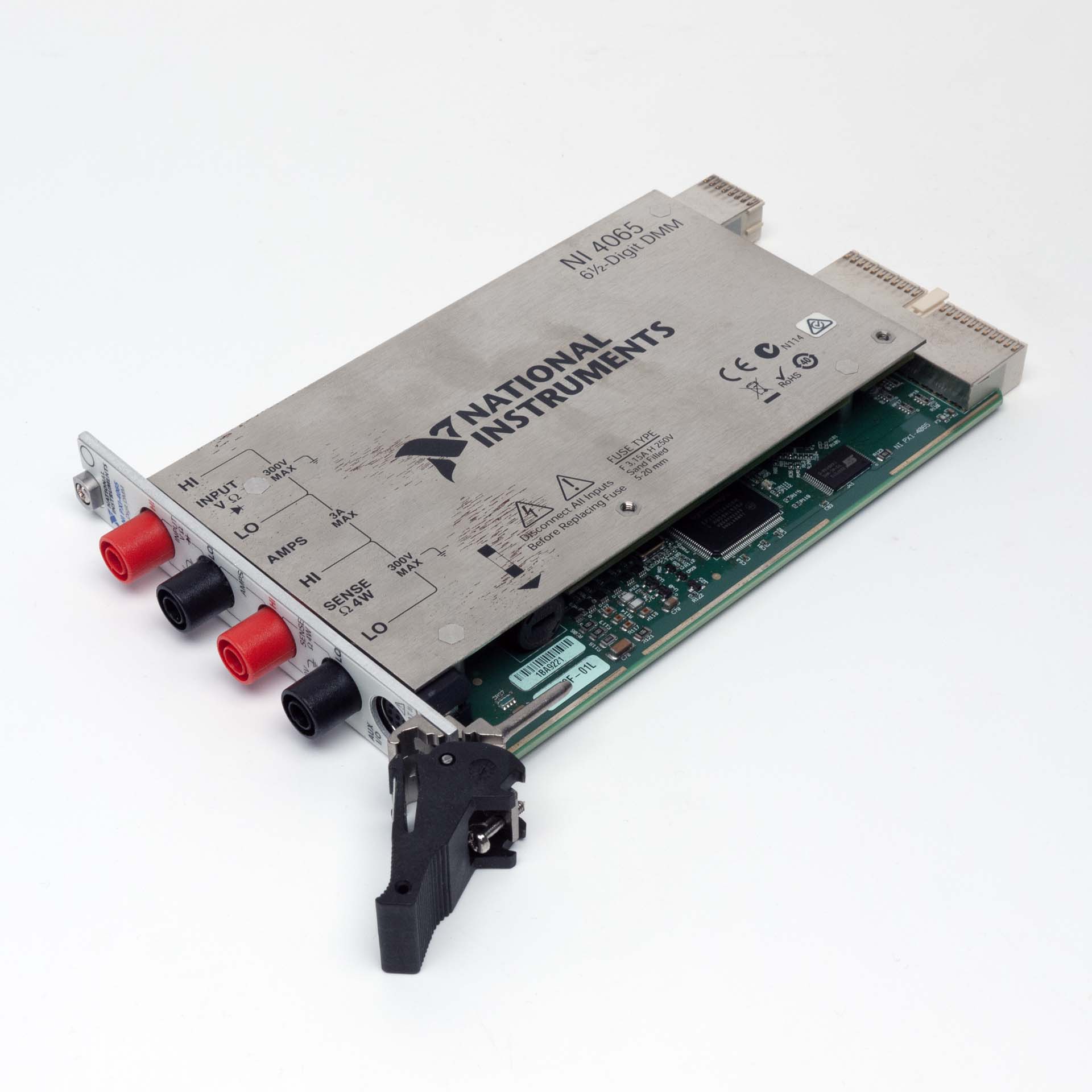

National Instruments PXI-4065 6 1/2-Digit DMM

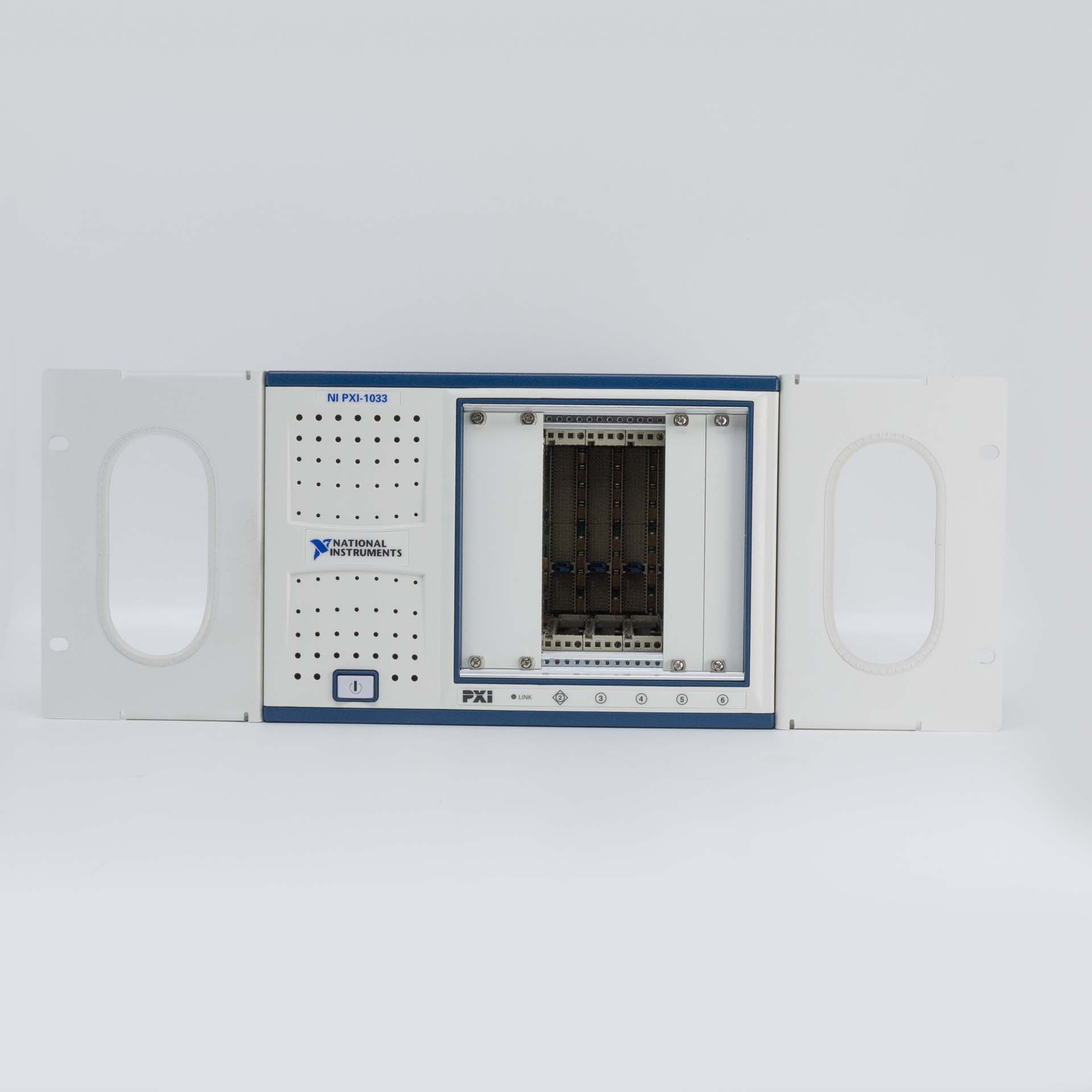

National Instruments PXI-1033 Rev 3.15-Slot, Integrated Remote Controller PXI Chassis

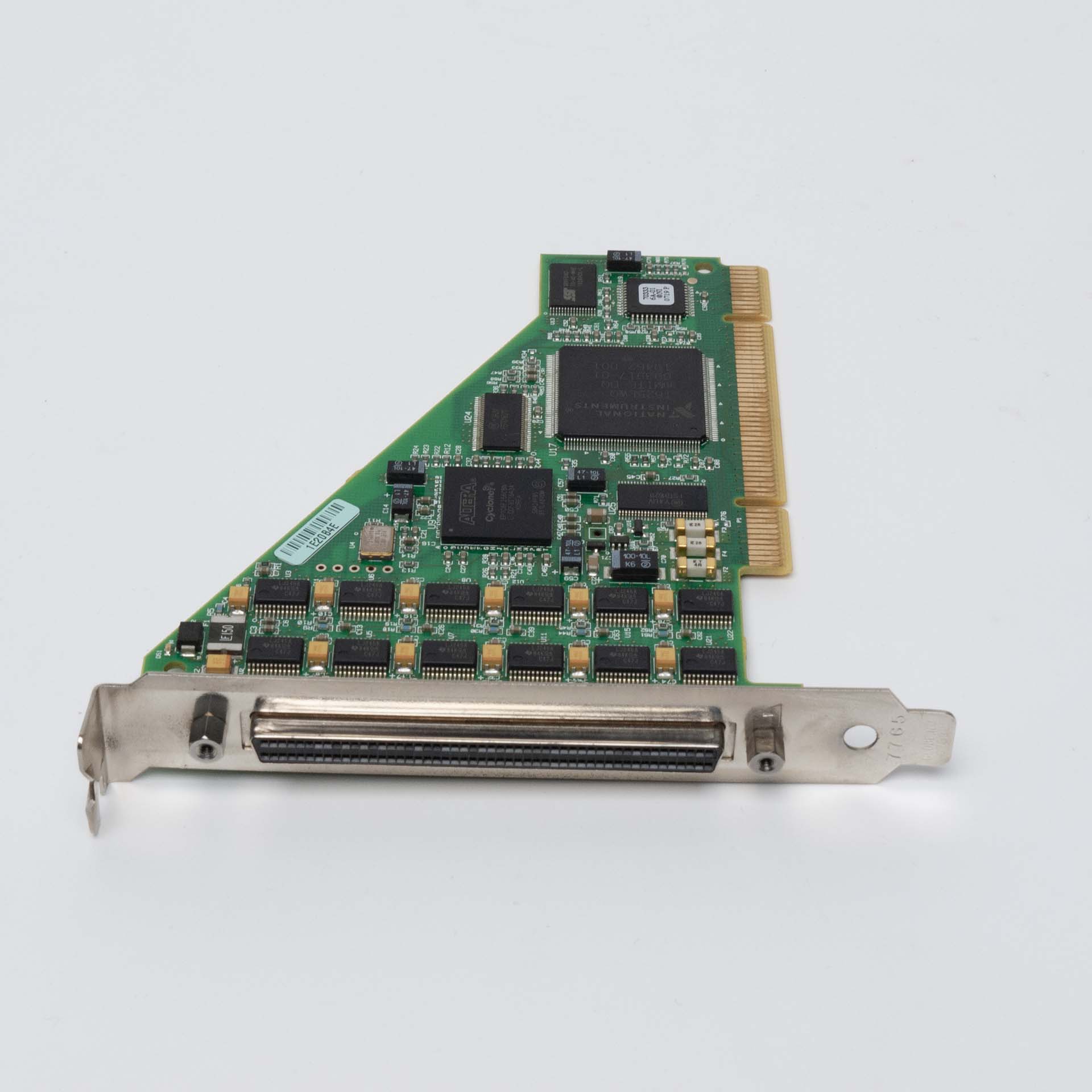

National Instruments PCI-6509 NI DAQ Card 96-Channel, 5 V, TTL/CMOS, 24 mA, PCI Digital I/O Device

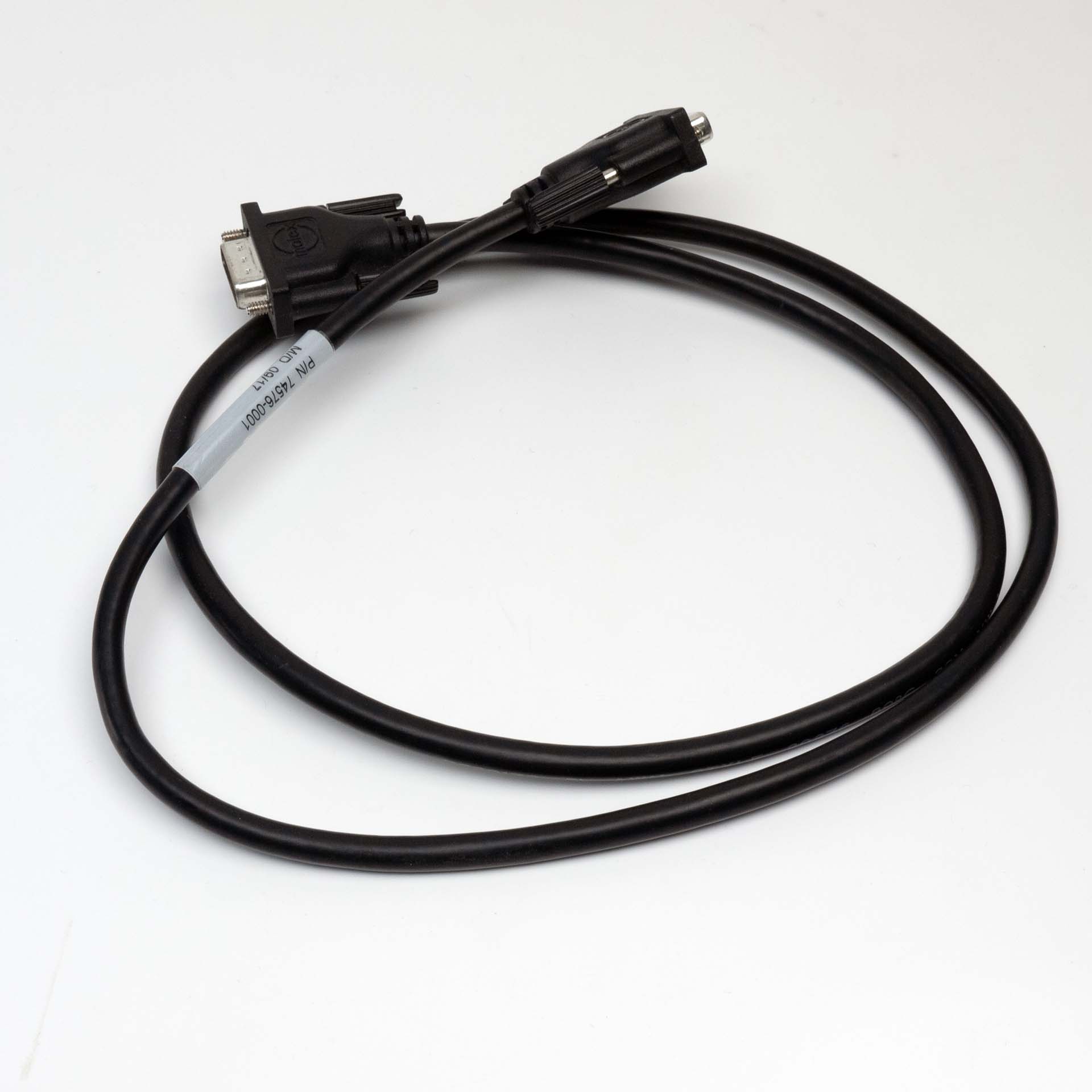

National Instruments 74576-0001MXI-Express Cable 1m

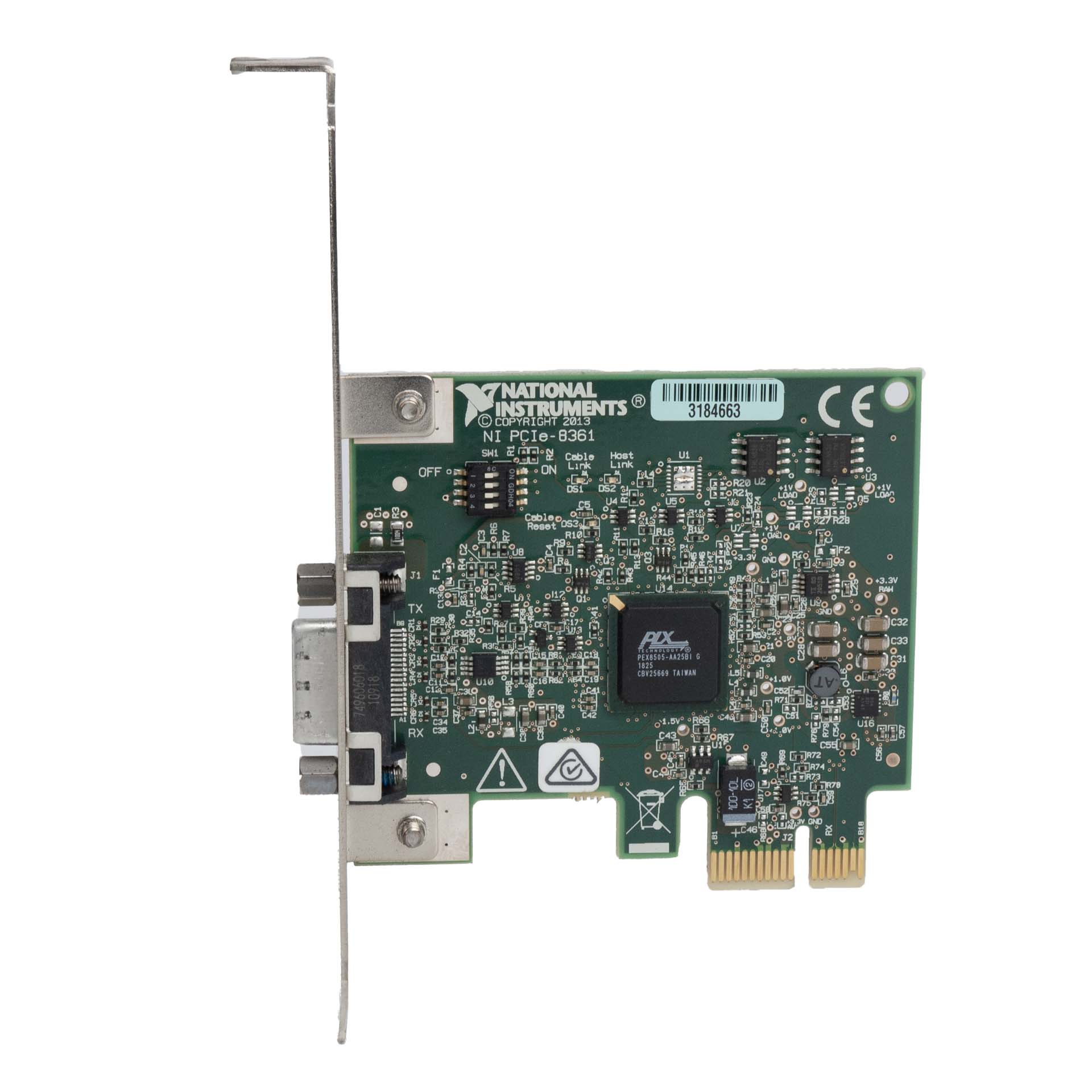

National Instruments NI PCIe-8361MXI-Express Remote Control Interface Card
