Beckhoff
Beckhoff KL3122 2-Channel Analog Input, Differential 4-20mA, 50 Ohm, 16Bit

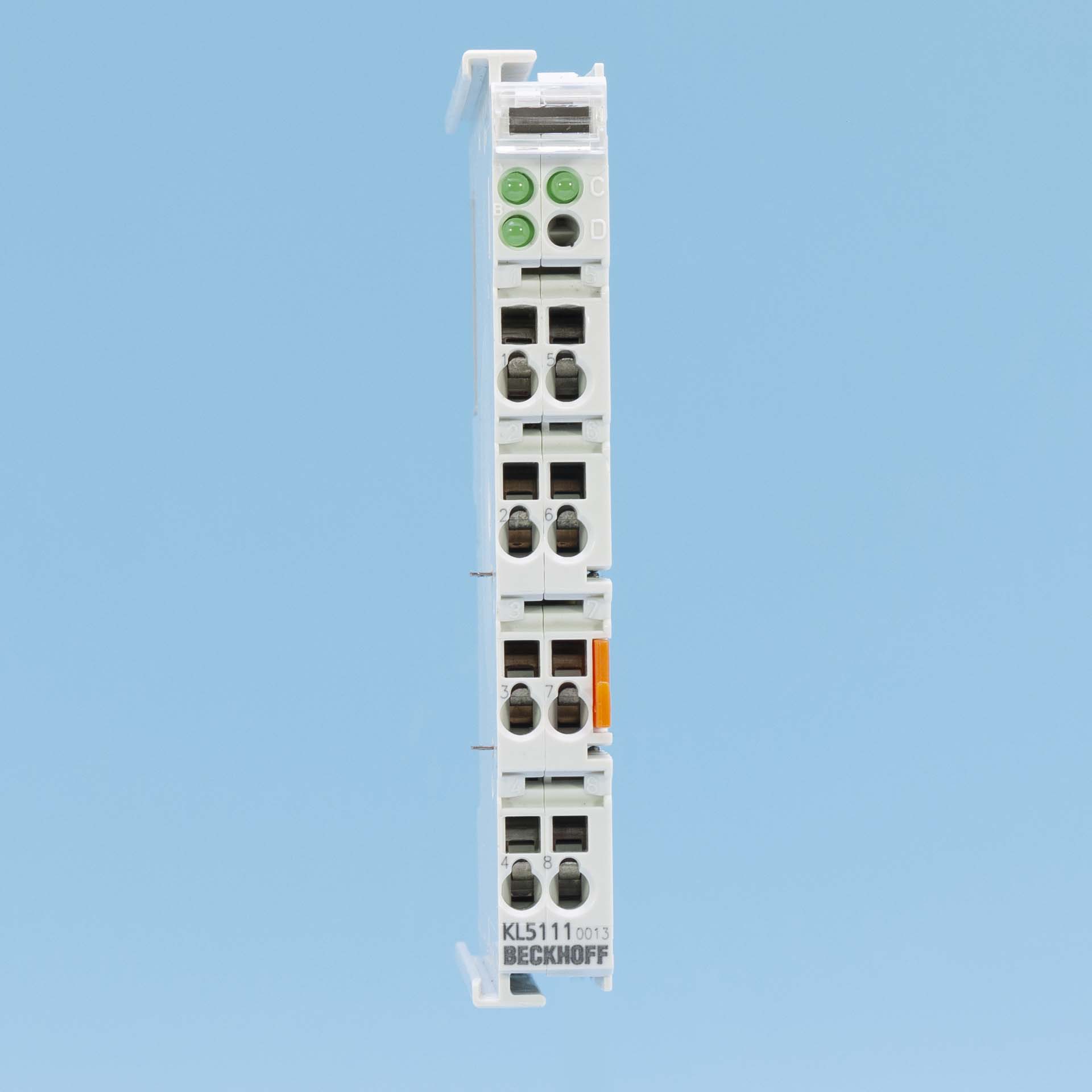

Beckhoff KL5111-0013 Incremental Encoder Interface 5V DC Supply max 1Mhz

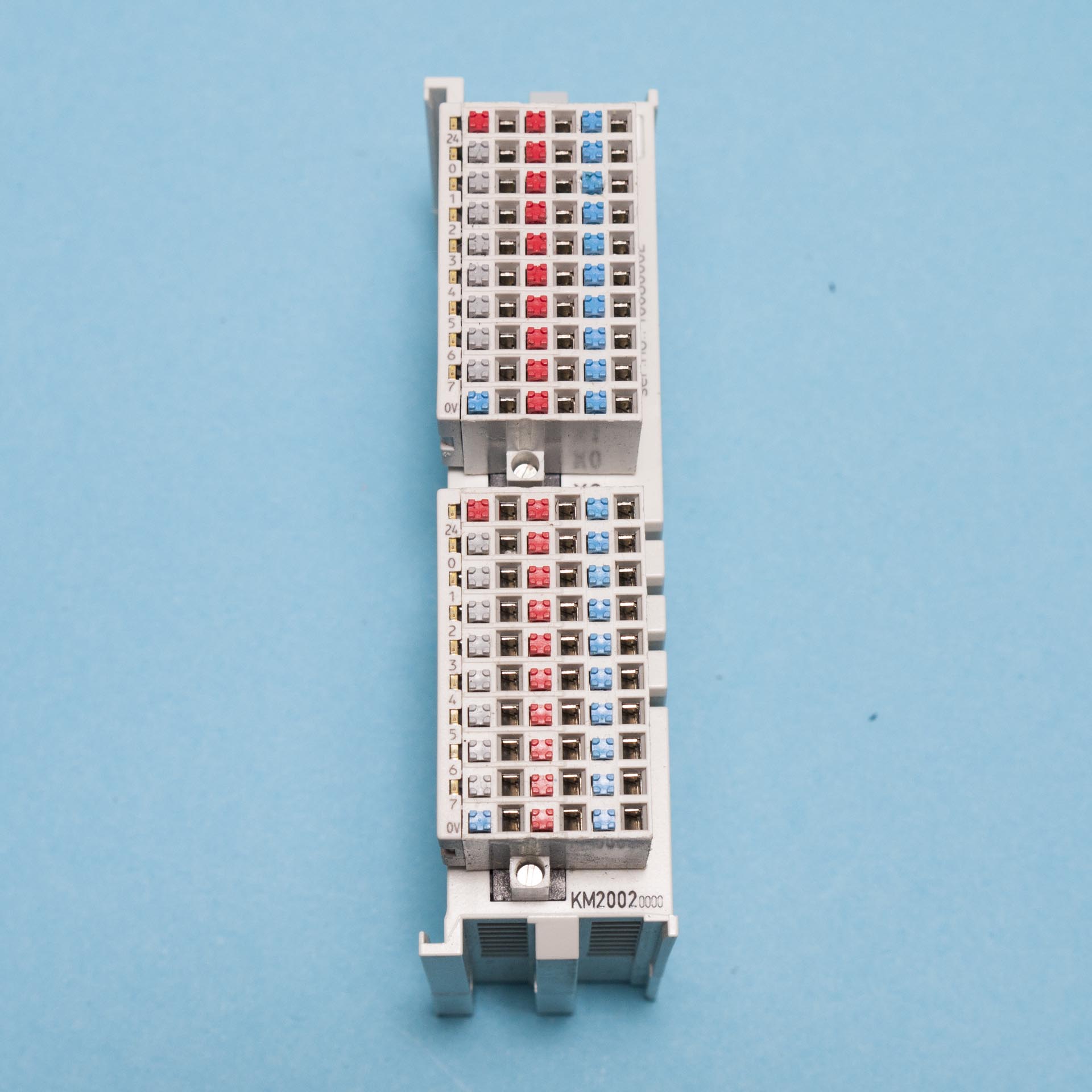

Beckhoff KM2002-0000 Bus Terminal module, 16-channel digital output, 24 V DC, 0.5 A

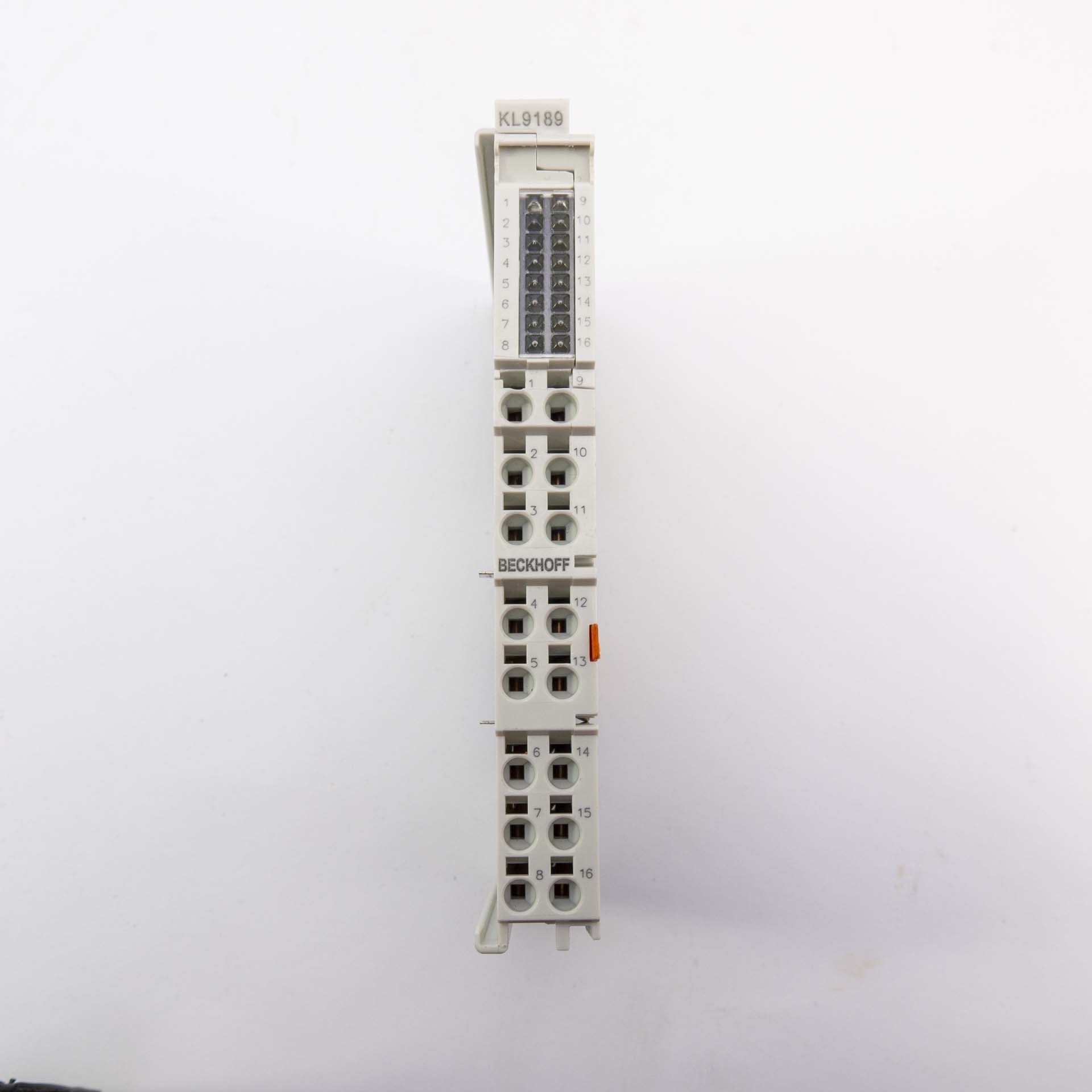

Beckhoff KL9189 Potential Distribution Terminal 16x 0V / max 60V, 10A

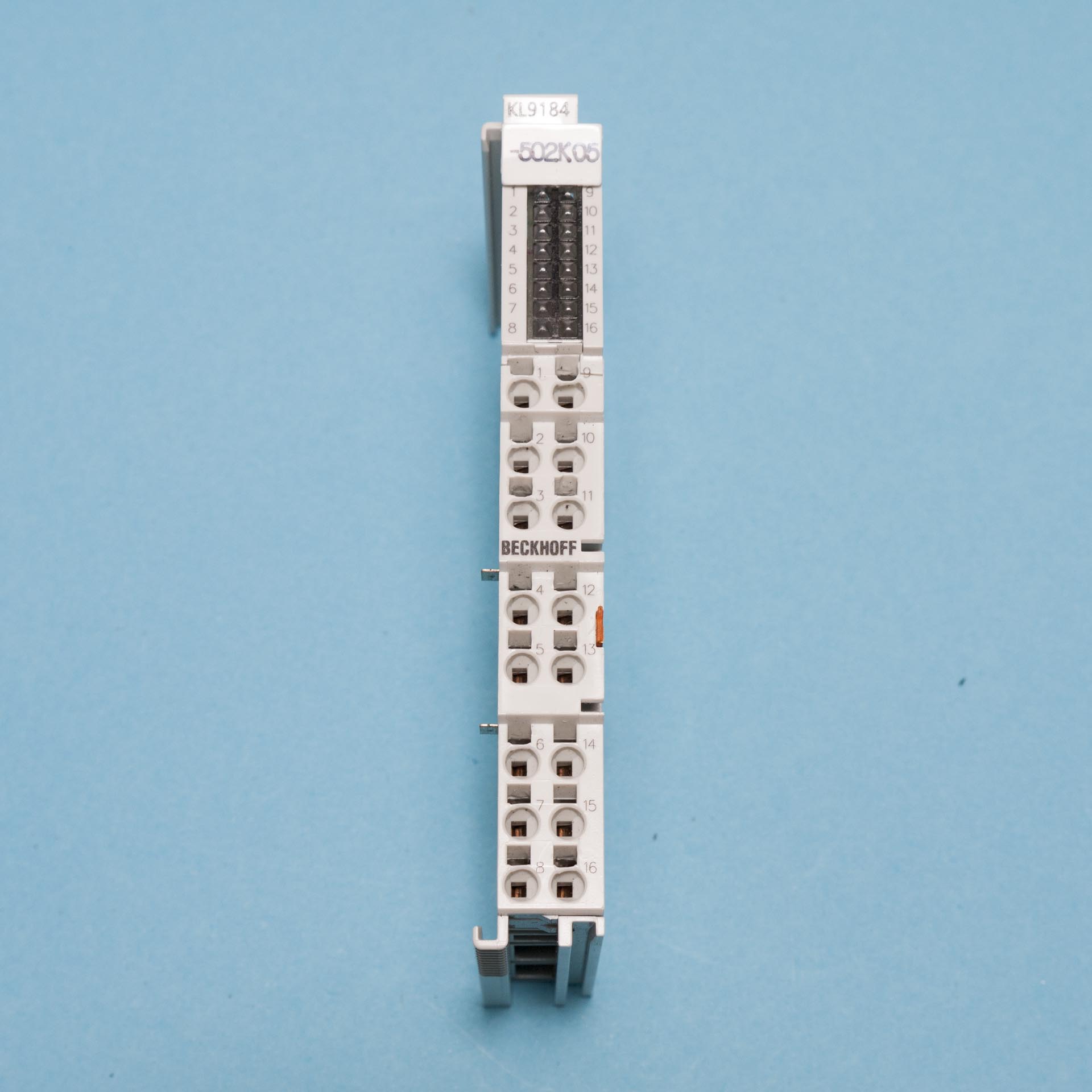

Beckhoff KL9184 Potential Distribution Terminal 8x 24V + 8x 0V max 60V, 10A
Beckhoff KL9110 Voltage Supply Terminal 24V DC max 10A with Diagnostics

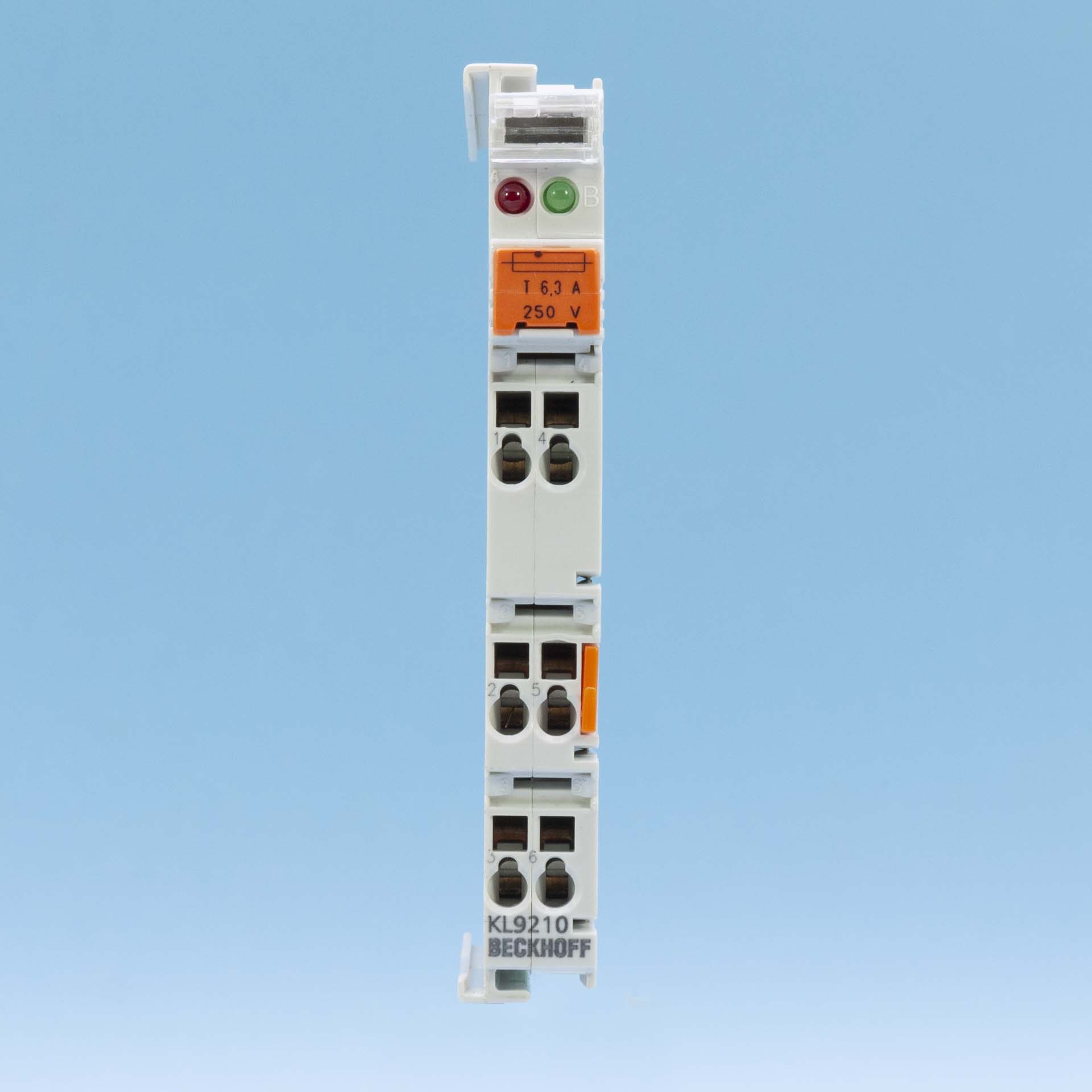

Beckhoff KL9210 Power Supply Terminal 24V DC max 6.3 A with Fuse and Diagnostics

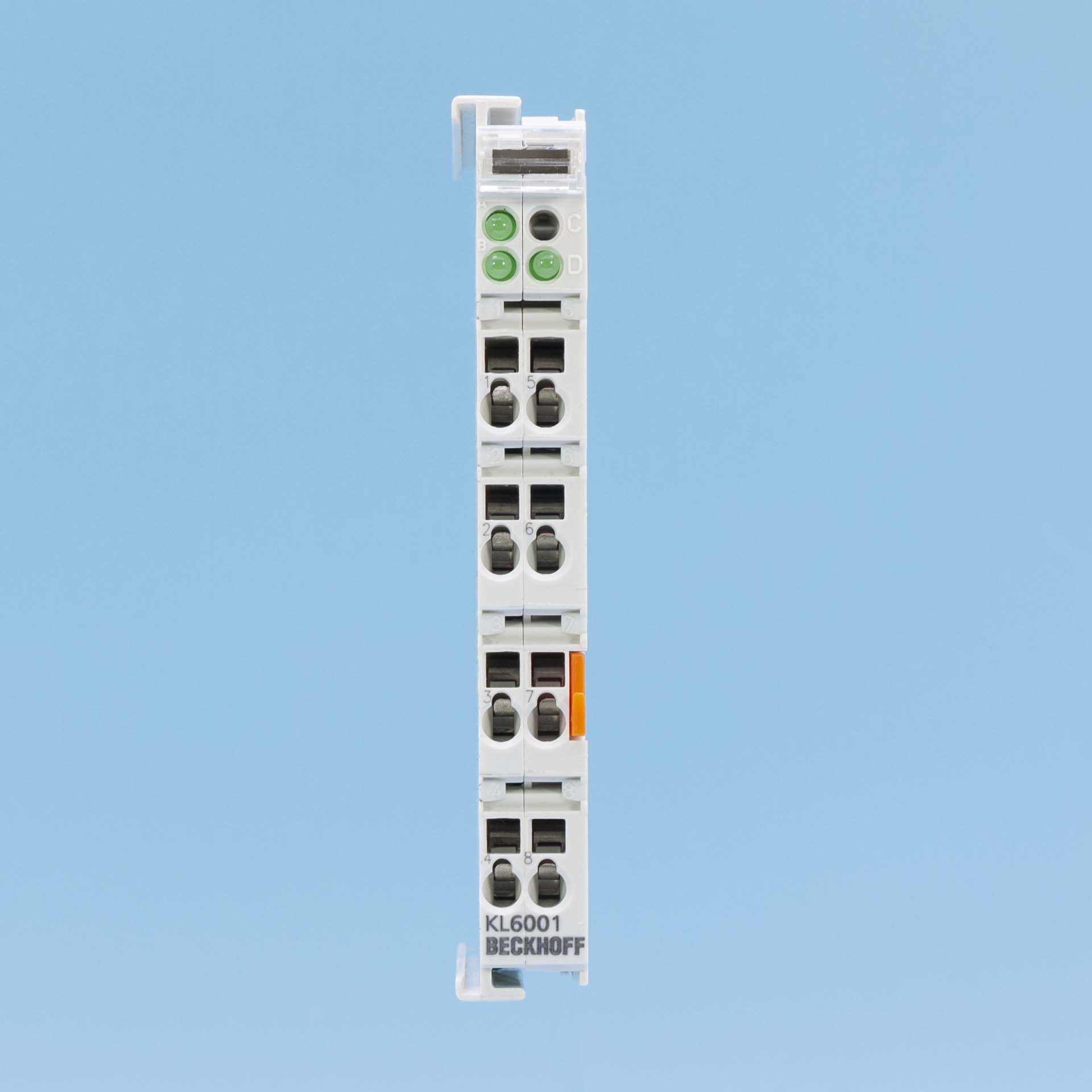

Beckhoff KL6001 RS232C Serial Interface max 19200 Baud
Beckhoff KL6031 RS232C Serial Interface max 115 kBaud
Beckhoff KL9100 Voltage Supply Terminal 24V DC max 10A

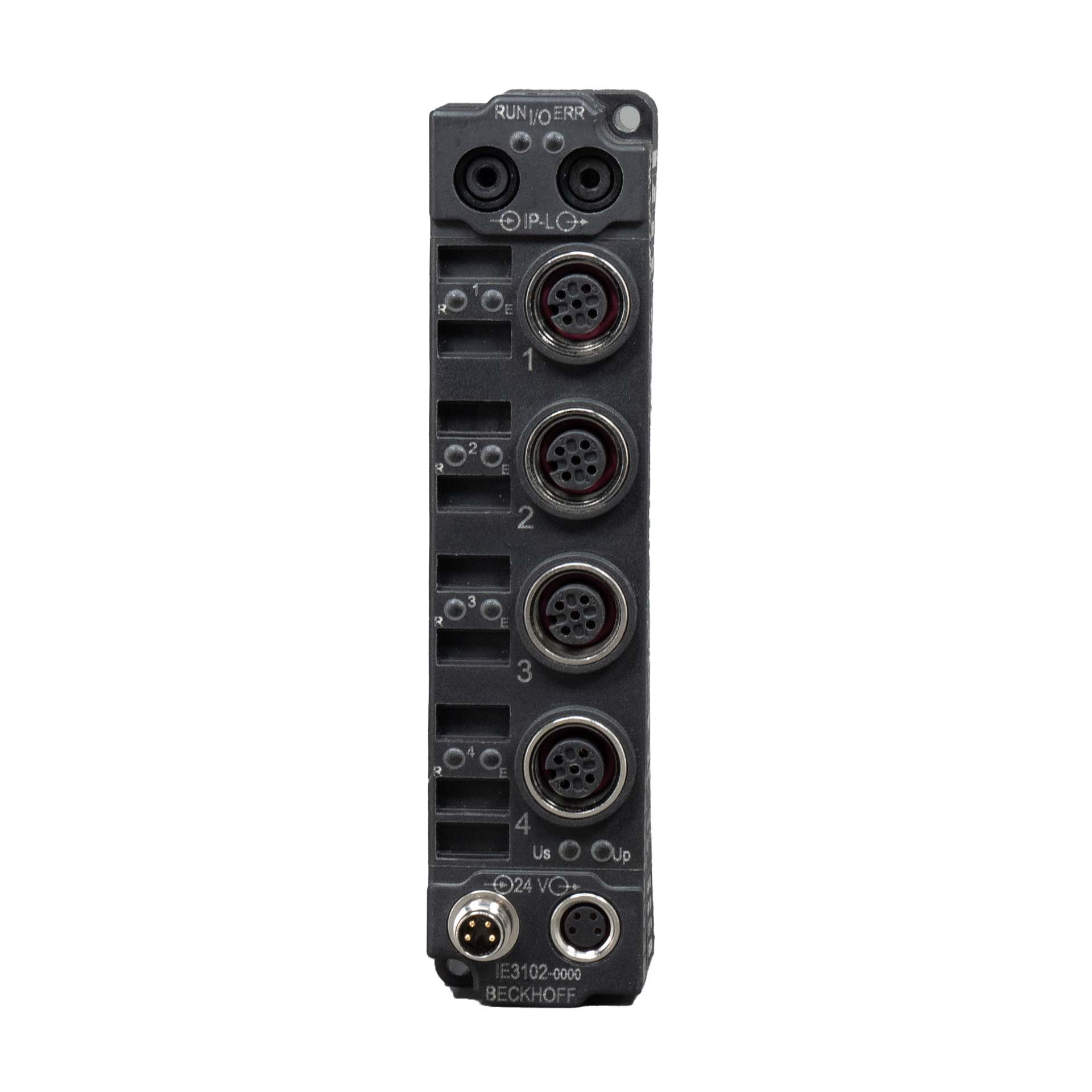

IE3102 | Extension Box, 4-channel analog input, voltage, ±10 V, 16 bit, differential, M12 The IE3102 analog input module handles signals in the range from -10 to +10 V. The voltage is digitized to a resolution of 16 bits and is transmitted, electrically isolated, to the higher-level automation device. The four input channels have differential inputs and possess a common, internal ground potential. The applied auxiliary voltage (which can be any value up to 30 V DC) is fed through to supply the sensor. It is thus possible, for instance, to supply a measuring potentiometer with 10 V DC from an external voltage source. The module is quite versatile, but default settings have been selected in such a way that in most cases it is not necessary to perform configuration. The input filter and associated conversion times can be set within a wide range; several data output formats may be chosen. If required, the inputs can be scaled differently. Automatic limit monitoring is also available. Parameterization may be carried out either via the fieldbus or using the KS2000 software tool.
Beckhoff EP2316-0008 | EtherCAT Box, 8-channel digital input + 8-channel digital output, 24 V DC, 10 µs, 0.5 A, D-sub The EP2316-0008 EtherCAT Box combines eight digital inputs (upper socket connector) and eight digital outputs (lower socket connector) in a single device. The inputs have a filter of 10 µs. The outputs process load currents up to 0.5 A and are short-circuit-proof and protected against reverse polarity. The signal status is displayed via the optional plug connector. The signal connection is made via spring-cage connectors, optionally available in 1- and 3-pole versions. The module is delivered without connectors. The supply of the connected sensors is done by an internal, short-circuit proof driver module with a total of 0.5 A for all sensors. The outputs are supplied via flush mounted. All outputs are short-circuit-proof and protected against reverse polarity. The 16-channel design offers a very high channel density in a very small space. Technical dataEP2316-0008ProtocolEtherCATBus interface2 x M8 socket, shielded, screw typeSpecificationEN 61131-2, type 1/3Number of channels8 inputs + 8 outputsInput/output connectionsD-sub socket, 25-pin, UNC4-40Input filter10 µs“0” signal voltage-3…+5 V“1” signal voltage11…30 V, 6 mA input current (EN 61131-2, type 3)Sensor supplyfrom control voltage, max. 0.5 A, short-circuit proof in totalLoad typeohmic, inductive, lamp loadRated load voltage24 V DC (-15 %/+20 %)Max. output current0.5 A per channel, individually short-circuit proofShort-circuit currenttyp. 1.5 AAuxiliary power currenttyp. 20 mA + loadCurrent consumption from US120 mAPower supply connectionfeed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pinElectrical isolation500 VSpecial featuresideal for high number of channelsWeightapprox. 165 gOperating/storage temperature-25…+60 °C/-40…+85 °CVibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4Approvals/markingsCE, ULProtect. rating/installation pos.IP65/66/67 (conforms to EN 60529)/variable
