Beckhoff AG2250-+PLE60-M02-20-081-AM812X Planetary Gearbox
€45.00
Available, delivery time: 2-5 days
Condition: Used
Stock: 1
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "Beckhoff AG2250-+PLE60-M02-20-081-AM812X Planetary Gearbox"

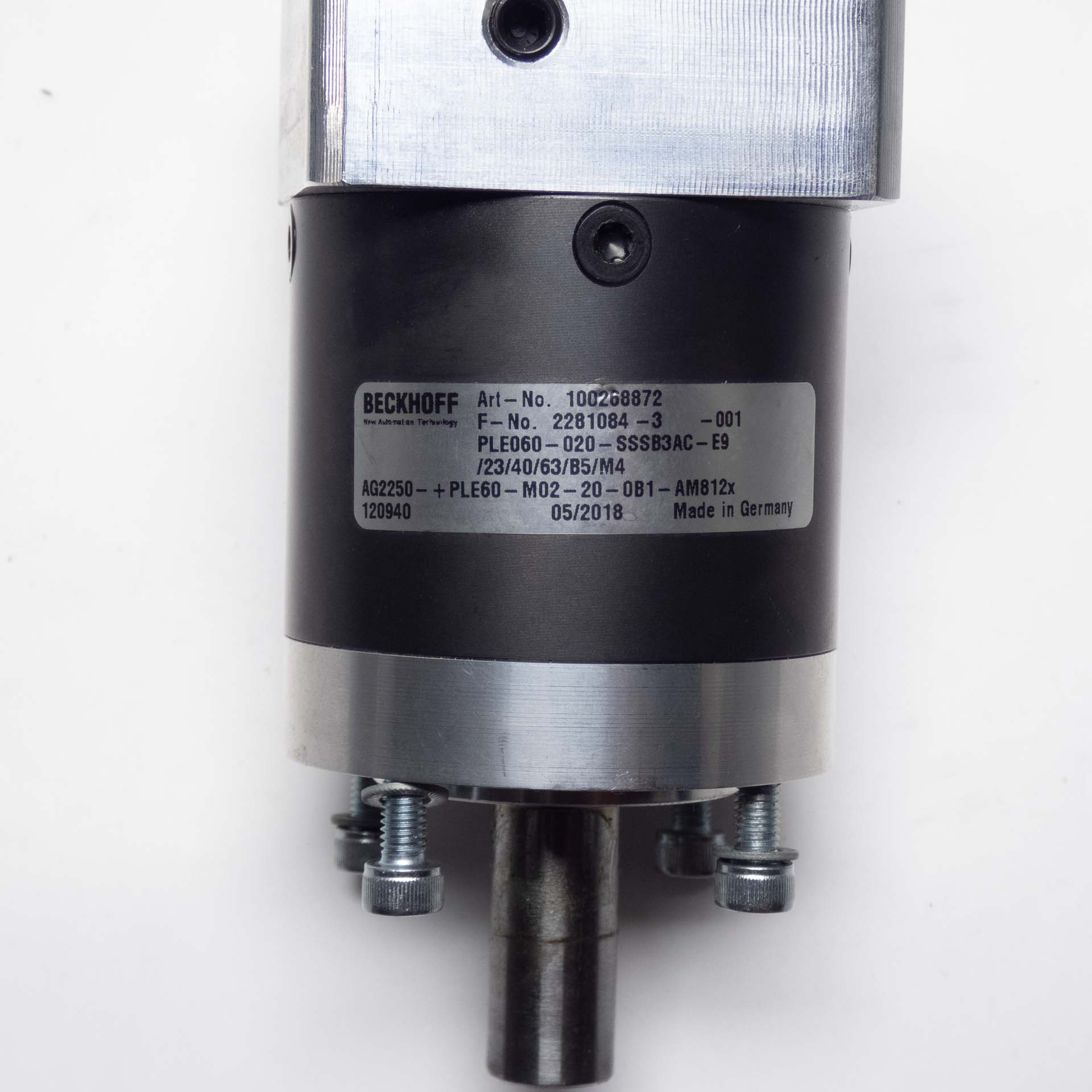

Beckhoff AG2250-+PLE60-M02-20-081-AM812X Planetary Gearbox (Used)
This is a used, 2-stage economy planetary gear unit from the Beckhoff AG2250 series (built on the Neugart PLE60 chassis). It is intended as a direct replacement part for compact drive automation systems specifically utilizing Beckhoff AM812x series servo motors.
Critical Replacement Specs:
- Gear Ratio: 20:1 (i=20)

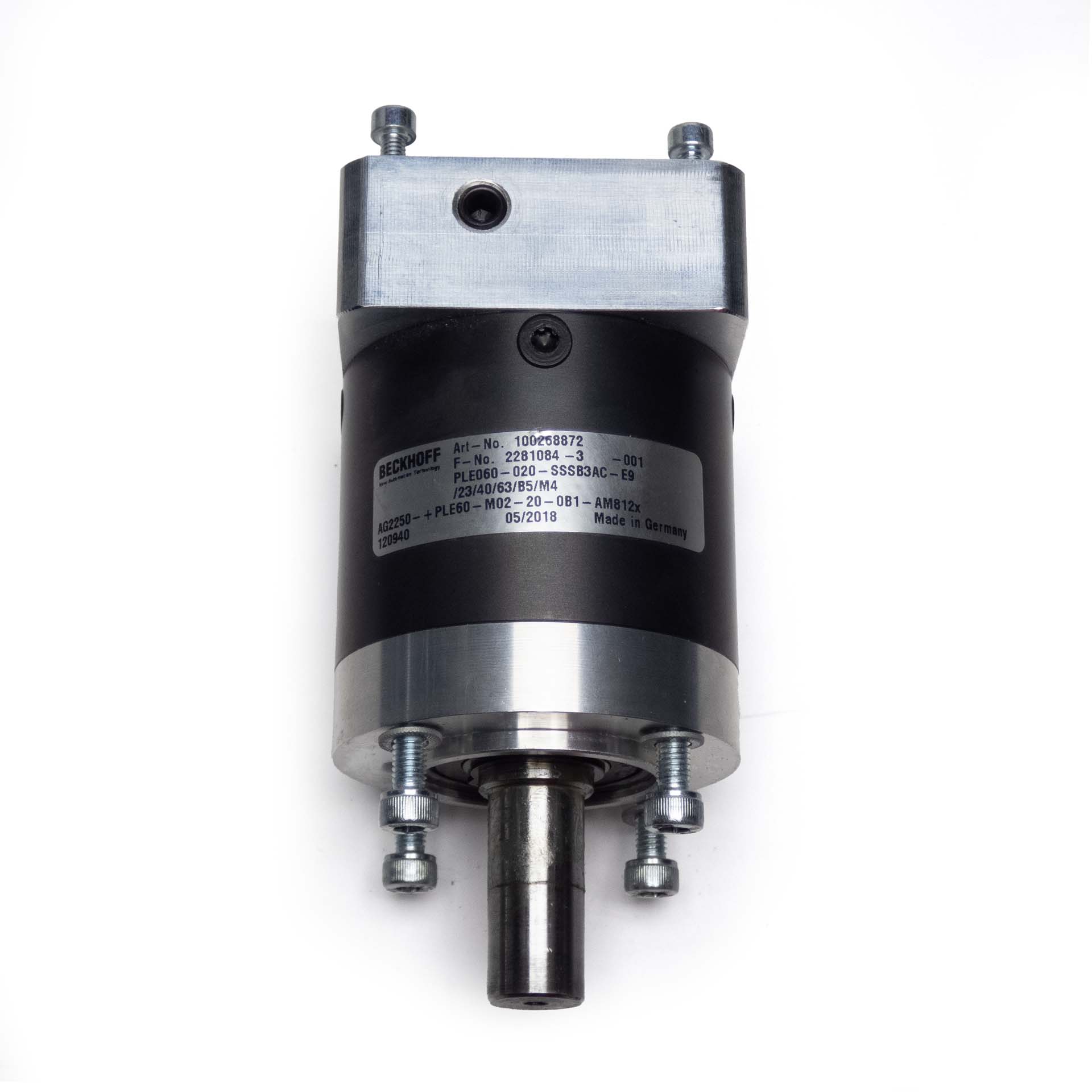

- Output Shaft Size: 14 mm diameter (Smooth shaft design; no groove/feather key)

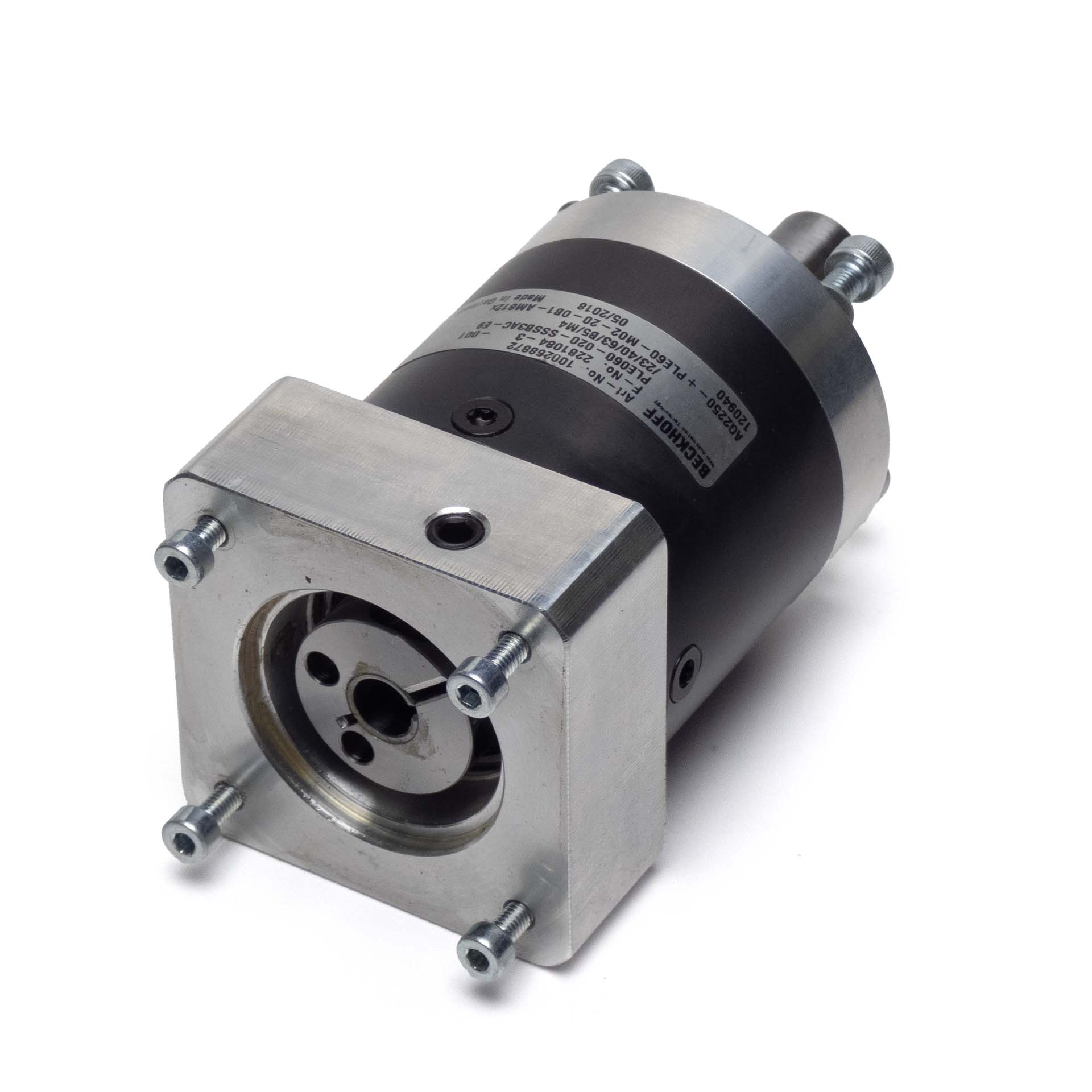

- Input Bore / Motor Shaft Size: 9 mm diameter (Pre-configured clamping hub for AM812x series / F2 flange motors)
Additional Technical Details:
- Series & Size: AG2250 / PLE60 (Straight design)
- Gear Stages: 2-Stage (M02)
- Nominal Output Torque: 44 Nm
- Max Acceleration Torque: 70 Nm
- Max Torsional Backlash: ≤ 12 arcmin (Standard backlash)
- Motor Compatibility: Beckhoff AM802x, AM812x, AMI812x (F2 Flange Code)
- Protection Rating: IP54
- Condition: Used, pulled from a working system. Please verify your exact part number and shaft configurations before installation.
Properties:
| Condition: | Used |
|---|
