Fujitsu D3236-S13 GS2
€347.00
Available, delivery time: 2-5 days
Condition: Used
Stock: 1
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "Fujitsu D3236-S13 GS2"
Fujitsu D3236-S13 GS2 Motherboard Combo with Intel Core i5-4460 & 4GB RAM

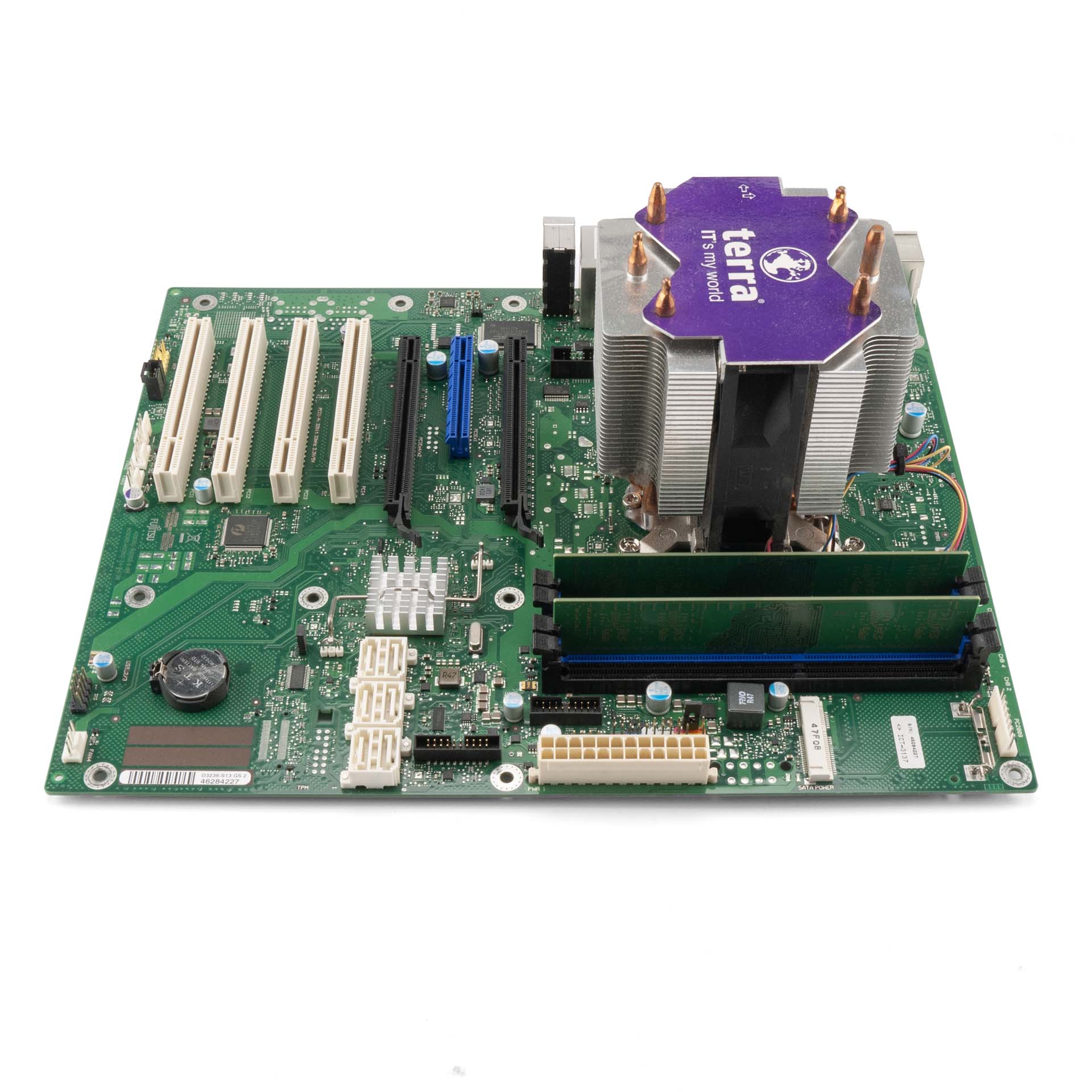

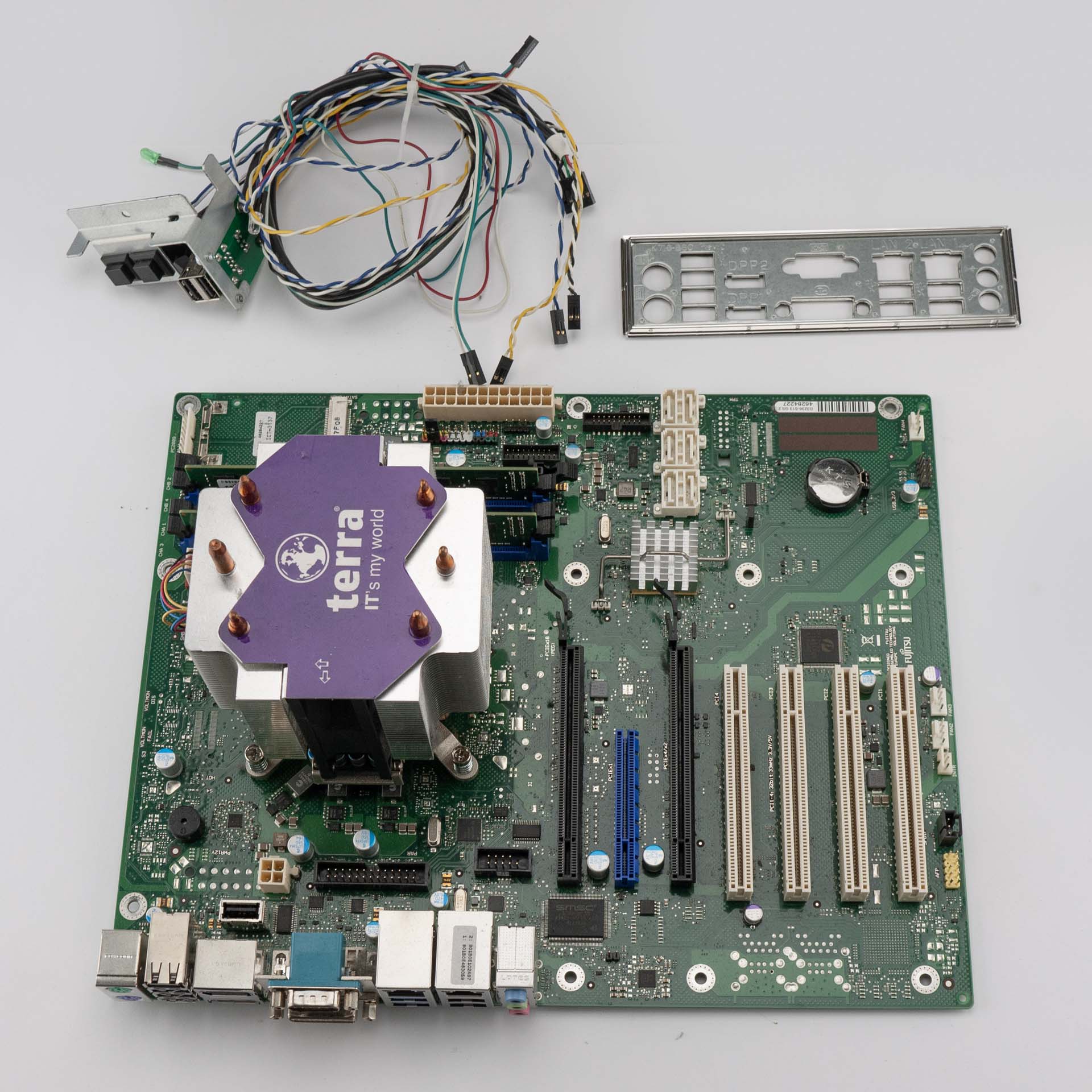

Up for sale is a reliable, high-quality industrial/business-class motherboard bundle pulled from a working TERRA PC desktop system. This bundle includes the motherboard, processor, and memory, making it an excellent foundation for a budget workstation, replacement, or a robust home server/firewall setup.
⚠️ Important Search/Model Note: Fujitsu motherboards use several overlapping codes for the same PCB design. To help you find the exact drivers and documentation, this board is most commonly searched for under the following identifiers:

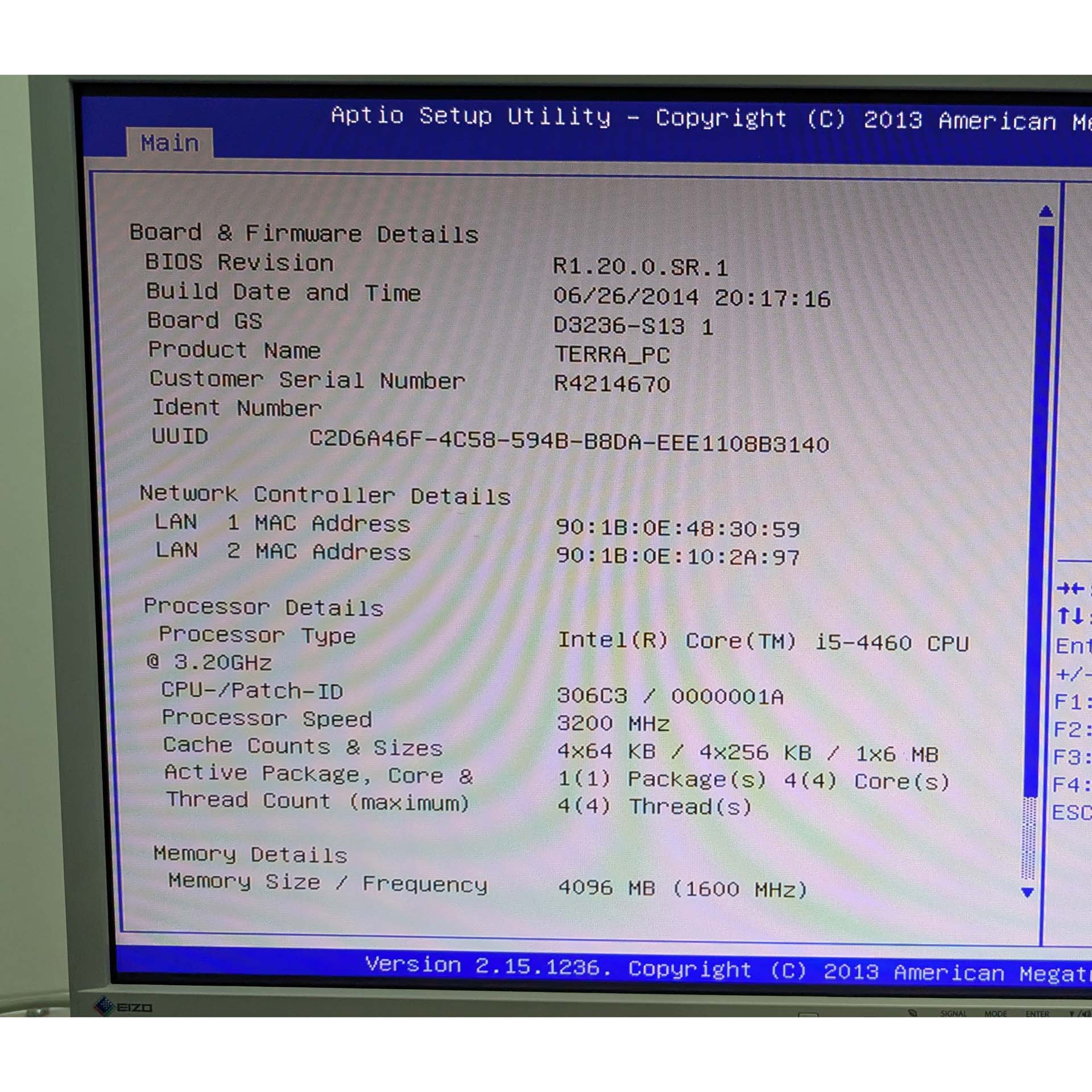

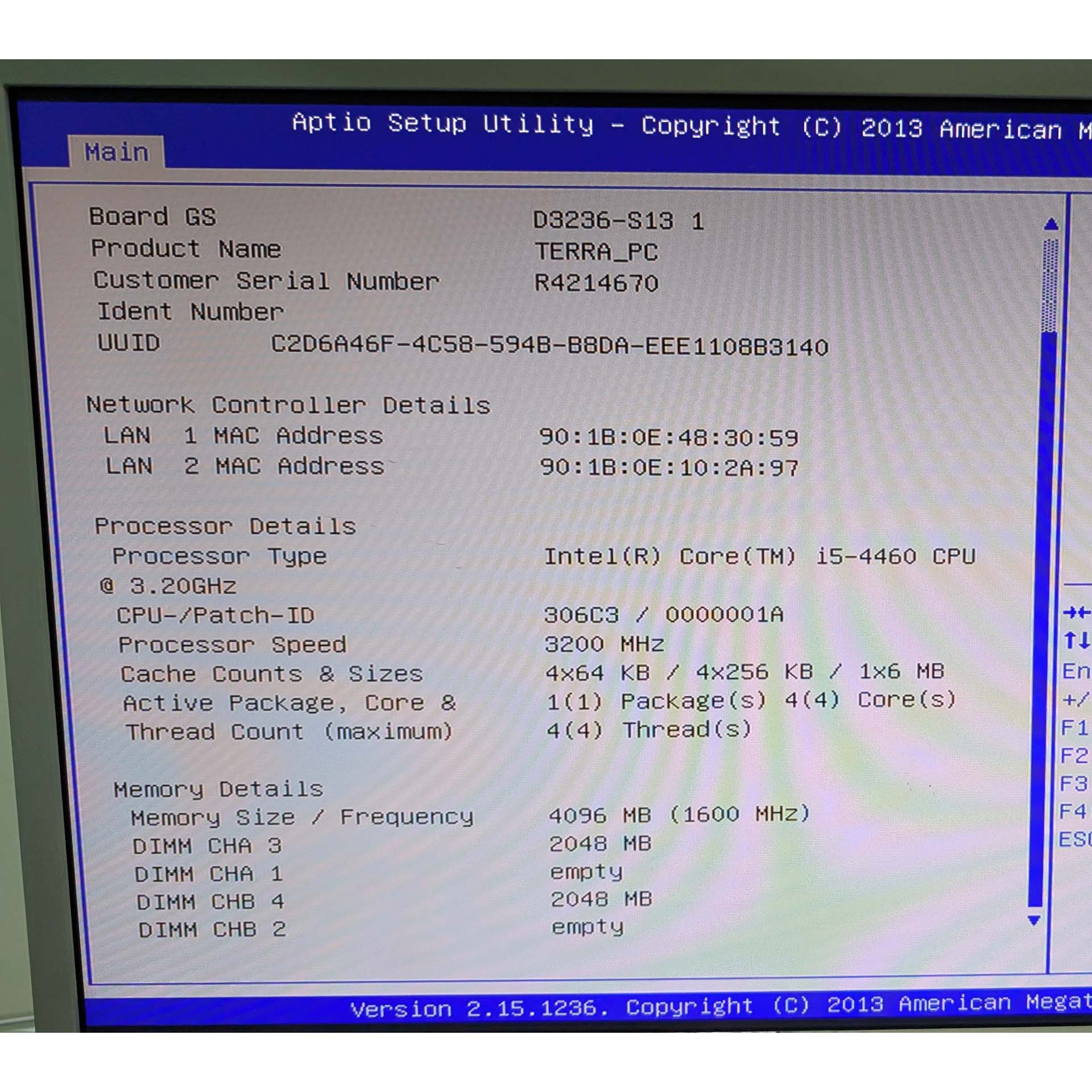

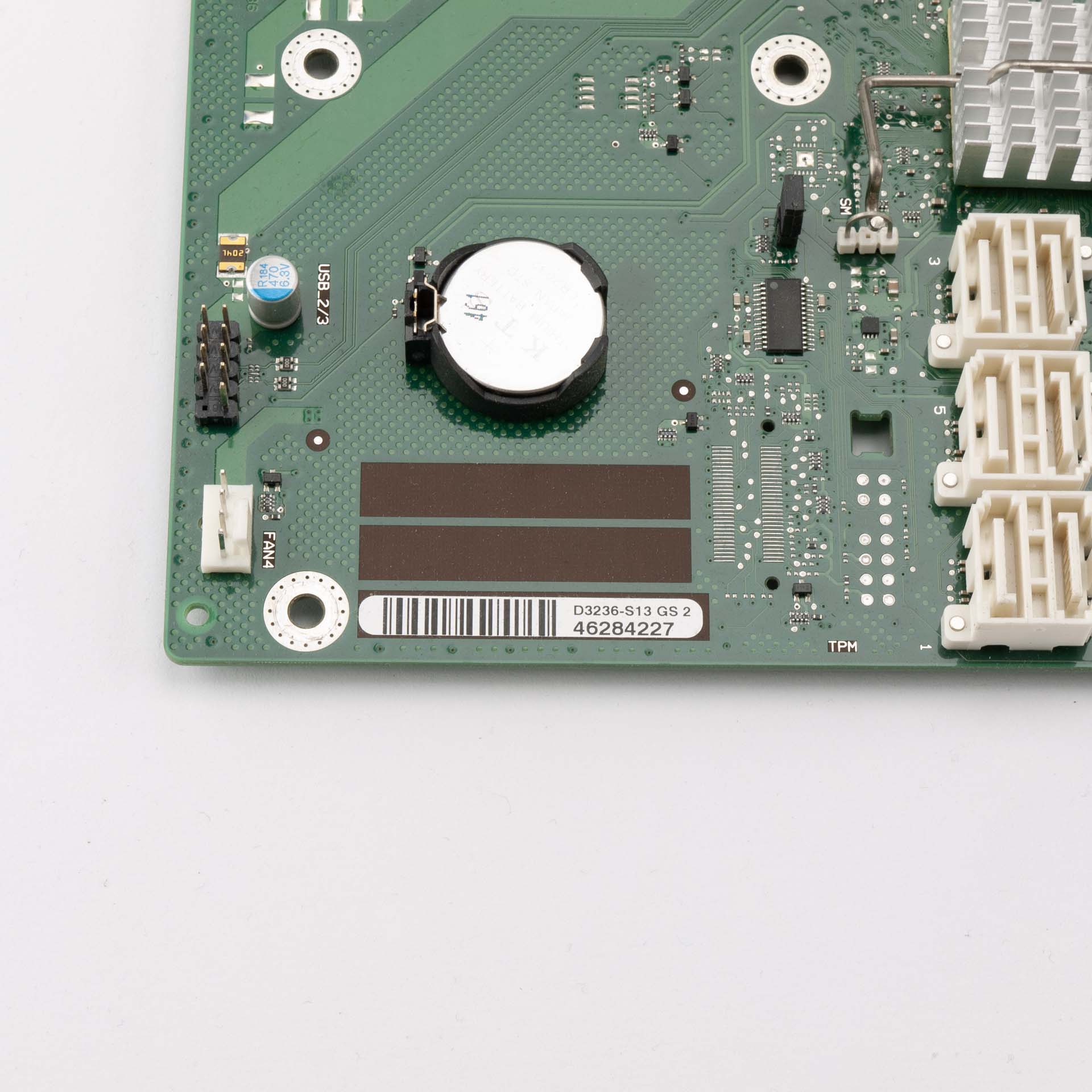

- Fujitsu D3236-S13 (Printed as Board GS on the BIOS screen)

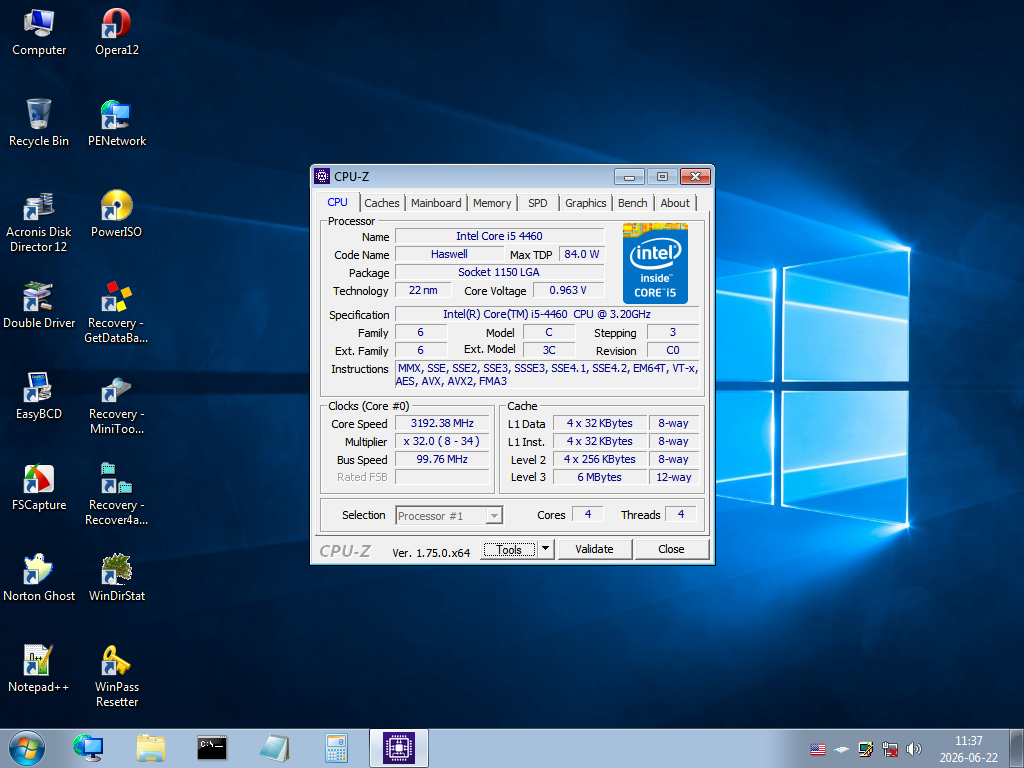

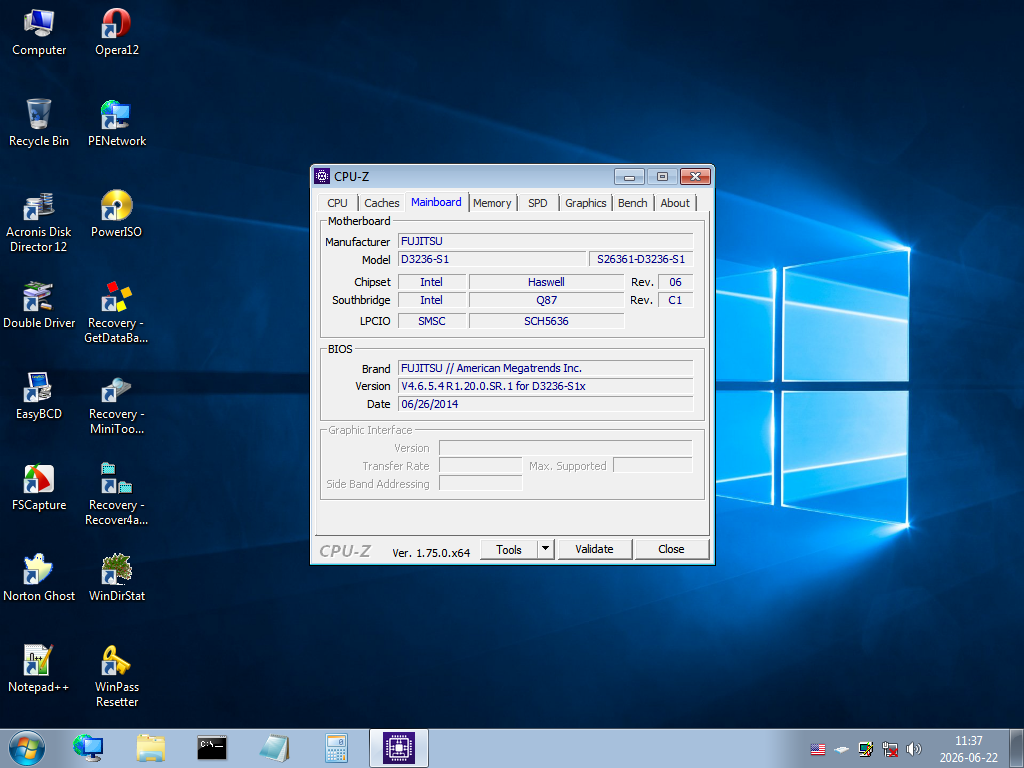

- Fujitsu D3236-S1 (Reported by CPU-Z / Mainboard model)
- S26361-D3236-S1 (Fujitsu Part/Revision number)
Bundle Components & Specifications
| Component | Specification Details |
| Motherboard |
Fujitsu D3236-S1 / S13 (Intel Q87 Express Chipset) Premium ATX form factor featuring a massive array of legacy and modern connectivity options. |
| Processor (CPU) |
Intel Core i5-4460 * Clock Speed: 3.20 GHz (Turbo up to 3.40 GHz) * Cores/Threads: 4 Cores / 4 Threads * Cache: 6 MB L3 Cache * TDP: 84W |
| Memory (RAM) |
4 GB DDR3 Dual-Channel (Running at 1600 MHz) * Configuration: 2x 2GB modules * Manufacturer: Micron Technology * Expandability: 4 DIMM slots total, supports up to 32GB maximum. |
| Graphics | Integrated Intel HD Graphics 4600 (via the i5 processor). |
Key Features & Connectivity
- Dual Intel Gigabit LAN Ports: Exceptional networking performance featuring an Intel I217LM and an Intel I210AT controller—perfect for custom router/firewall builds (like pfSense/OPNsense) or network teaming.
- Triple Display Outputs: Outfitted with 2x DisplayPort 1.2 outputs and 1x DVI-I port, allowing multi-monitor setups without a dedicated graphics card.

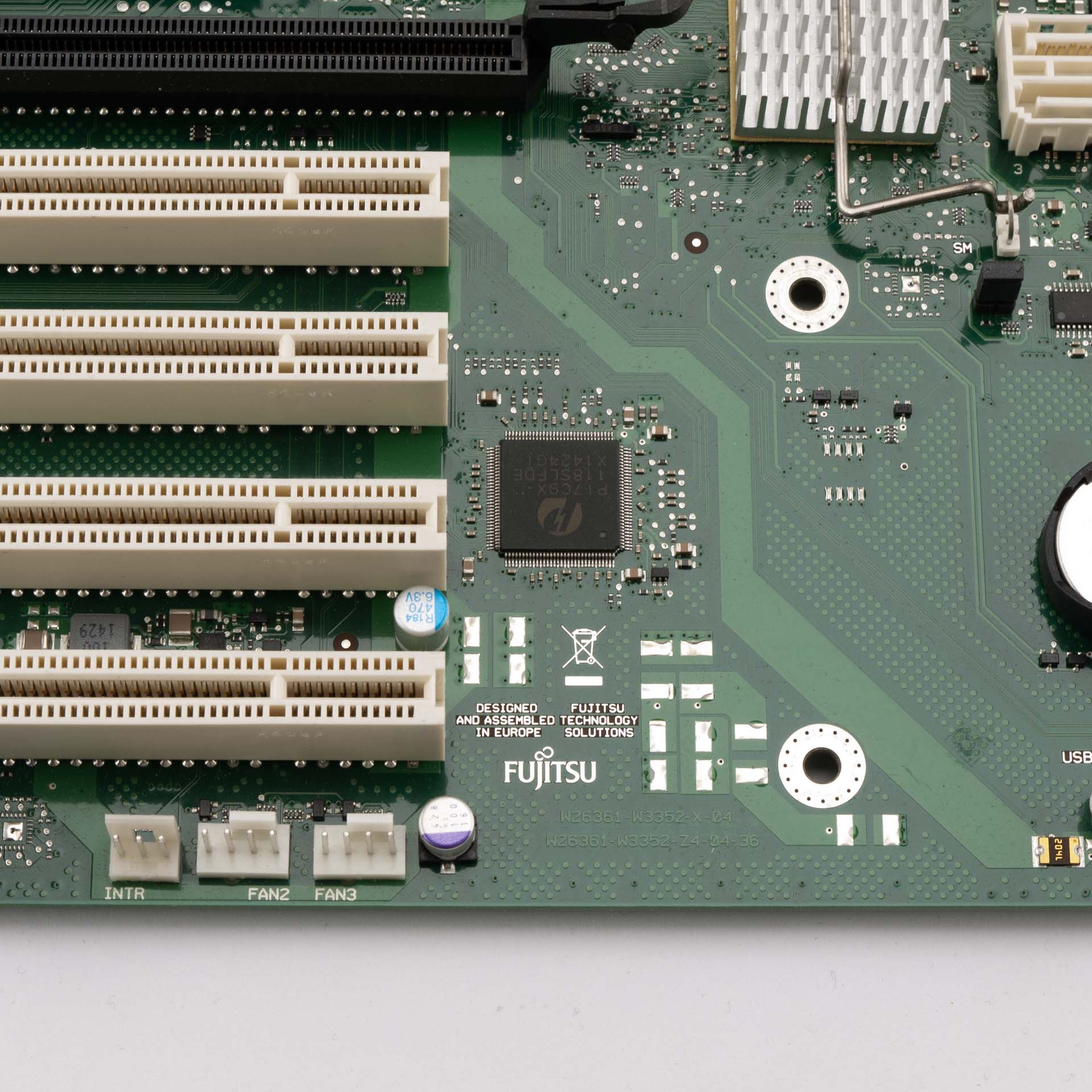

- Abundant Expansion Slots: Includes 1x PCIe x16 slot, 1x PCIe x4 slot (housed in an x16 physical connector), 1x PCIe x1 slot, and 4x Legacy PCI slots for specialty/industrial expansion cards.
- Legacy Support: Features 2x Rear Serial (COM) ports (DB-9 male), 1x Parallel (LPT) port, and classic PS/2 keyboard/mouse connectors.
- Storage Connectors: 5x onboard SATA ports for multiple SSDs/HDDs or optical drives.
Technical Condition

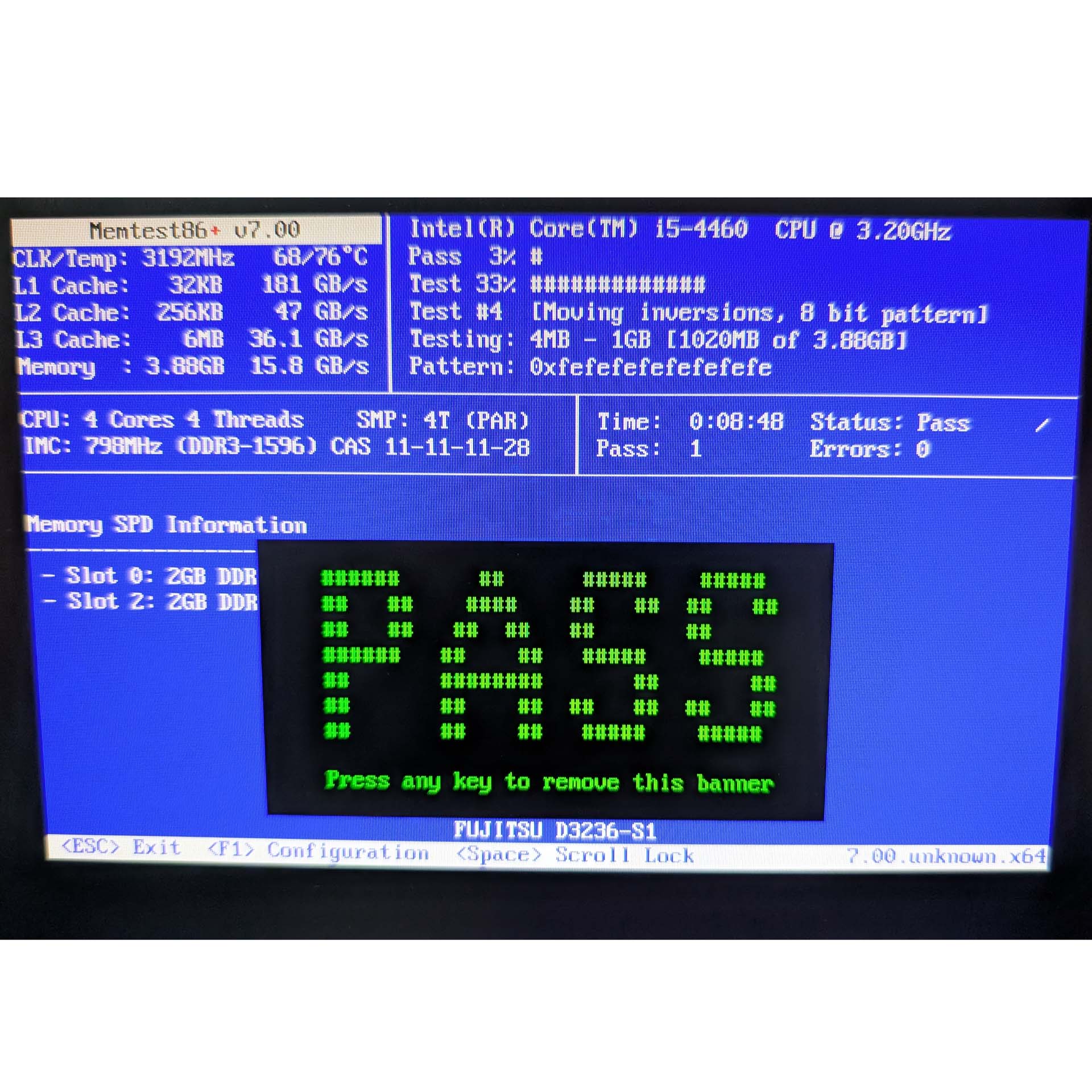

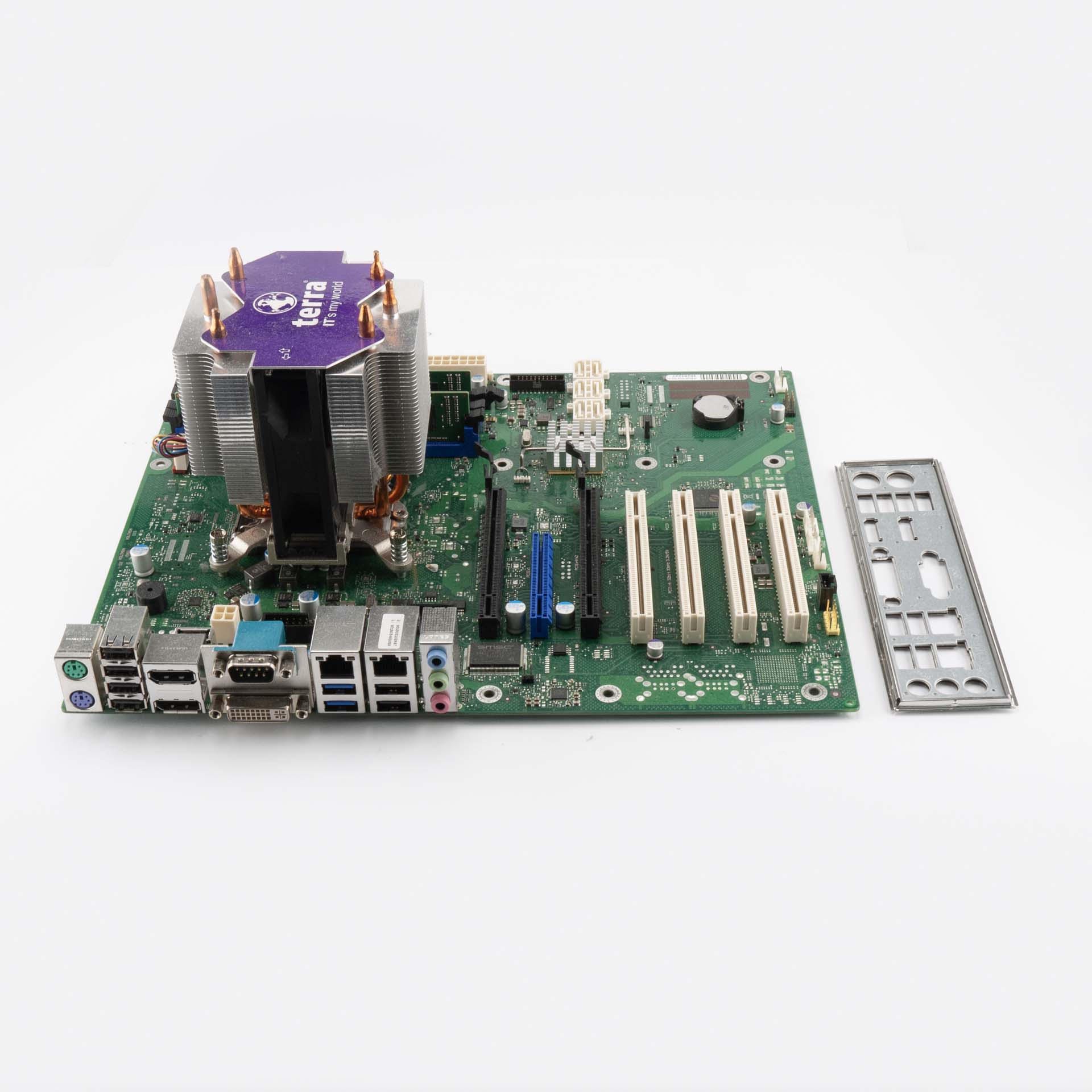

This bundle is fully tested and verified working. The components have been kept clean in a well-ventilated business system. The BIOS is running version V4.6.5.4 R1.20.0.SR.1. Please note that it requires a standard power supply setup and an ATX-compatible chassis. With integrated IO shield and heatsink is included.
Properties:
| Condition: | Used |
|---|
