GE Fanuc IC698CPE010-HQ
€975.00
Available, delivery time: 2-5 days
Condition: Used
Stock: 1
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "GE Fanuc IC698CPE010-HQ"

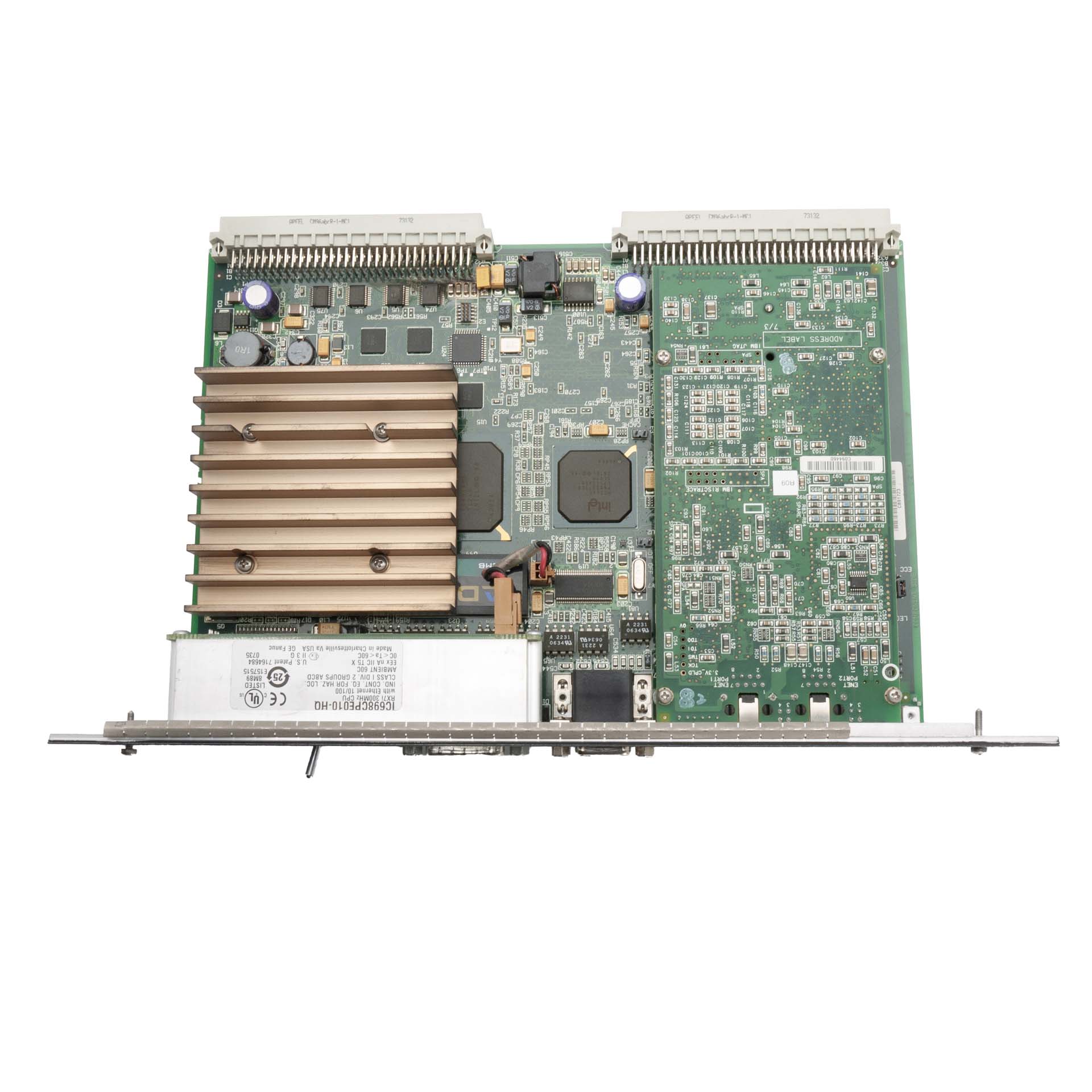

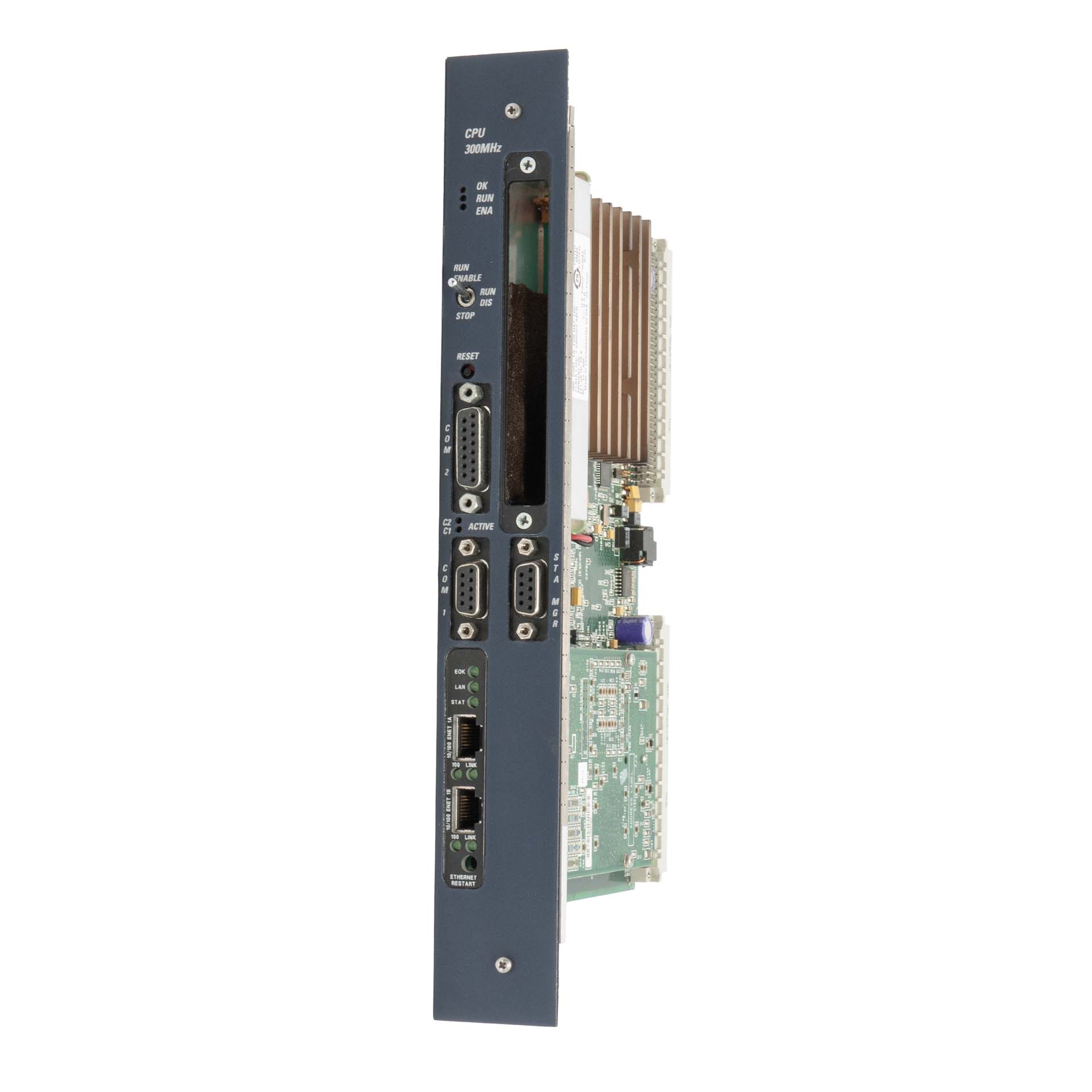

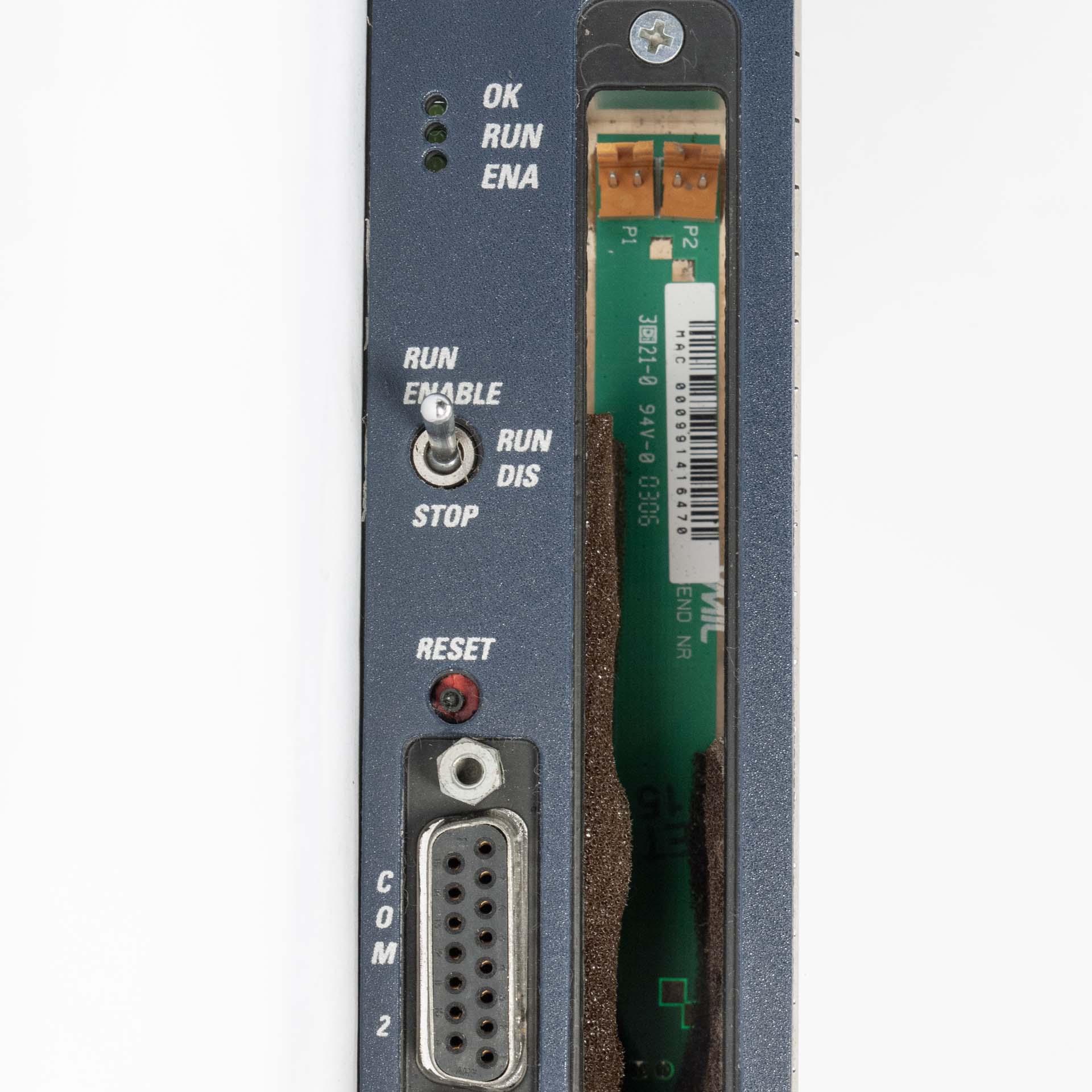

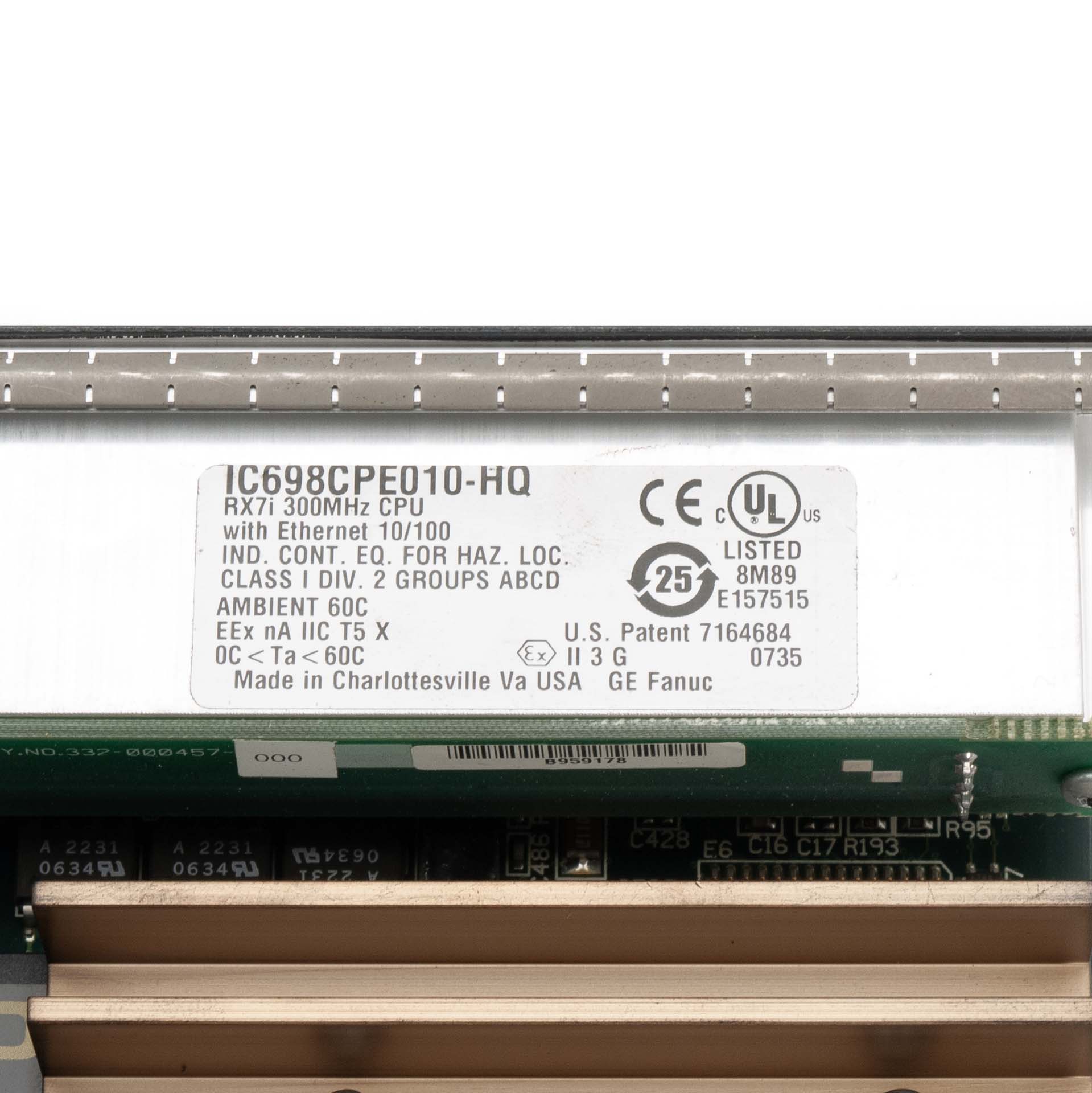

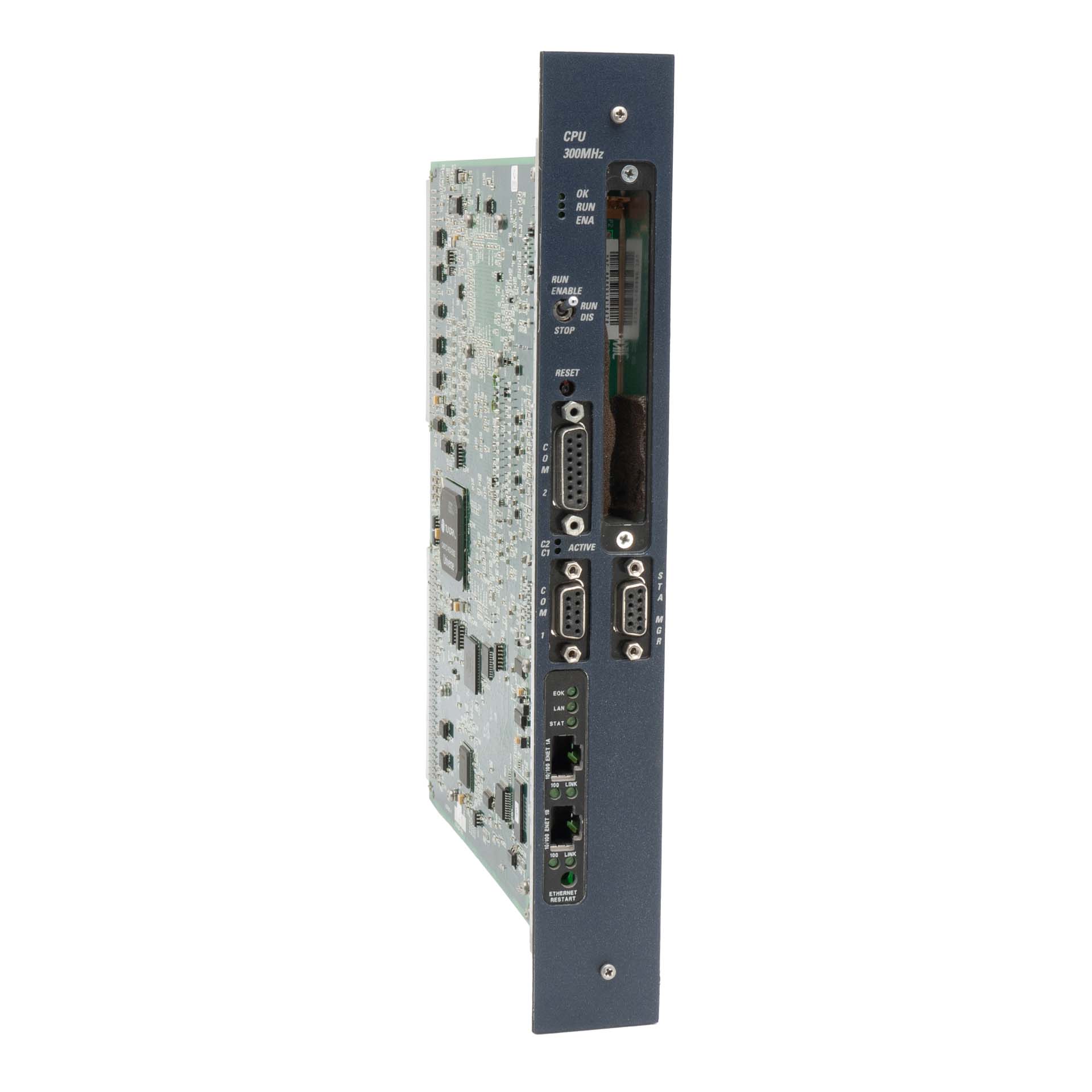

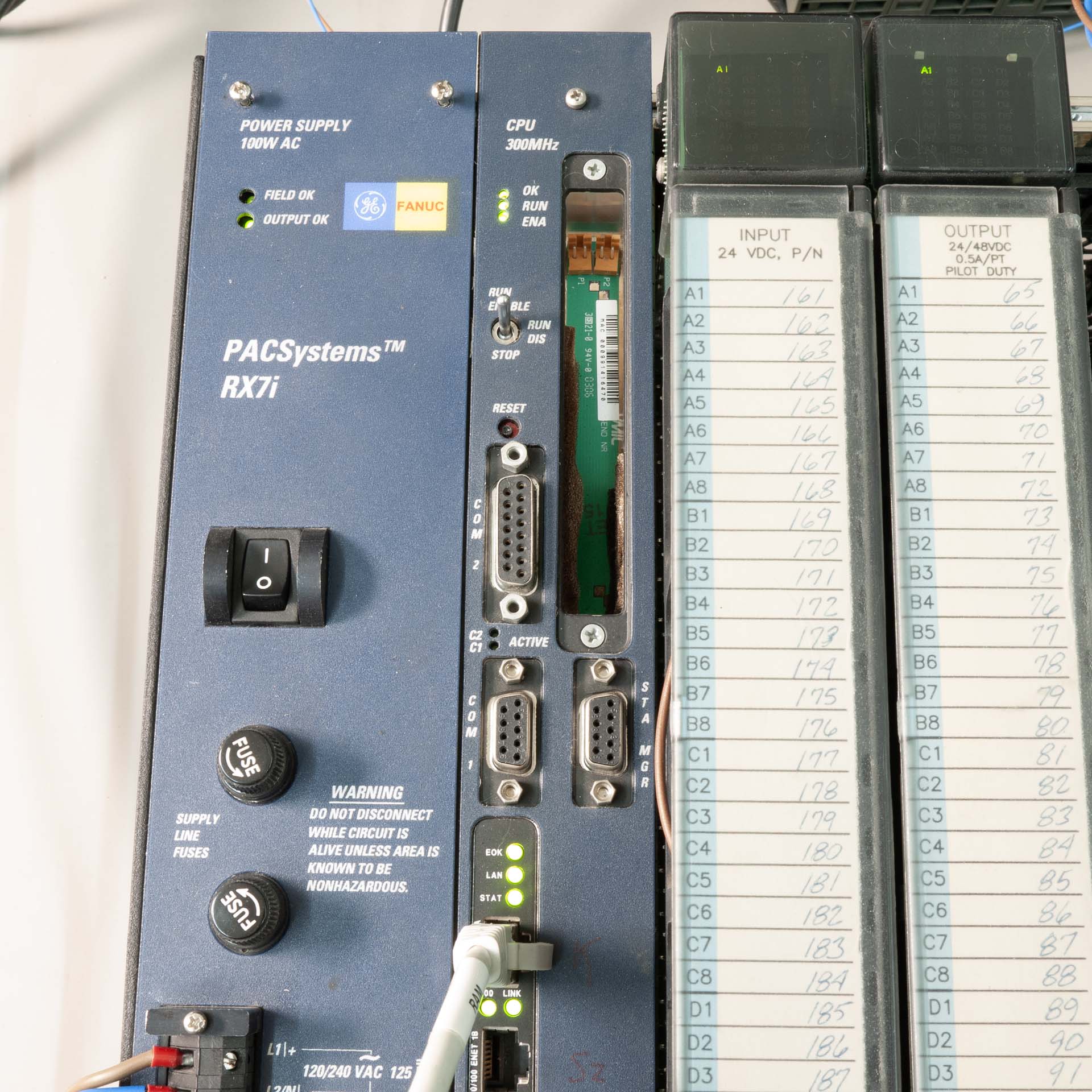

GE Fanuc IC698CPE010-HQ PACSystems RX7i CPU (Version 5.0)
Item Status: Tested and verified operational. Note: Ships without a CMOS backup battery.
Product Overview
The IC698CPE010-HQ is a robust Central Processing Unit designed for the GE Fanuc (Emerson) PACSystems RX7i platform. Utilizing a VME64 backplane interface, this module is engineered to handle complex, real-time industrial control algorithms. It is driven by a 300 MHz Intel Celeron microprocessor, providing standard Boolean execution speeds of 0.33 ms per 1000 contacts and native floating-point computational support.
Technical Specifications
- Processor Type: Intel Celeron, 300 MHz
- Memory Capacity: 10 MB battery-backed user RAM; 10 MB non-volatile Flash (NVRAM)
- I/O Memory Allocation: 32 Kbits for discrete (%I / %Q) and up to 32 Kwords for analog (%AI / %AQ)
- Communications (Embedded):
- Two (2) 10/100 Mbps auto-sensing Ethernet ports (RJ45)
- Two (2) Serial ports (RS-232, RS-485)
- One (1) RS-232 Station Manager port
- Supported Protocols: Modbus/TCP, Modbus RTU Slave, Ethernet Global Data (EGD), SRTP, and SNP
- Maximum Program Blocks: 512 (up to 128 KB per block)
- Power Requirements: 3.2 Amps nominal from the +5 VDC bus
Testing & Installation Notes

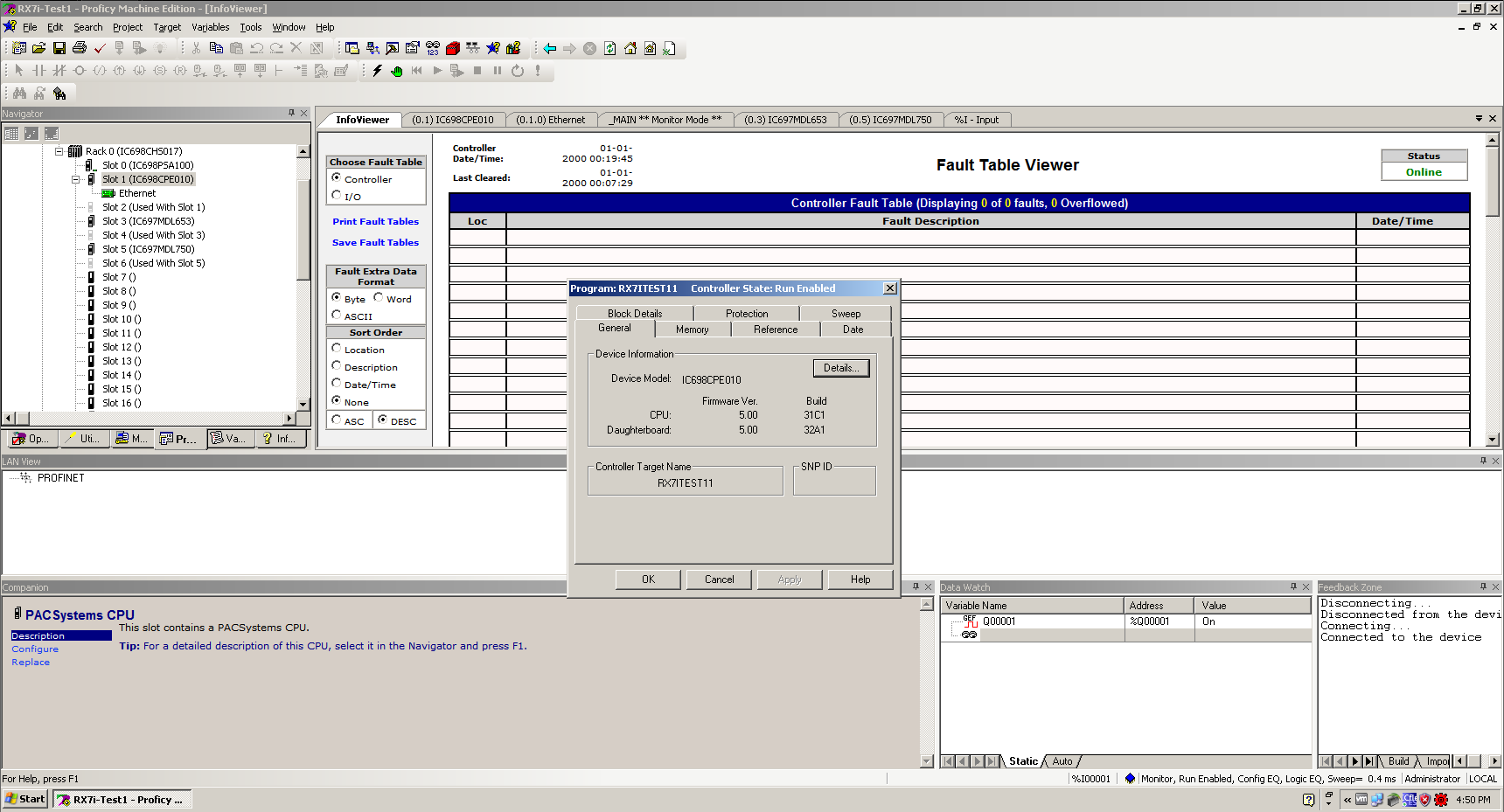

This IC698CPE010-HQ (Version 5.0) module has been strictly tested for proper backplane communication, logic execution, and port integrity. Because the battery is excluded, users must procure and install a compatible lithium battery to maintain the 10 MB RAM and program retention during power cycles. Programming, configuration, and firmware management are performed via Proficy Machine Edition Logic Developer PLC software.
Properties:
| Condition: | Used |
|---|
