National Instruments NI PXIe-5646R Vector Signal Transceiver (Rev G)

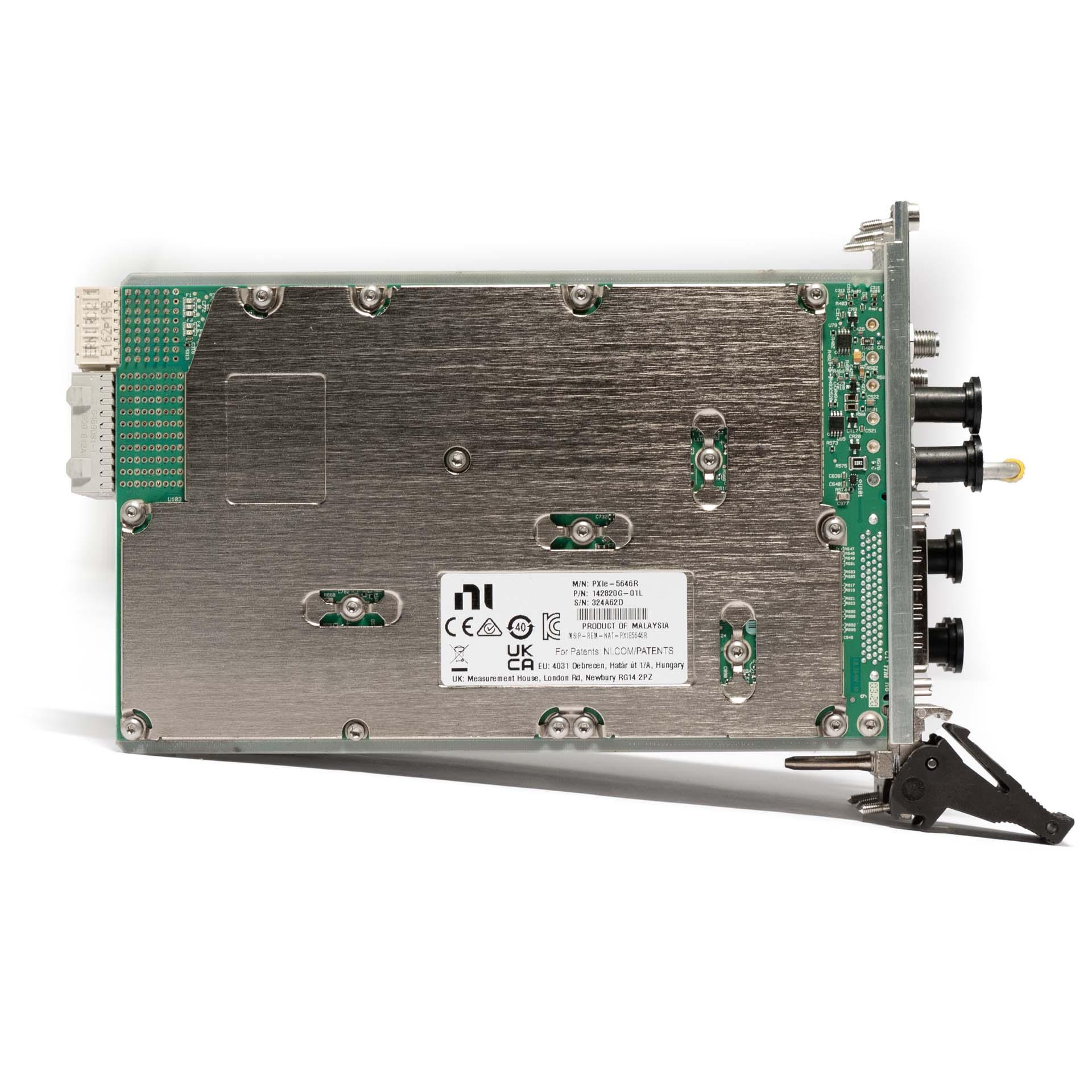

Up for sale is a professional-grade, fully verified NI PXIe-5646R Vector Signal Transceiver (VST). This module features a 6 GHz RF transmitter and receiver with 200 MHz of real-time bandwidth, paired with a user-programmable Xilinx Kintex-7 FPGA. This unit sports the updated modern NI grey branding/faceplate design.
The card has been comprehensively tested within a PXI Express chassis environment. It successfully passes all hardware self-tests inside NI Measurement & Automation Explorer (MAX) and has been validated with a live physical RF loopback test.
Hardware Specifications
- Model: NI PXIe-5646R
- Hardware Revision: Rev G

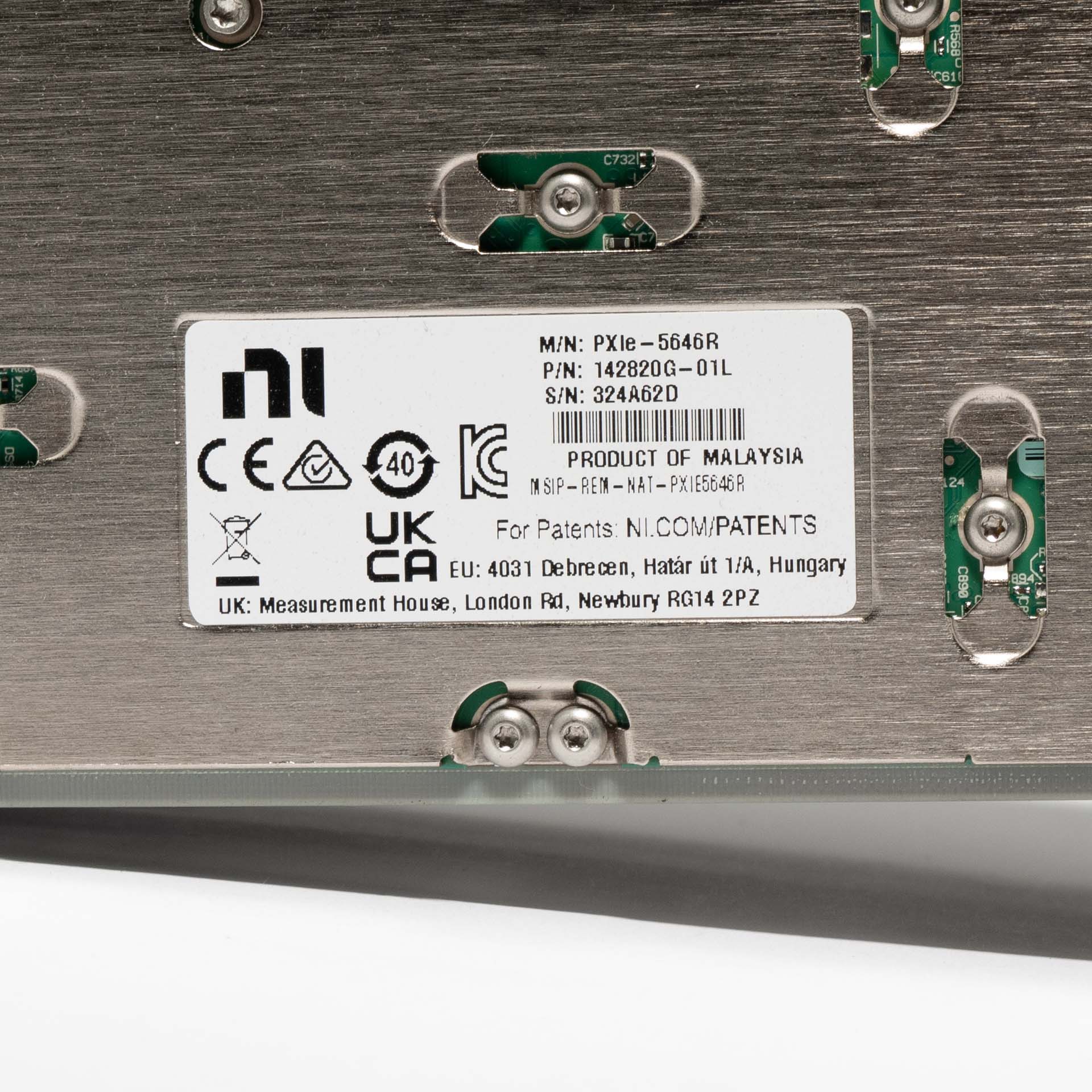

- Part Number: 142820G-01L
- Interface: PXI Express (PXIe)

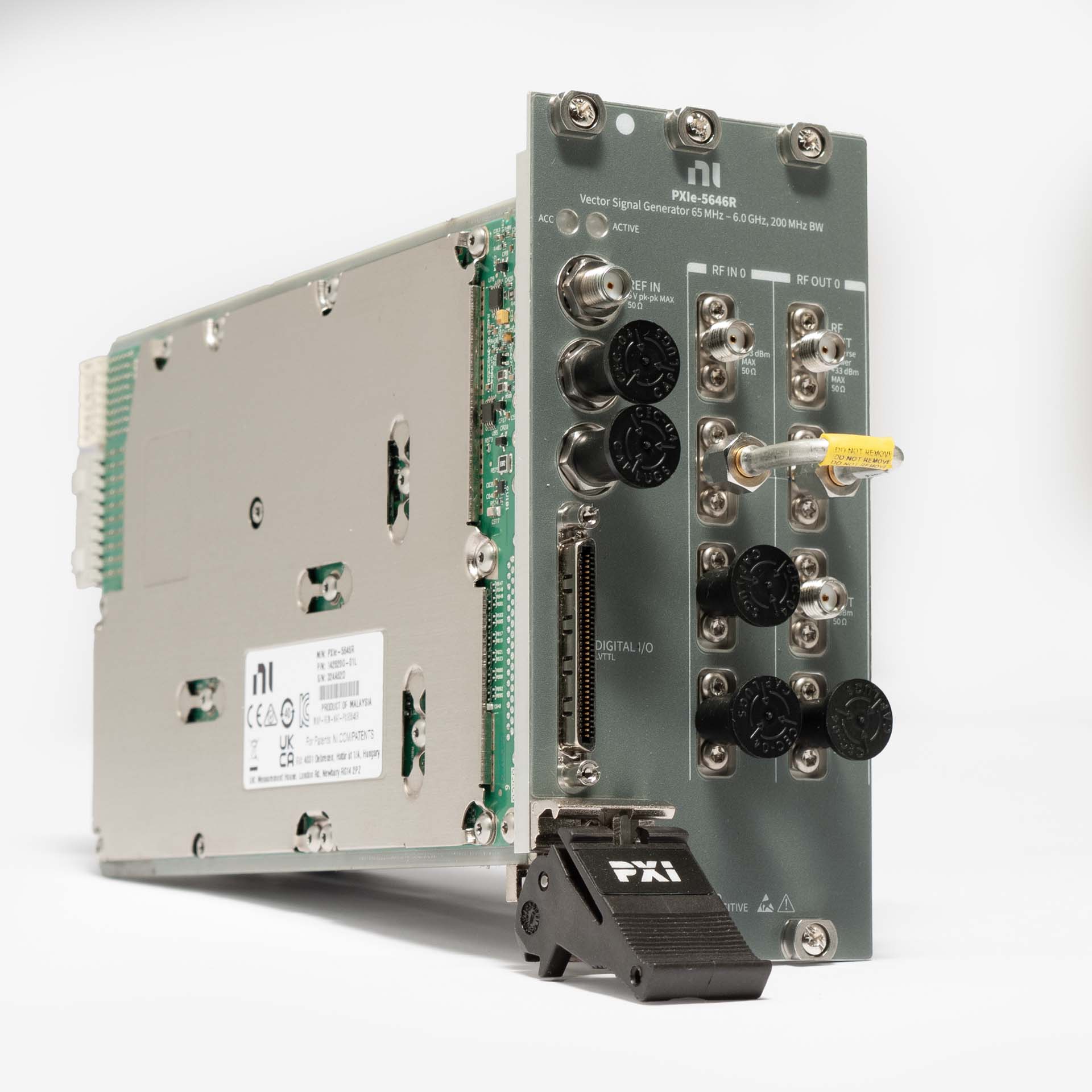

- Cosmetic Design: New NI Grey Faceplate Design
Diagnostic & Test Verification Details
This module was put through comprehensive testing to guarantee full performance and measurement accuracy:

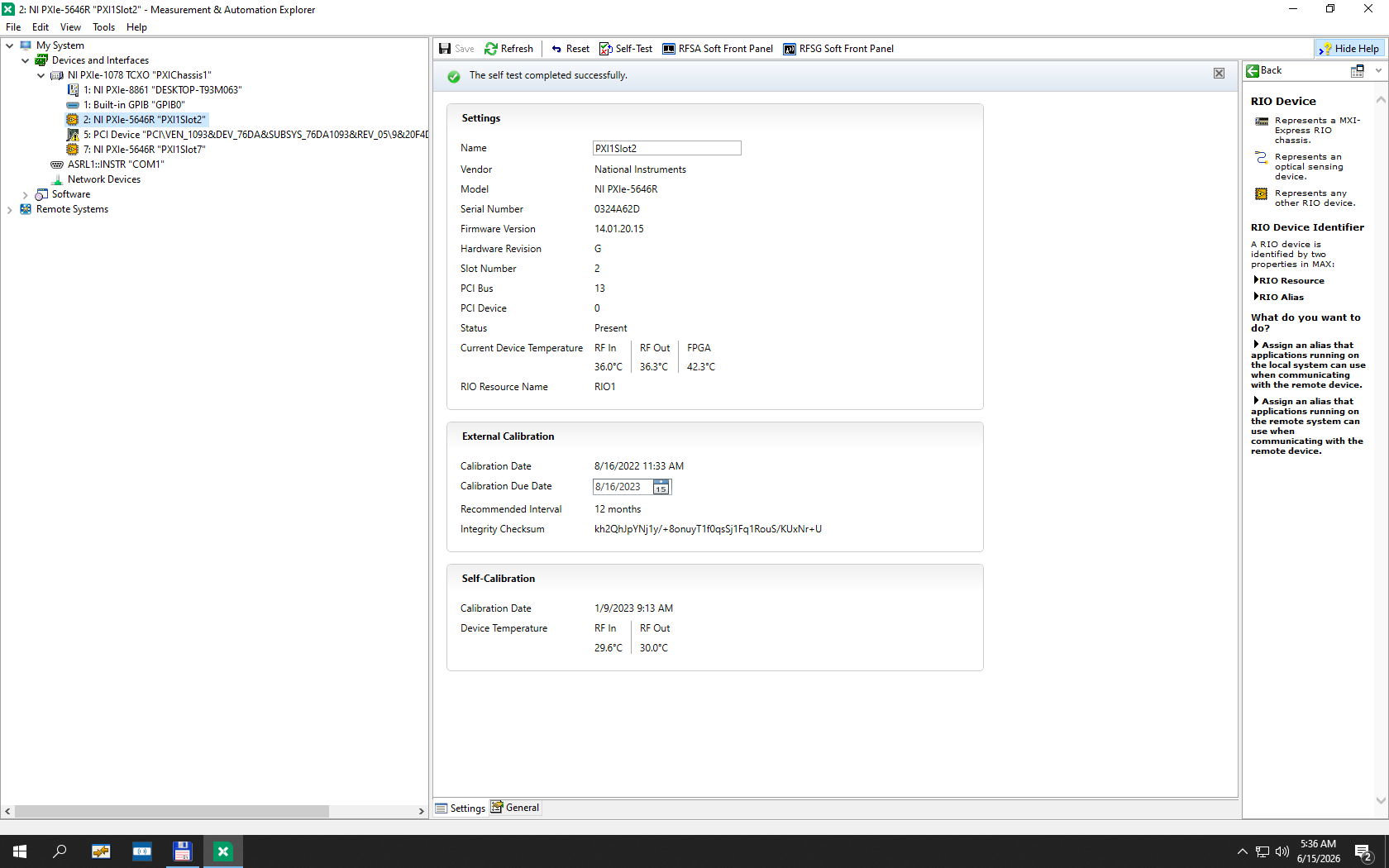

- NI MAX Self-Test: Completed successfully with zero errors.

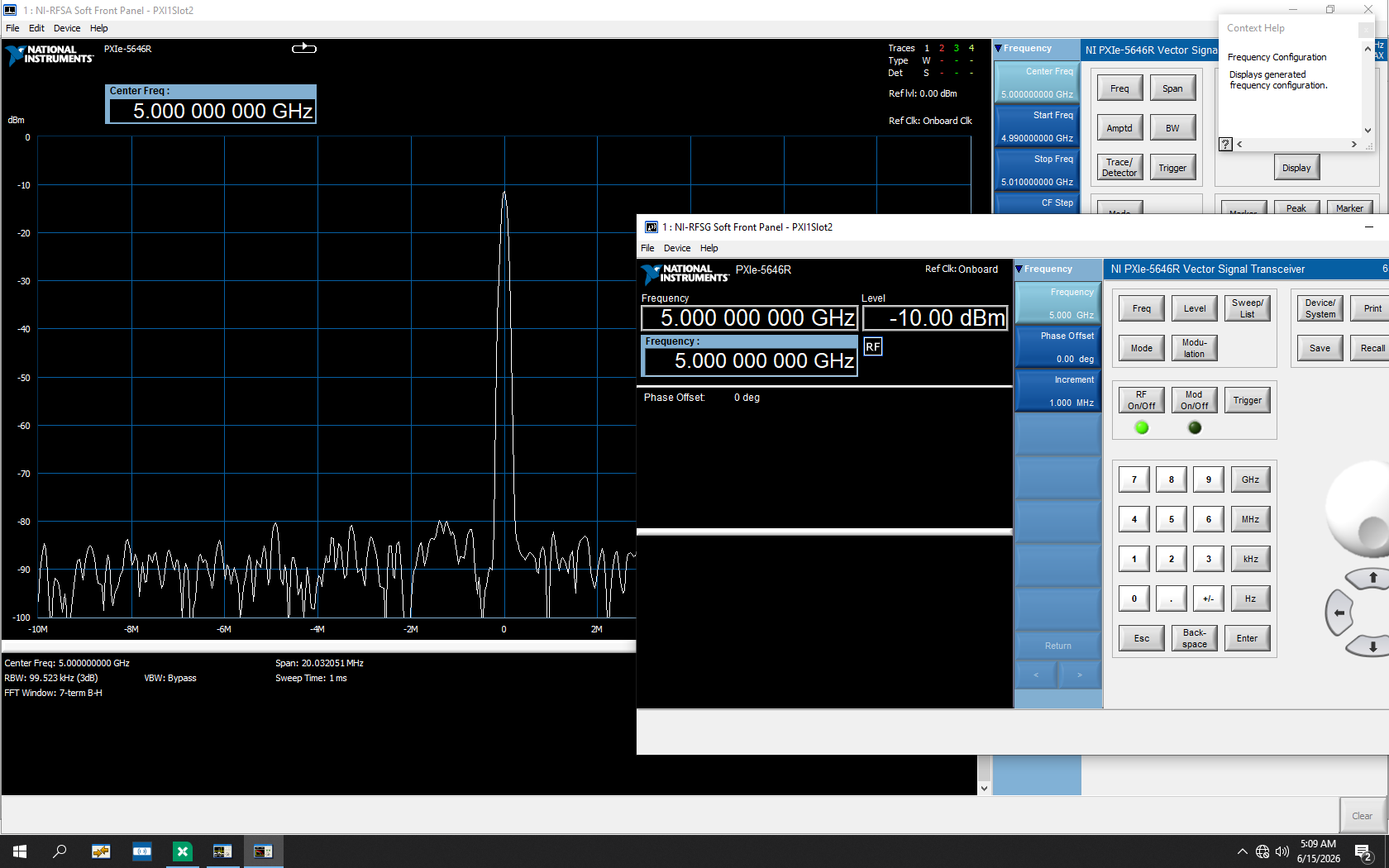

- RF Loopback Test Verified: A continuous wave (CW) loopback test was performed using the NI-RFSG and NI-RFSA Soft Front Panels.
- Test Parameters: Signal generated with an output level of -10.00 dBm. The analyzer captured a pristine, highly accurate corresponding peak, confirming excellent signal path integrity, generation, and analysis performance.
- Thermal Integrity: Onboard temperature sensors show normal, stable operational profiles during testing
Condition & Guarantee
This module is pre-owned, in excellent visual and mechanical condition, and is ready for integration into your aerospace, defense, semiconductor, or wireless communication test systems.
3232
Properties:
| Condition: | Used |
|---|
