Rohde & Schwarz SFC Compact Modulator 2115.3510K02-100905-QR DVB-T2, ISDB-T
€549.00
Condition: Used
Stock: 1
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "Rohde & Schwarz SFC Compact Modulator 2115.3510K02-100905-QR DVB-T2, ISDB-T"

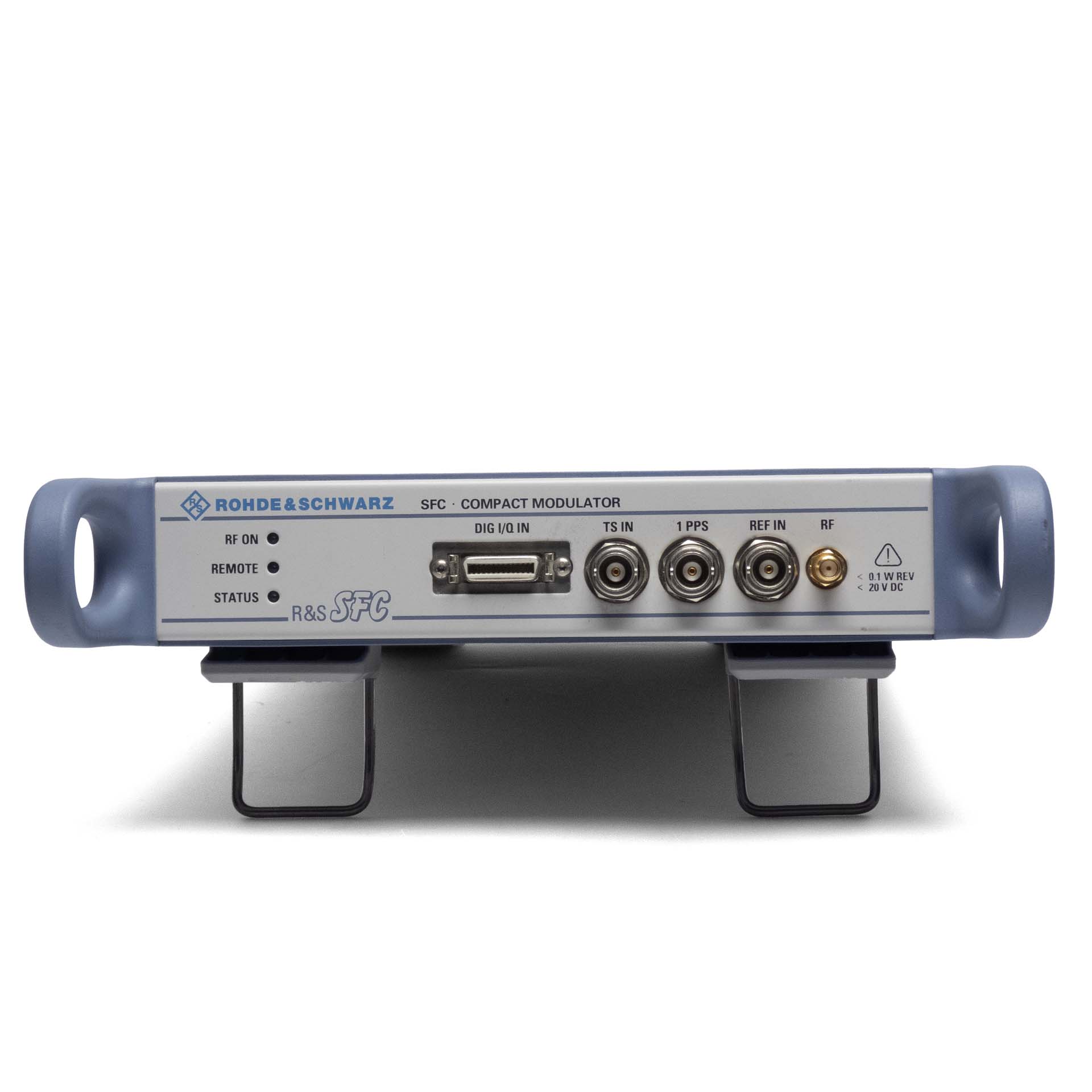

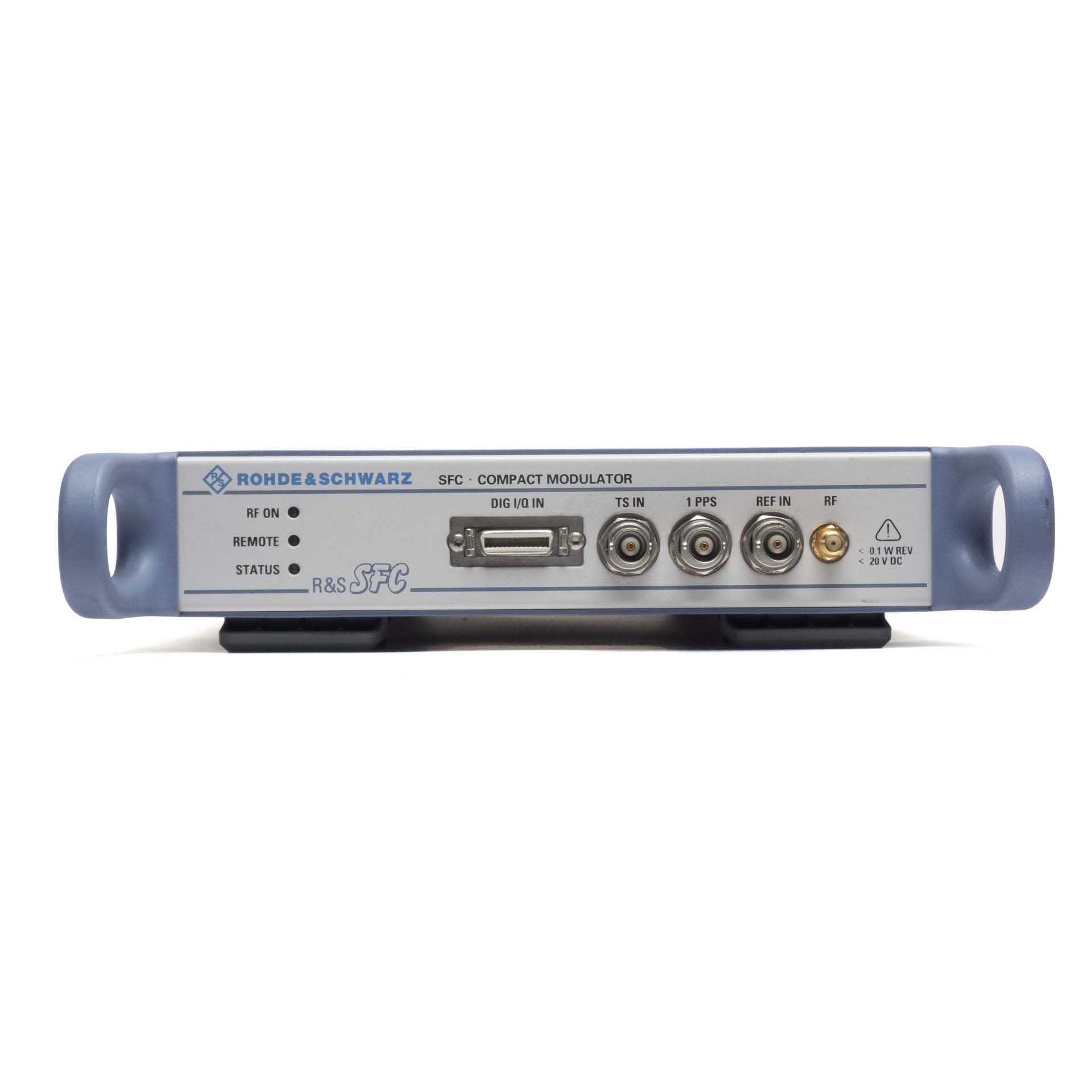

Rohde & Schwarz SFC Compact Modulator
Product Overview
This is a listing for a used Rohde & Schwarz SFC Compact Modulator. The unit has been powered on and tested, showing a total operation time of 58,611 hours and a power-on count of 142. It includes several active software options, including DVB-T2 and ISDB-T, and features the SFC-B15 extension board.

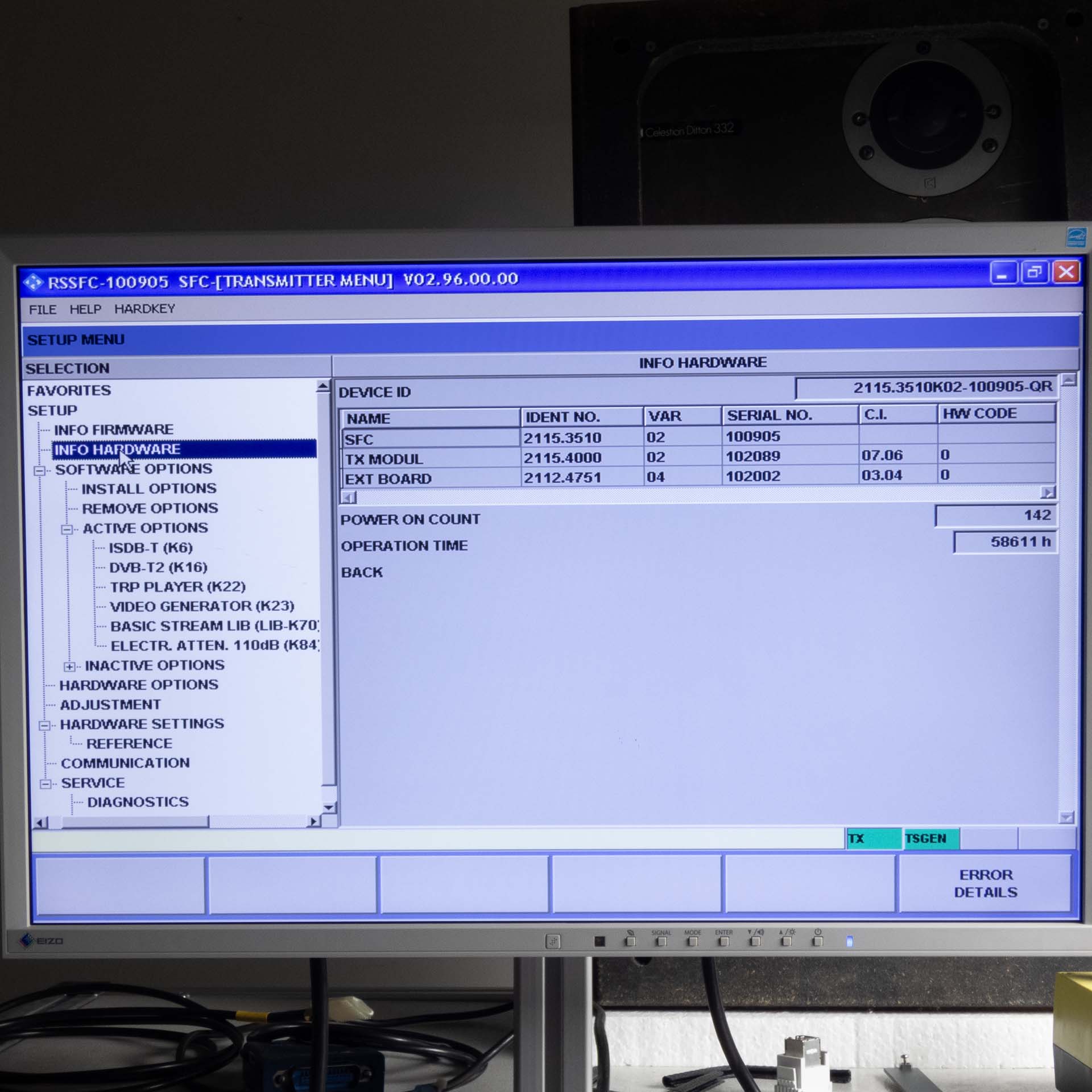

Hardware Information

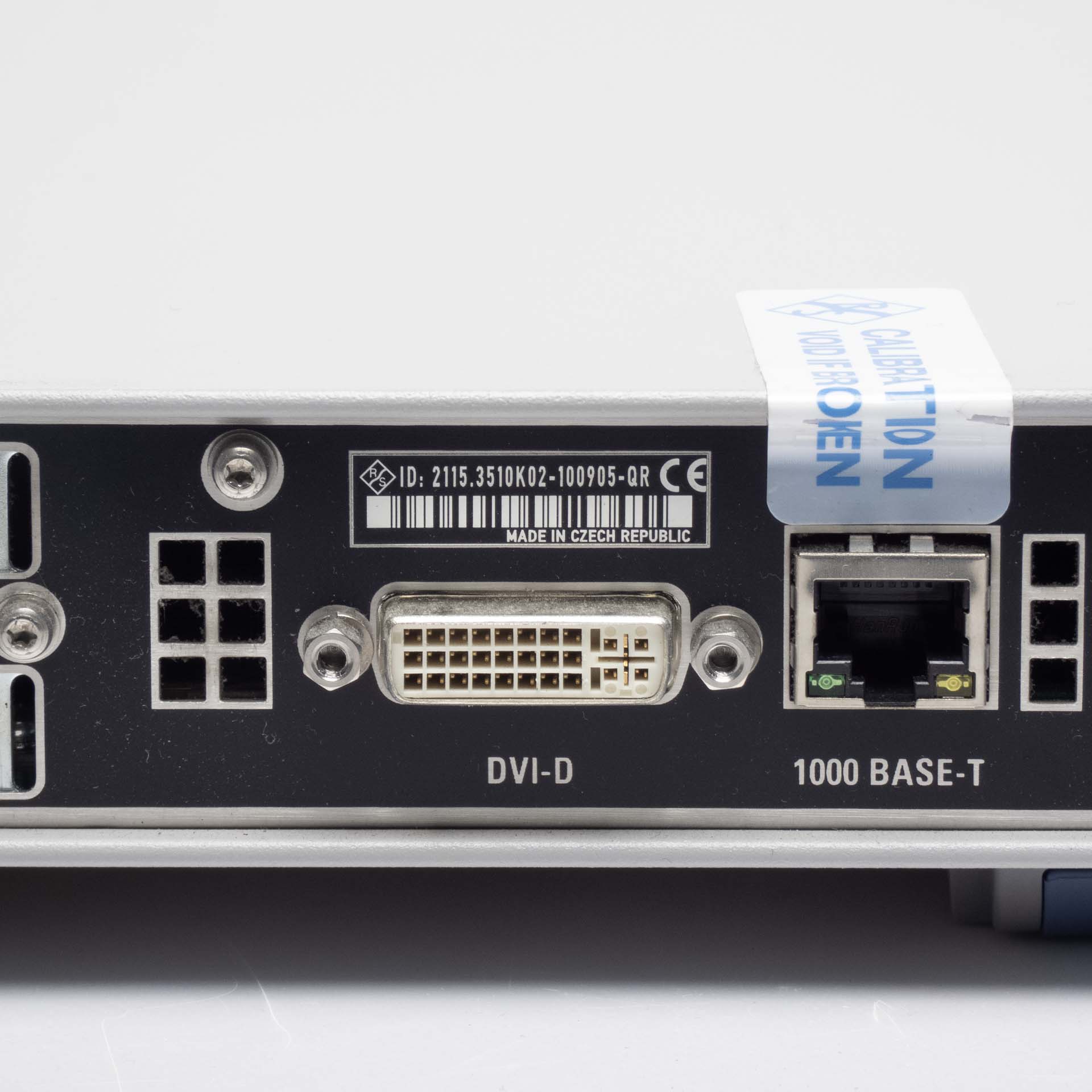

- Device ID: 2115.3510K02-100905-QR
- SFC Serial Number: 100905 (Ident No. 2115.3510, Var 02)
- TX Modul Serial Number: 102089 (Ident No. 2115.4000, Var 02)

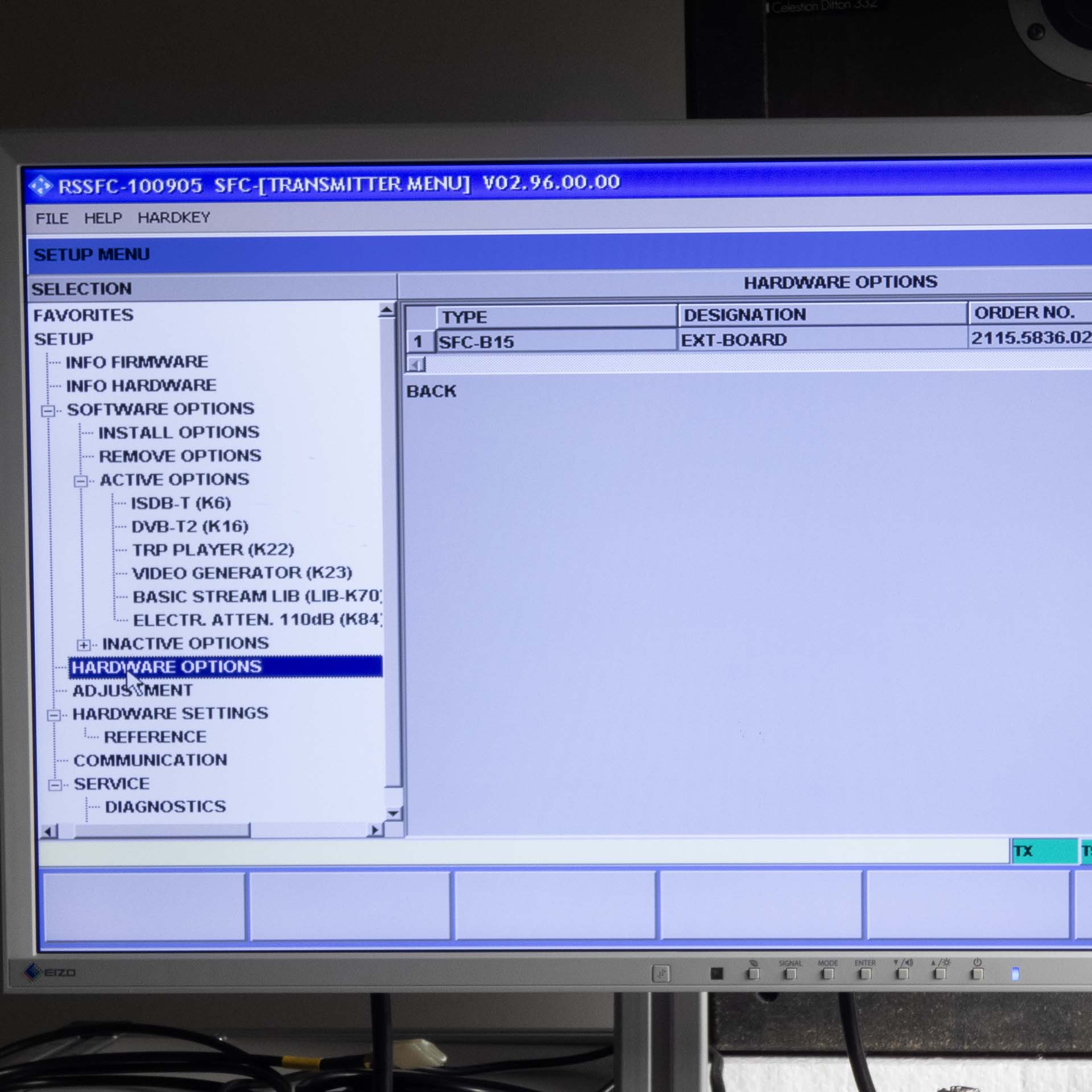

- Hardware Options: SFC-B15 EXT-BOARD (Order No. 2115.5836.02)
- Power On Count: 142
- Operation Time: 58611 h
Active Software Options
The following software options are currently installed and active on the device:
- ISDB-T (K6)
- DVB-T2 (K16)
- TRP PLAYER (K22)

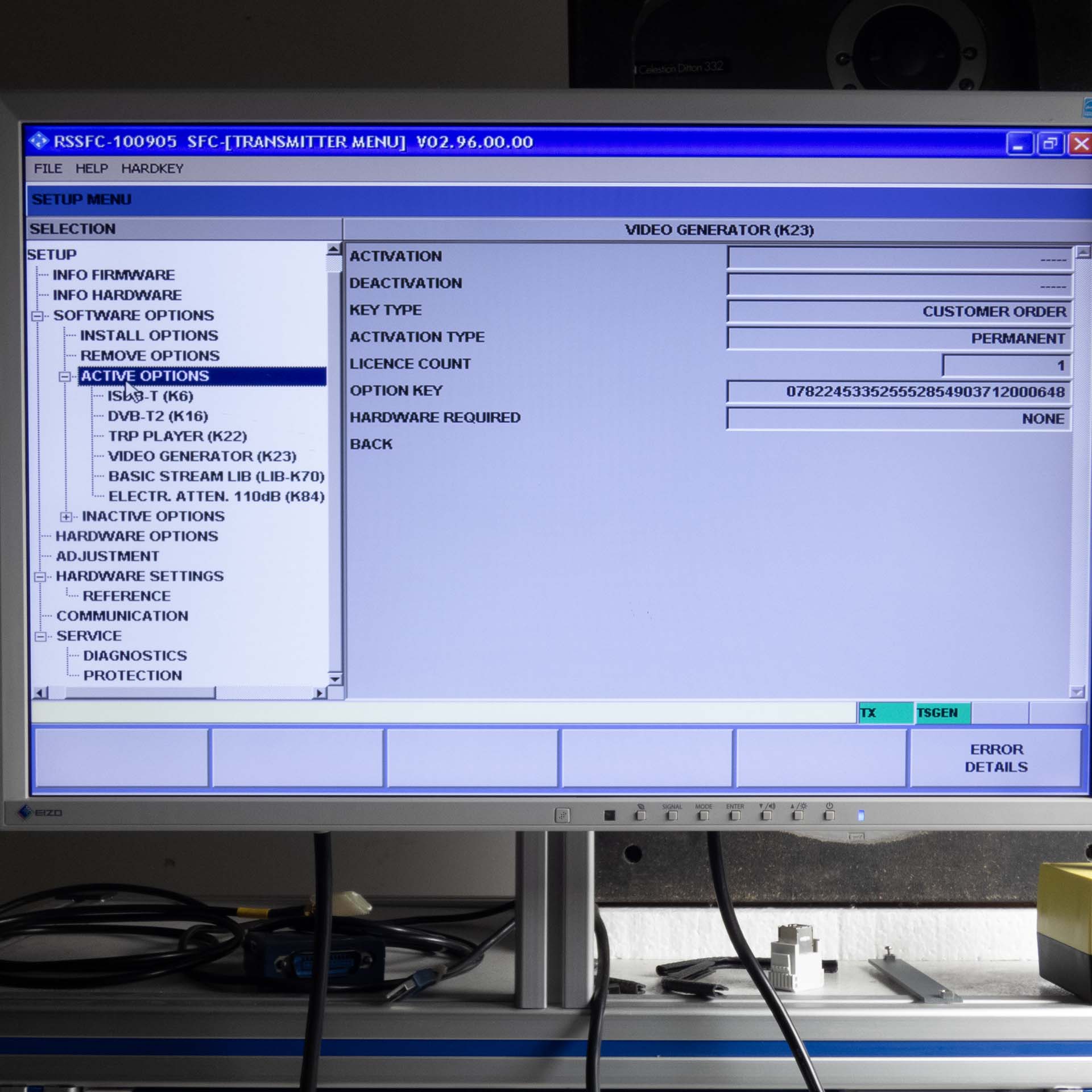

- VIDEO GENERATOR (K23) - Permanent License
- BASIC STREAM LIB (LIB-K70)
- ELECTR. ATTEN. 110dB (K84)

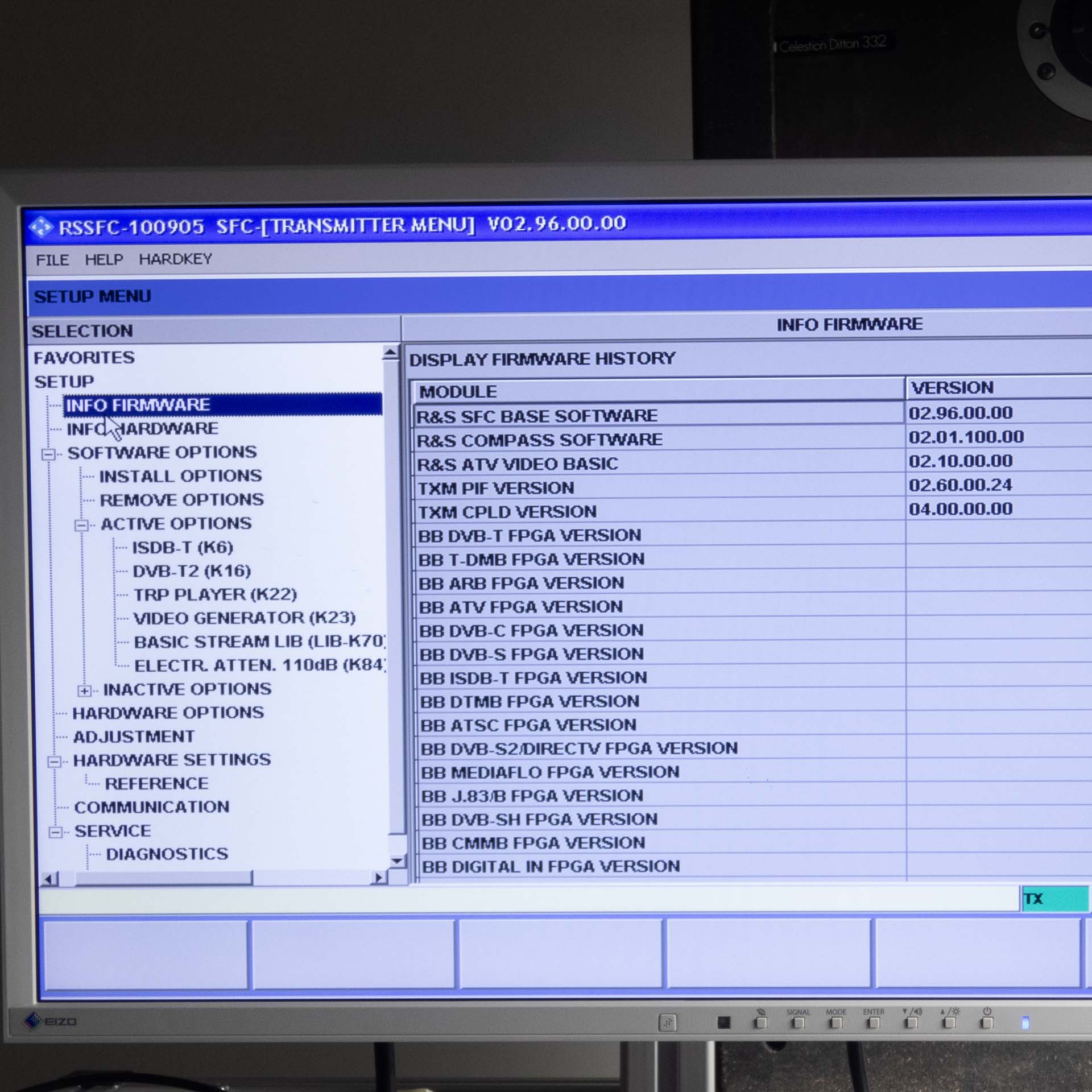

Firmware Versions
- R&S SFC Base Software: Version 02.96.00.00
- R&S Compass Software: Version 02.01.100.00
Test Results & Operational Verification
The unit has been tested in our lab with the following parameters confirmed:

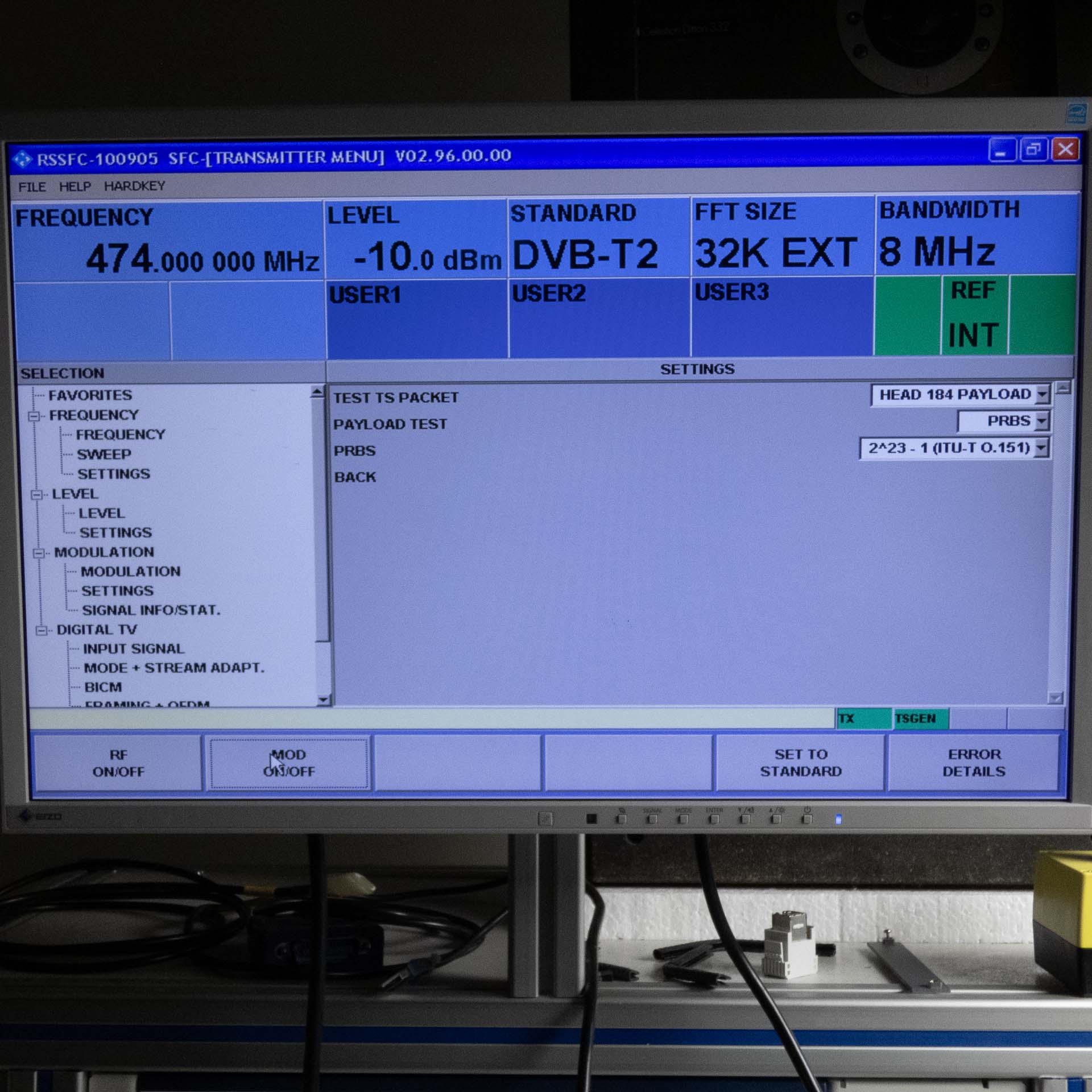

- The transmitter menu indicates successful generation of a DVB-T2 signal at a center frequency of 474.000 000 MHz with a level of -10.0 dBm and an 8 MHz bandwidth.

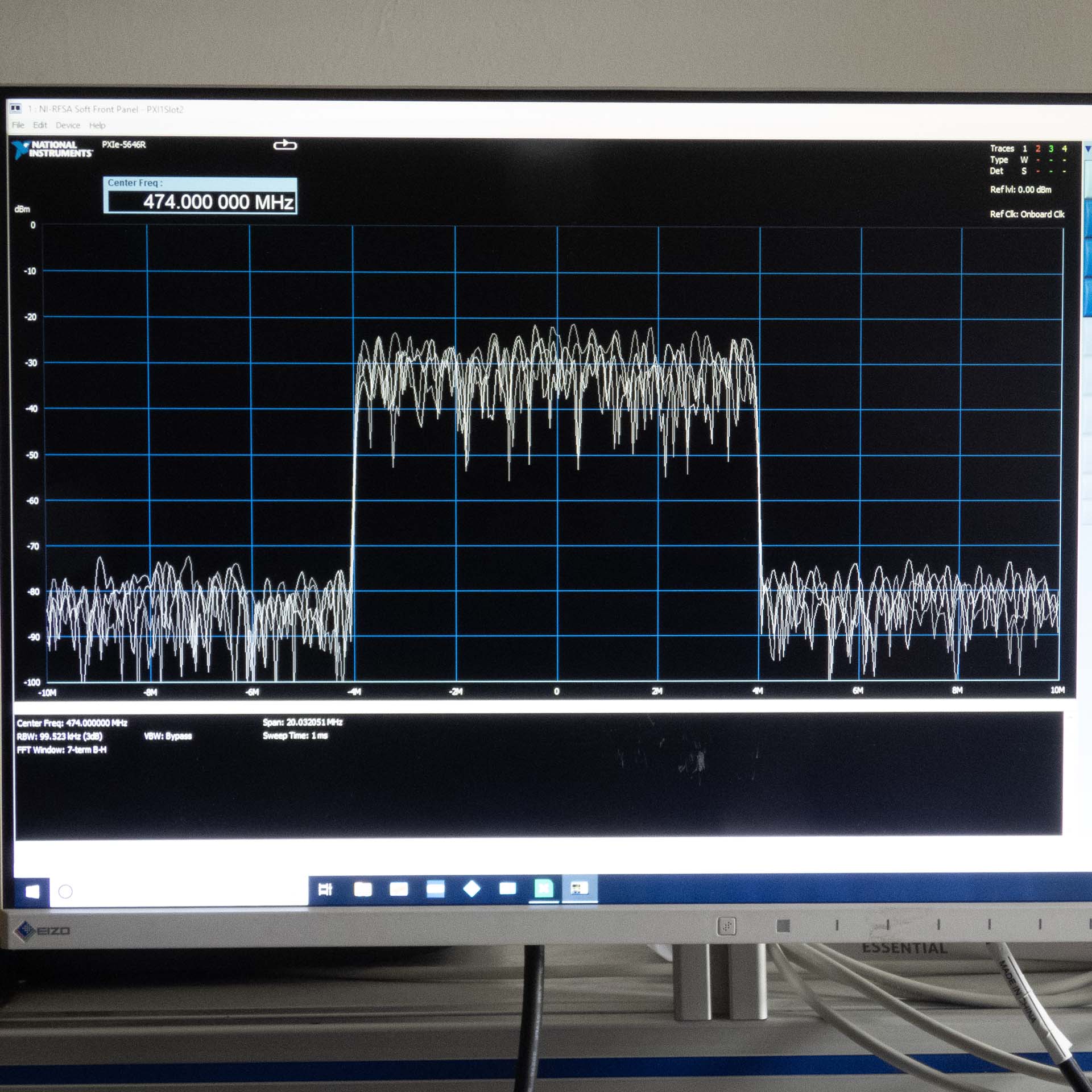

- Spectrum analyzer testing confirms RF output at the 474.000 000 MHz center frequency.
- The captured spectrum clearly shows an 8 MHz wide DVB-T2 signal block.

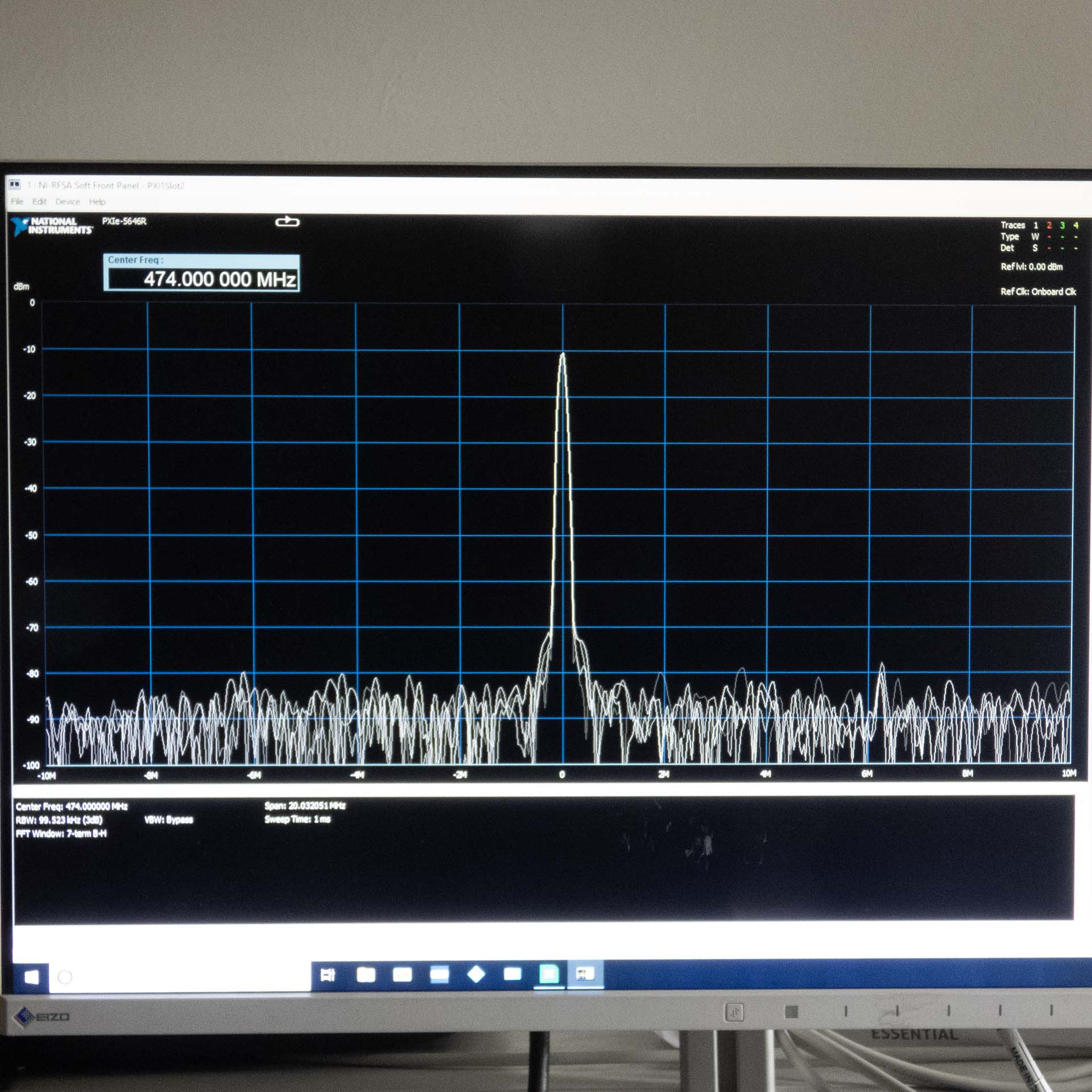

- Narrowband/carrier output has also been verified at the 474 MHz frequency.
Properties:
| Condition: | Used |
|---|
