Wago 750-352
€75.00
Available, delivery time: 2-5 days
Condition: Used
Stock: 4
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "Wago 750-352"

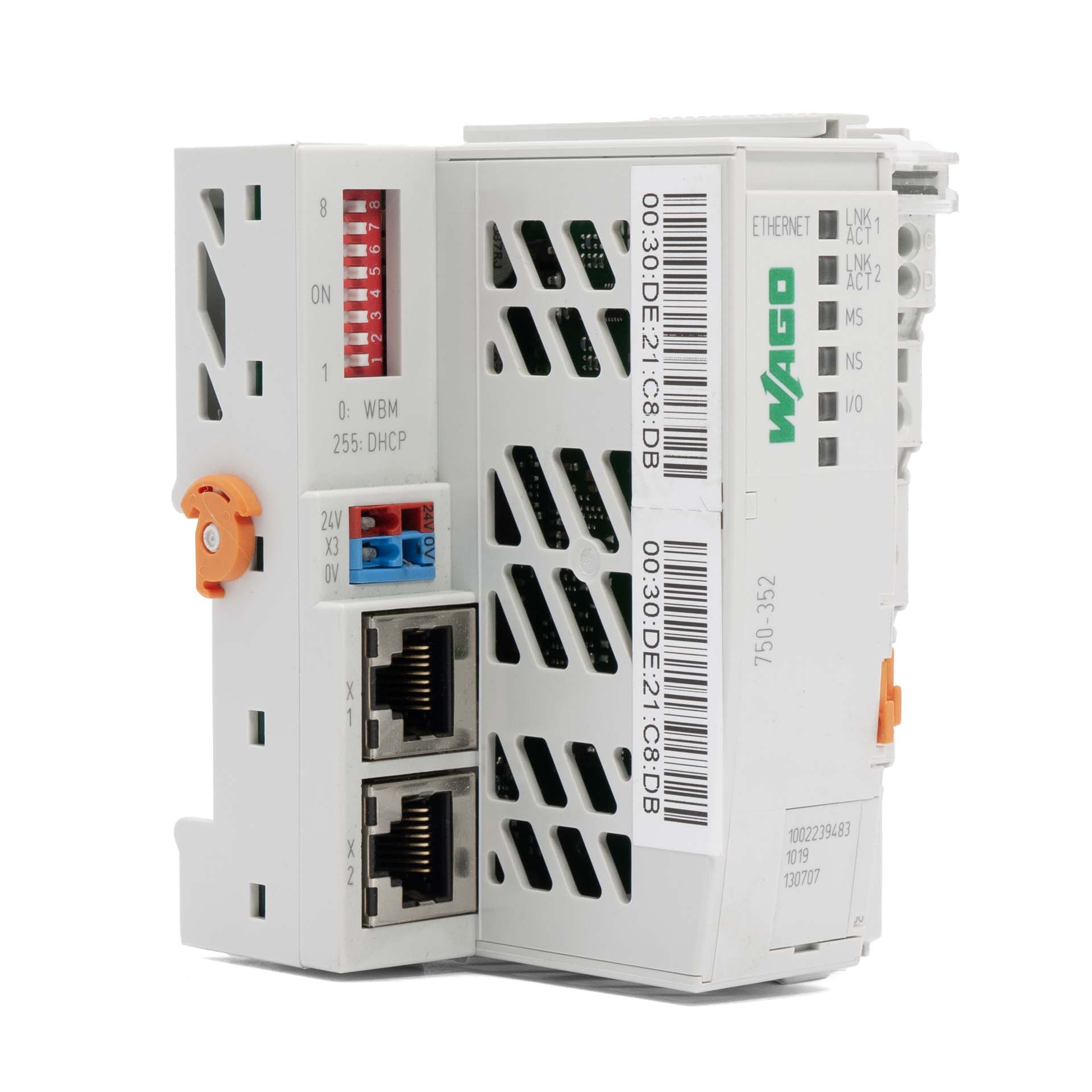

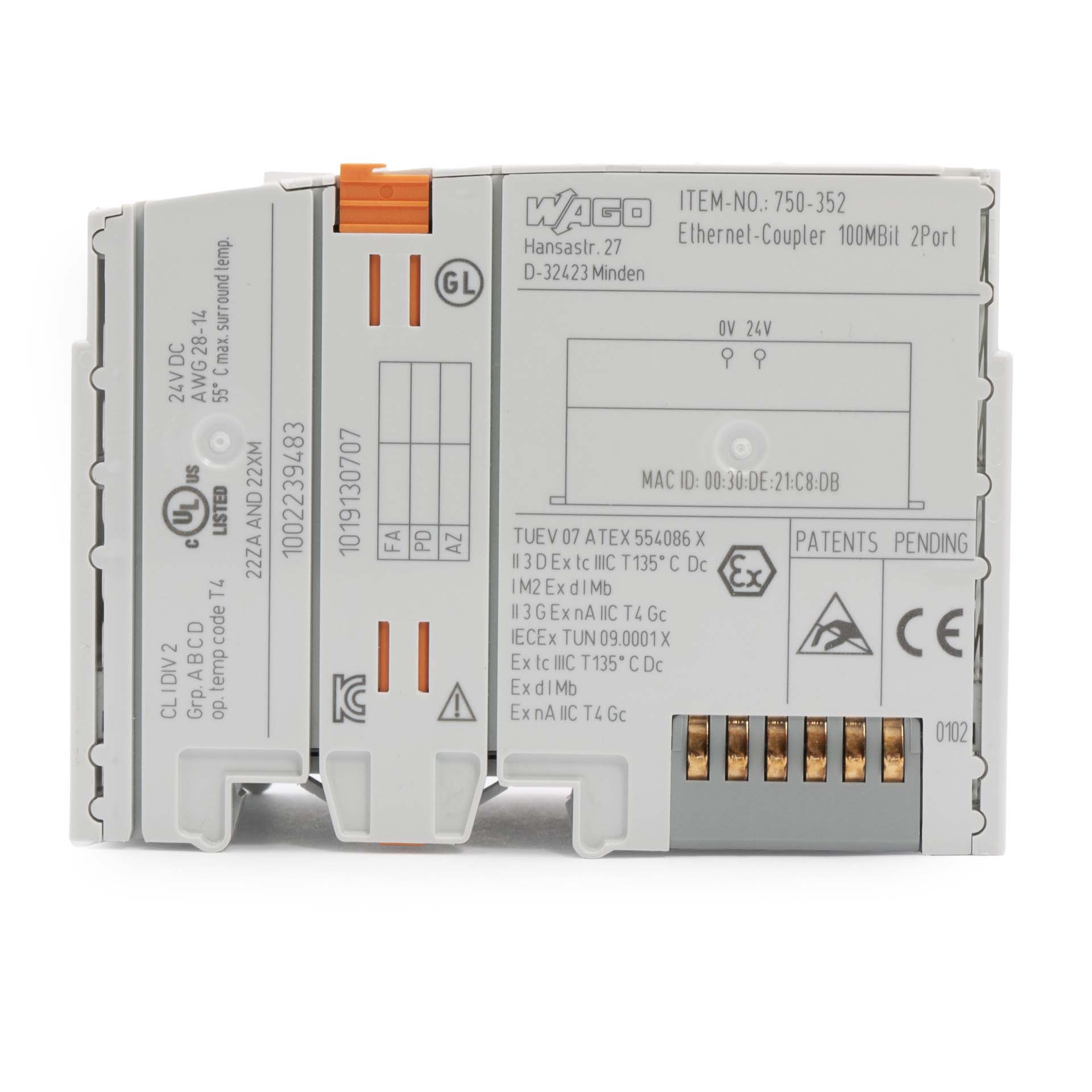

WAGO 750-352 ETHERNET Fieldbus Coupler

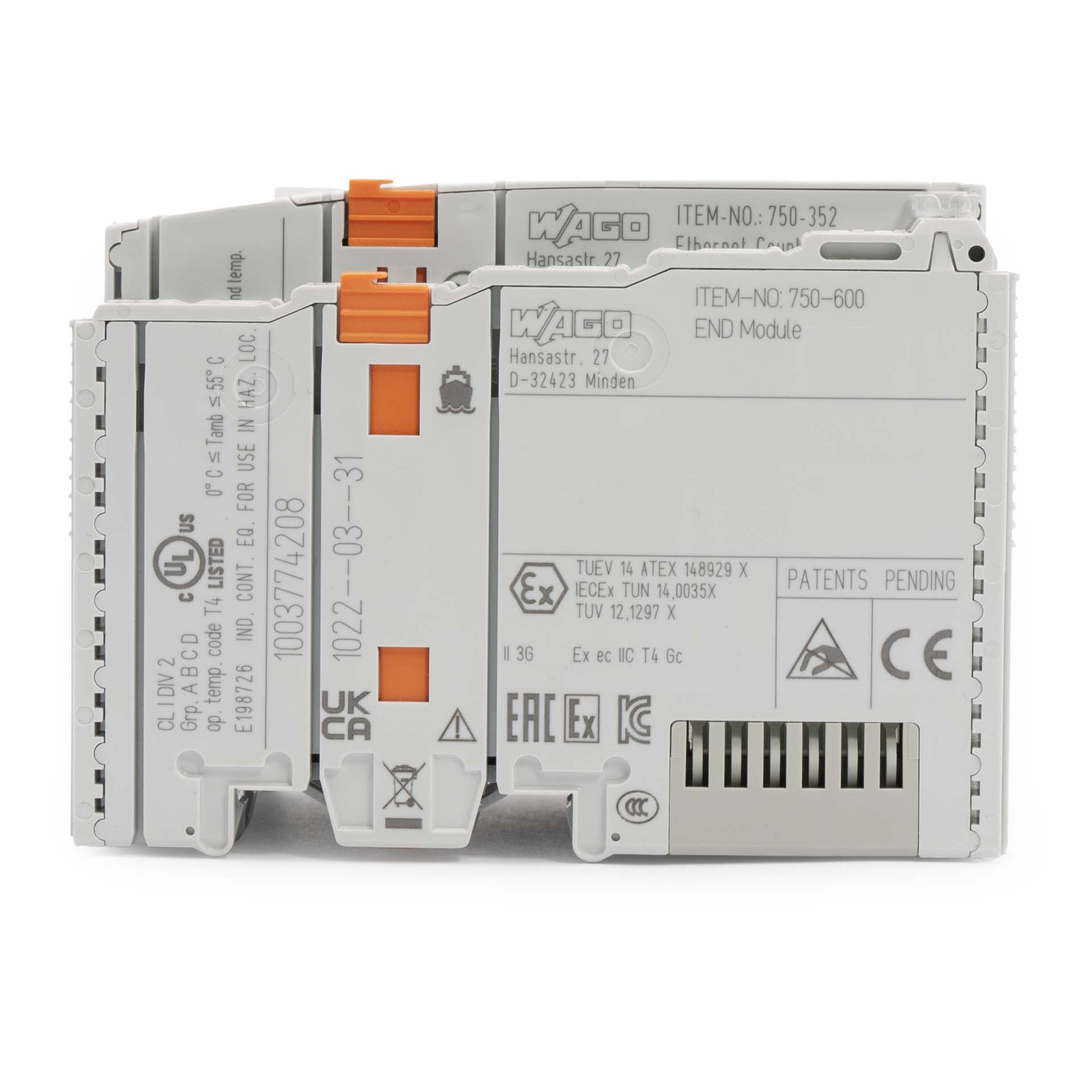

Condition: Used, excellent working condition, with 750-600 End module
The WAGO 750-352 ETHERNET fieldbus coupler connects the WAGO-I/O-SYSTEM to the ETHERNET network. It automatically configures, creating a local process image which may include analog, digital, or specialty modules. Analog and specialty module data is sent via words and/or bytes, while digital data is sent bit by bit.
Key Features
- Supports a variety of standard network protocols (HTTP, BootP, DHCP, DNS, SNTP, SNMP, FTP).
- Two RJ-45 ports with an integrated 2-port switch, allowing easy line network topologies without additional hubs or switches.
- Auto-negotiation and Auto-MDI/MDI-X supported.
- Integrated web server provides configuration options and status information.
Technical Specifications
- Communication: Modbus (TCP, UDP), ETHERNET
- Baud Rate: 10/100 Mbit/s
- Transmission Medium: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
- Number of Modules per Node (max): 64
- Input and Output Process Image (max): 1020 words/1020 words
- System Supply Voltage: 24 VDC (-25 % ... +30 %)
- Input Current (System Supply): 500 mA (max)
- Total Current (System Supply): 1700 mA
- Field Supply Voltage: 24 VDC (-25 % ... +30 %)
- Connection Technology: CAGE CLAMP®
Properties:
| Condition: | Used |
|---|
