Wago 750-362
€115.00
Available, delivery time: 2-5 days
Condition: Used
Stock: 6
Shipped from Slovakia
Shipping cost from: Loading
Shipping prices are calculated at checkout
Product information "Wago 750-362"

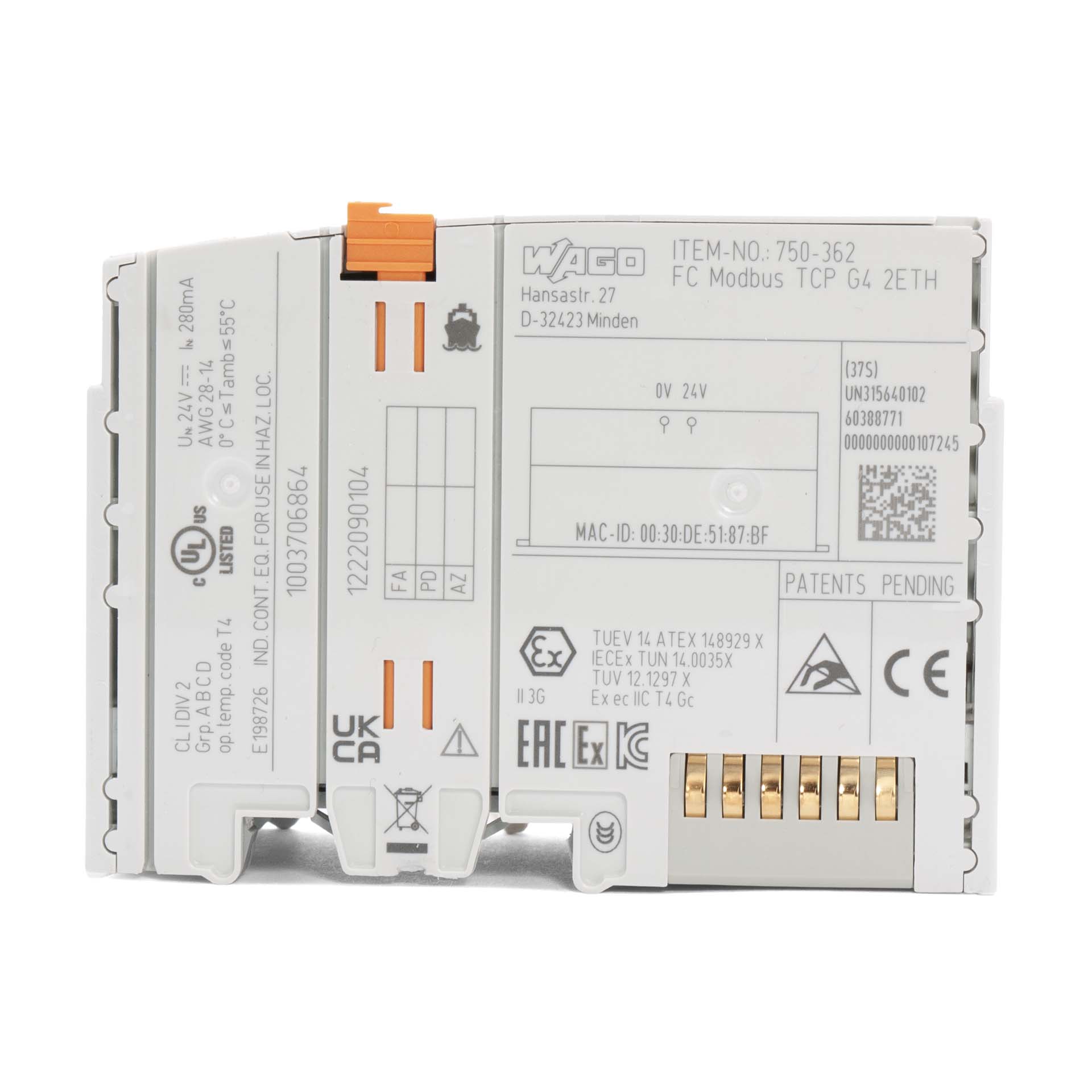

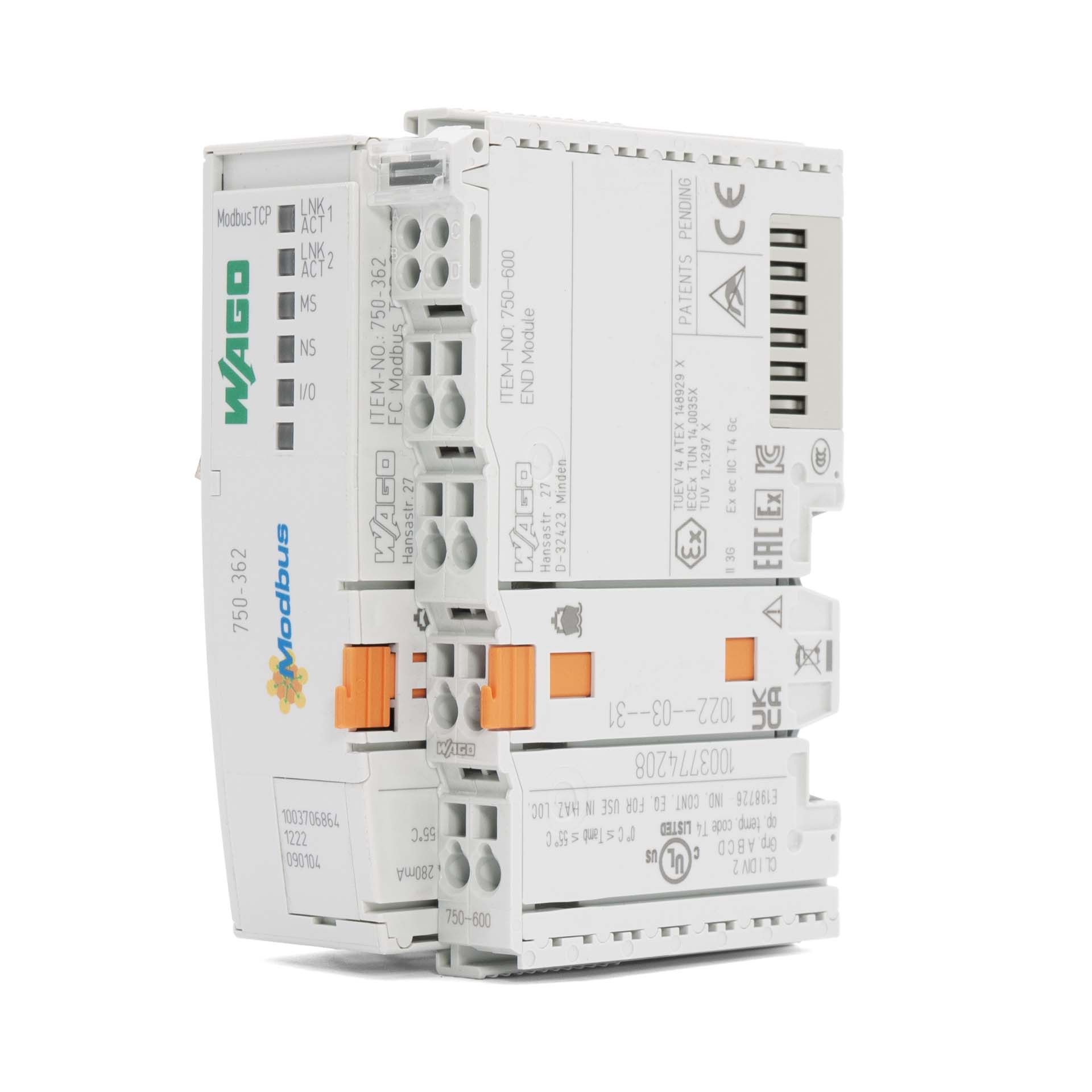

WAGO 750-362 ETHERNET Fieldbus Coupler
Condition: Used, excellent working condition. May show minor cosmetic signs of previous installation, but functionality is strictly uncompromised.
The WAGO 750-362 is a 4th-generation Modbus TCP/UDP Fieldbus Coupler designed to connect the modular WAGO-I/O-SYSTEM to ETHERNET. It detects all connected I/O modules and seamlessly creates a local process image. With increased performance over previous generations, this coupler is designed for fast startup and dependable fieldbus communication in MODBUS networks.
Key Features
- Supports a wide variety of standard Ethernet protocols including HTTP(S), BootP, DHCP, DNS, SNTP, (S)FTP, and SNMP.

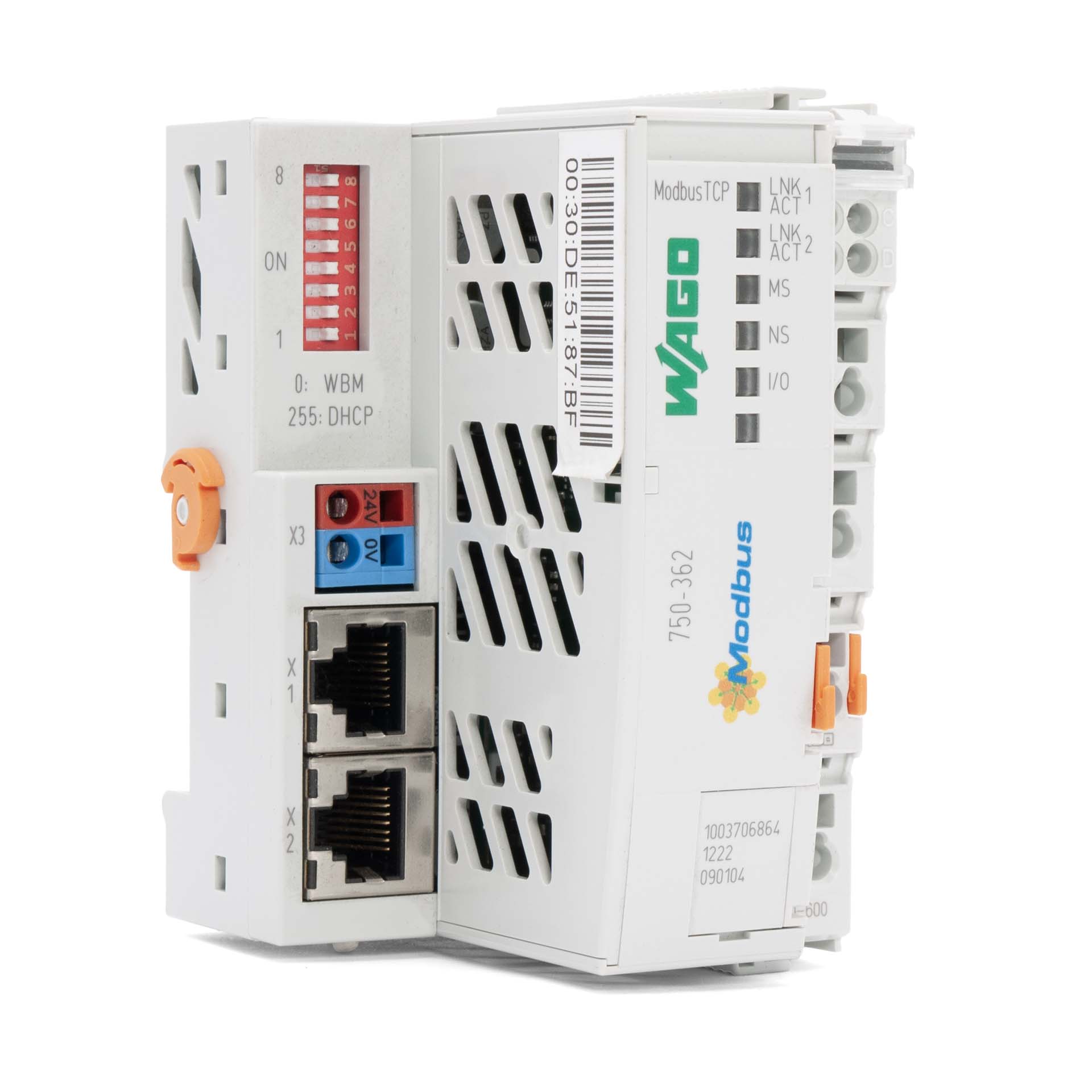

- Two RJ-45 interfaces with an integrated switch allow the fieldbus to be wired in a line topology, eliminating the need for external network switches or hubs.
- Auto-negotiation and Auto-MDI/MDI-X supported on both interfaces.
- Built-in DIP switch for quick configuration of the last byte of the IP address and assignment method.
- Integrated web server provides advanced user configuration options and real-time status diagnostics.
Technical Specifications
- Communication: Modbus (TCP, UDP), ETHERNET
- Baud Rate: 10/100 Mbit/s
- Transmission Medium: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
- Number of Modules without a Bus Extension (max): 64
- Number of Modules per Node (max): 250
- Input and Output Process Image (max): 1020 words / 1020 words
- System Supply Voltage: 24 VDC (-25 % ... +30 %)
- Current Consumption (5 V System Supply): 350 mA
- Total Current (System Supply): 700 mA
- Connection Technology: CAGE CLAMP®
Properties:
| Condition: | Used |
|---|
